Pyroelectric Sensors: Principles, Applications, and Innovations

Pyroelectric sensors are revolutionizing how we detect and measure heat and motion across industries. From powering smart security systems to enabling precise laser measurements, these versatile sensors offer unmatched efficiency and adaptability. In this guide, we’ll explore their principles, applications, and the latest advancements, helping you unlock their potential for your projects or research.

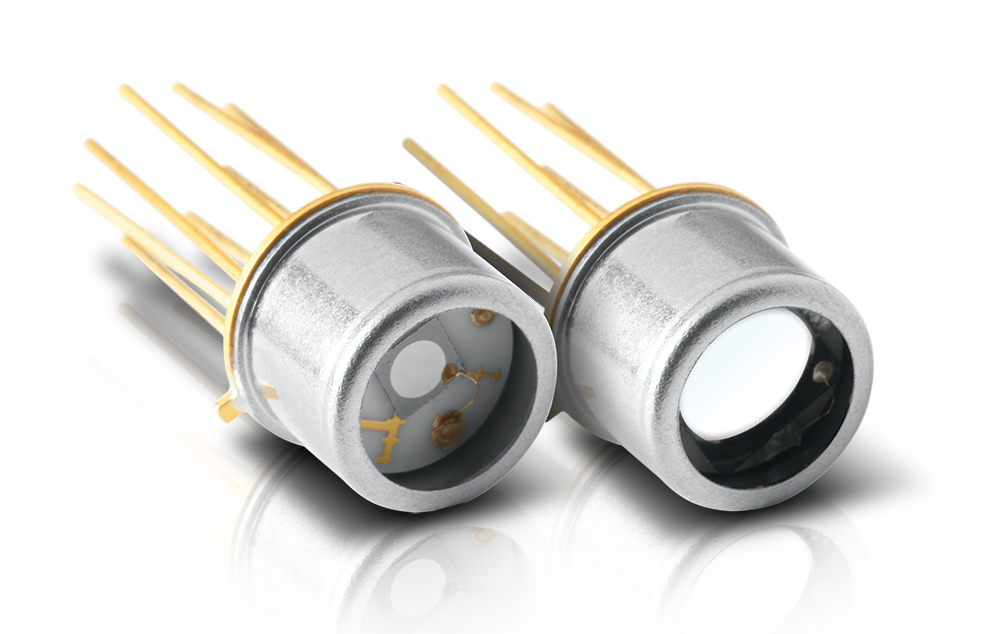

This guide is brought to you by Gentec-EO – World Leader in Light Detection and Characterization Technologies. Depicted above is their QS9-THZ-BL Discrete Pyroelectric Sensor offering broadband measurement up to 30THz in a compact TO5 or TO8 package.

1. Introduction

Pyroelectric sensors are specialized devices that leverage the pyroelectric effect — an inherent property of certain crystalline materials — to generate an electrical signal in response to changes in temperature or infrared radiation. These sensors are critical in modern technology, enabling precise detection of heat and motion without requiring physical contact.

Their significance spans multiple industries: in security, they power advanced motion detectors; in healthcare, they enable non-invasive thermal imaging and diagnostics; and in industrial applications, they ensure safety through flame detection and environmental monitoring. Their unique combination of high sensitivity, compact size, and energy efficiency makes them indispensable in designing cutting-edge systems.

In this article, we look into their underlying principles, explore their wide-ranging applications, and highlight the latest innovations that are shaping their future use.

2. What Are Pyroelectric Sensors?

Pyroelectric sensors are devices that exploit the pyroelectric effect — the ability of certain materials to generate an electrical charge in response to temperature changes. These sensors are highly sensitive to infrared radiation, making them ideal for detecting heat emitted by objects without direct contact.

A core feature of pyroelectric sensors is their ability to function without external power for the sensing mechanism itself, as the signal is directly generated by the material’s temperature-induced polarization. This property allows for energy-efficient designs, particularly in battery-powered and remote systems.

Typically constructed from materials like lithium tantalate (LiTaO₃), lead zirconate titanate (PZT), or gallium nitride (GaN), these sensors are optimized for high stability and sensitivity. Their crystalline structure is key to their operation, as it enables the spontaneous polarization necessary for signal generation when exposed to thermal flux.

In addition to their infrared detection capabilities, pyroelectric sensors are valued for their compact size (often under 10 mm in diameter), fast response time (typically in the range of milliseconds), and ability to operate reliably across wide temperature ranges, from -40°C to 85°C or more. These attributes make them indispensable in applications such as motion detectors, which detect movements with over 90% accuracy, medical imaging systems that can resolve temperature differences as small as 0.1°C, and industrial safety devices capable of detecting flames within 1–2 seconds. Such performance metrics highlight their critical role in diverse fields, from enhancing security systems to ensuring environmental compliance.

3. How Pyroelectric Sensors Work

Pyroelectric sensors operate based on the pyroelectric effect, where specific crystalline materials generate an electrical charge when subjected to changes in temperature. This effect is a result of the material’s spontaneous polarization, which varies with thermal flux.

3.1. Sensing Mechanism

The sensor’s core comprises a thin pyroelectric material layer, typically coupled with electrodes on both sides. When infrared (IR) radiation strikes the material, it causes a temperature fluctuation, altering the polarization and producing a voltage across the electrodes. This signal is then amplified and processed to detect the presence and intensity of the IR radiation.

3.2. Role of Temperature Changes and Infrared Radiation

Pyroelectric sensors detect temperature changes rather than absolute temperature. This makes them ideal for dynamic environments, where the presence of moving heat sources—such as humans or vehicles — can be detected against a static background. Infrared radiation emitted by these heat sources is absorbed by the sensor material, triggering the temperature variations needed to generate the output signal.

3.3. Structure and Function

A typical pyroelectric sensor includes the following components:

1. Pyroelectric Element: The core material that reacts to temperature changes.
2. Electrodes: Capture the electrical signal generated by the pyroelectric element.
3. Filter: An optical filter allows only IR radiation within specific wavelengths to reach the sensor, enhancing accuracy.
4. Amplifier and Signal Processor: Converts the weak electrical signal into a measurable and usable form.

A cross-sectional view of a pyroelectric sensor typically consists of a pyroelectric material sandwiched between two electrodes. An optical filter is placed on top to allow only specific infrared wavelengths to reach the active area. Behind the sensor, an amplifier and signal processor convert the electrical signal generated by the pyroelectric material into a usable output for detection and analysis.

This design enables pyroelectric sensors to reliably detect IR radiation across diverse applications, maintaining sensitivity and precision even in challenging conditions.

4. Applications of Pyroelectric Sensors

Pyroelectric sensors are versatile components used across various industries due to their ability to detect temperature changes and infrared radiation with high sensitivity and accuracy. Below is a breakdown of their applications:

4.1. Security and Surveillance

• Motion Detection: Pyroelectric sensors are the cornerstone of passive infrared (PIR) systems, which detect motion by sensing the heat emitted by moving objects, such as people or animals. These systems are widely deployed in alarm systems, automatic lighting controls, and intruder detection systems.
• Heat Mapping: In advanced surveillance setups, pyroelectric sensors enable thermal imaging for real-time activity monitoring in low-visibility conditions.

4.2. Healthcare

• Non-Contact Temperature Measurement: Pyroelectric sensors are integral to devices like infrared thermometers and thermal scanners, enabling fast, accurate temperature readings without direct contact — critical for fever detection and pandemic control.
• Medical Imaging: Their ability to detect minute temperature variations makes pyroelectric sensors suitable for thermal imaging in diagnostic applications, such as detecting inflammation, tumors, or circulatory issues.

4.3. Consumer Electronics

• Remote Controls: Many infrared remote controls use pyroelectric sensors to detect IR signals for device operation.
• Gesture Recognition: In modern consumer devices, pyroelectric sensors support gesture-based controls by detecting heat changes caused by hand movements.

4.4. Industrial Applications

• Flame Detection: Pyroelectric sensors are used in flame detectors to identify specific infrared wavelengths emitted by combustion processes. These systems are critical in fire safety and industrial plant monitoring.
• Environmental Monitoring: They are employed in devices that monitor atmospheric parameters, including gas emissions and temperature fluctuations, ensuring safety and regulatory compliance.

4.5. Emerging Trends

• IoT Integration: Pyroelectric sensors are increasingly integrated into IoT devices for smart home automation, such as intelligent HVAC systems and energy-efficient lighting.
• Automotive Applications: In the automotive industry, these sensors are being developed for advanced driver-assistance systems (ADAS) to enhance safety and thermal monitoring.
• Wearable Technology: Miniaturized pyroelectric sensors are making their way into wearable devices for health monitoring and augmented reality systems.

5. Advantages and Limitations

Advantages: Pyroelectric sensors are prized for their high sensitivity to temperature changes, which allows them to detect even minimal variations in infrared radiation. This sensitivity makes them ideal for applications requiring precision, such as medical diagnostics and flame detection. Additionally, their compact size enables integration into small devices, including consumer electronics and IoT systems. The relative cost-effectiveness of pyroelectric sensors, compared to other infrared detection technologies, further enhances their appeal across industries, making advanced sensing capabilities accessible in cost-sensitive applications.

Limitations: Despite their advantages, pyroelectric sensors are not without limitations. They are highly sensitive to noise and environmental factors, such as vibration and electromagnetic interference, which can affect accuracy and reliability. Careful system design and shielding are often necessary to mitigate these effects. Another drawback is their need for periodic calibration to maintain performance over time, especially in demanding environments. This requirement can increase maintenance efforts and costs in long-term deployments, particularly in industrial or outdoor applications.

6. Innovations in Pyroelectric Sensor Technology

Recent Advancements: Pyroelectric sensors have improved rapidly. New materials like thin-film composites and engineered ceramics boost sensitivity and thermal stability. Hybrid designs combine pyroelectric materials with thermopiles or photonic sensors, enhancing accuracy and broadening detection capabilities. Microfabrication techniques now enable smaller sensors, making them ideal for compact devices.

Integration with IoT and Smart Systems: Pyroelectric sensors power many smart devices. In homes, they optimize energy use in lighting, HVAC systems, and security. In industry, they monitor safety and environmental conditions. Their low power consumption fits perfectly with IoT systems, ensuring efficient operation and extended device life.

Potential Future Developments: The future looks exciting. Nanostructured materials will bring higher sensitivity and better precision. AI integration could make sensors smarter, enabling pattern recognition and predictive maintenance. Flexible and wearable sensors may expand into healthcare and augmented reality, unlocking entirely new possibilities.

These innovations ensure that pyroelectric sensors will continue to evolve, meeting the growing demands of industries and unlocking new possibilities in sensing technology.

7. Comparison with Other Sensor Technologies

Infrared Sensors vs. Pyroelectric Sensors: Infrared sensors detect IR radiation, but they lack the precision of pyroelectric sensors when measuring temperature changes. Pyroelectric sensors excel in detecting motion and dynamic heat sources, making them ideal for applications like security systems and thermal imaging. Infrared sensors, on the other hand, are better suited for continuous temperature monitoring, such as in industrial equipment.

Thermopile Sensors vs. Pyroelectric Sensors: Thermopile sensors measure temperature by detecting the cumulative heat flux across multiple junctions. They are highly accurate for static or slow-changing temperatures. However, they fall short in detecting rapid temperature changes. Pyroelectric sensors thrive in such scenarios, making them superior for motion detection, flame sensing, and pulsed laser measurements.

Where Pyroelectric Sensors Are Superior: Pyroelectric sensors stand out in applications requiring high sensitivity to temperature fluctuations. For example, they outperform other sensors in motion detection systems where they can pick up even slight movements. They are also more effective in detecting pulsed or intermittent heat sources, such as in laser power meters or flame detection systems. Their compact size, low power needs, and ability to operate without active cooling make them an excellent choice for portable and energy-efficient devices.

By focusing on dynamic and intermittent heat detection, pyroelectric sensors carve a niche that other sensors struggle to fill. This makes them indispensable in security, medical, and industrial applications.

8. Choosing the Right Pyroelectric Sensor

Key Factors to Consider: Selecting the right pyroelectric sensor depends on several critical factors. First, consider sensitivity. Applications like medical imaging or flame detection require high sensitivity to detect subtle temperature changes. Next, evaluate size. Compact sensors work best for devices with limited space, such as IoT systems or wearable technology.

Additionally, ensure the sensor matches application-specific requirements. For example, choose a sensor with a suitable wavelength range and response time for tasks like laser power measurement or motion detection. Also, account for operating conditions, including temperature ranges, environmental noise, and power consumption.

9. Environmental and Sustainability Impacts

Eco-Friendly Sensor Designs: Pyroelectric sensors contribute to sustainability through their energy-efficient operation. Many designs require minimal power, aligning well with the global push for greener technologies. Manufacturers now focus on using environmentally friendly materials, reducing the reliance on hazardous substances like lead. Thin-film pyroelectric materials and ceramics offer greener alternatives while maintaining high performance. These advancements support the development of sensors that are both effective and sustainable.

Lifecycle and Recyclability: The lifecycle of pyroelectric sensors is another area of focus. Many sensors are now designed with durability in mind, reducing the need for frequent replacements. This minimizes electronic waste and lowers the overall environmental footprint. Additionally, the use of recyclable materials, such as certain ceramics and metals, allows components to be recovered and reused at the end of their life. By improving material recyclability and extending sensor lifespan, manufacturers are addressing environmental challenges more effectively.

10. Conclusion

Pyroelectric sensors are powerful tools that leverage temperature changes to detect infrared radiation with exceptional sensitivity. They play a crucial role in various industries, including security, healthcare, consumer electronics, and industrial safety. Advancements in materials, miniaturization, and IoT integration continue to expand their capabilities, making them indispensable in modern technology.

By understanding their principles, applications, and benefits, engineers and you can harness these sensors to drive innovation in your projects. Whether you’re designing a motion detection system, measuring laser power, or creating smarter IoT devices, pyroelectric sensors offer unmatched versatility and efficiency.
