Veshay Akemond PCB Strain Strai Gauges TSK-1D-120-3A-11L50W05MS
Description
Veshay PCB Strain Gauges Measurement System
PCB Strain testing allows objective analysis of the strain and strain rate levels that a SMT package is subjected to during PWB assembly, test and operation.
The Veshay PCB Strain Measurement System is special design for printed wiring board strain testing application. The real-time data provided by the Veshay system avoid the risk such failures include solder ball cracking, trace damage, pad lifting and substrate cracking during board manufacturing and test processes.

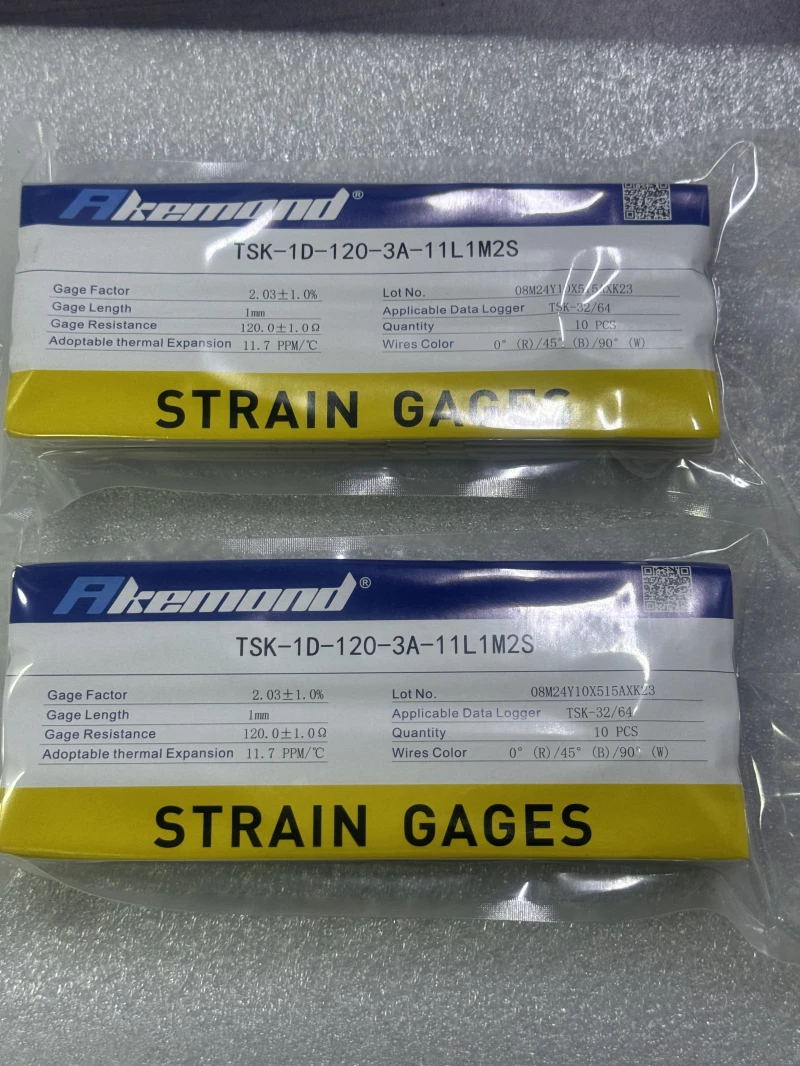

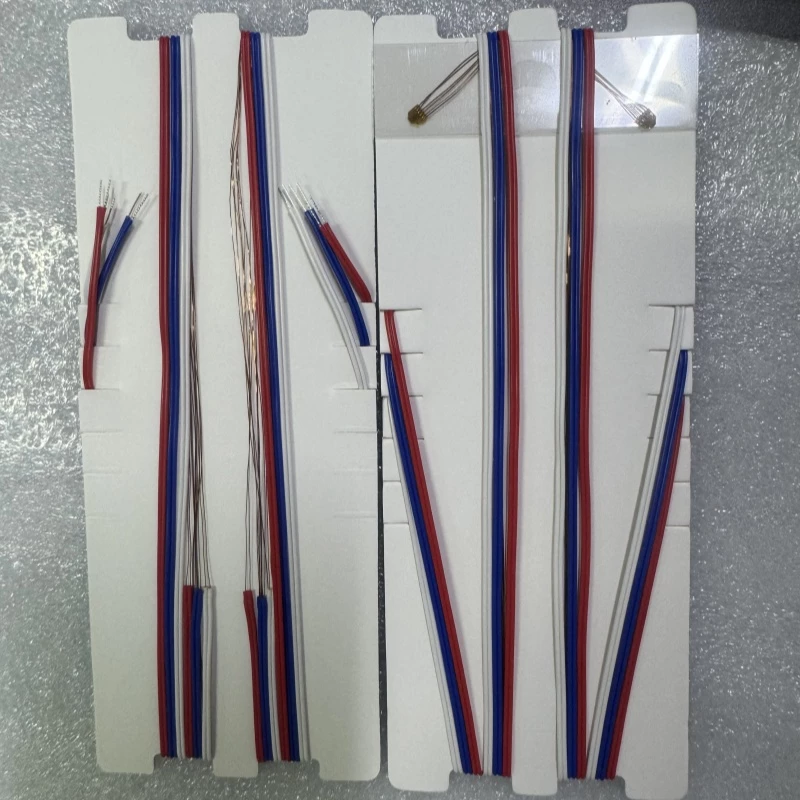

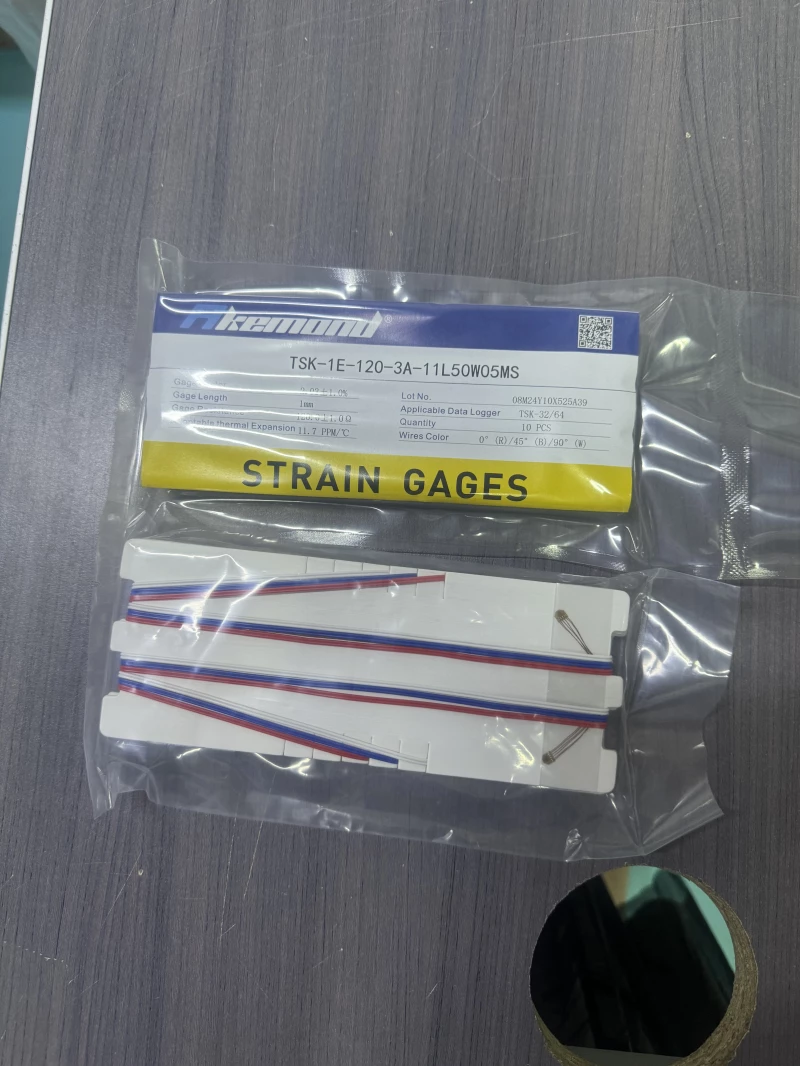

Veshay Akemond PCB Strain Strai Gauges TSK-1D-120-3A-11L50W05MS
Specifications |
|
|---|---|
| Measurement Range: | -55500-55500uE |
| Accuracy: | -0.3-0.3% |
| Stability: | 6 ppm/degC |
| Sampling Frequency: | 10 KHz (per channel) |
| Operational Temperature Range: | -40-70degC |
| Resistance: | 120OHMS |
| Sensor Size: | 1.1*1.0MM |
| Base Size: | 2.5*2.7MM |
| Length - Copper Wire: | 50CM |
| Cable Wire: | 50CM |
| Style: | Triaxial |
Features
Veshay Stress-Strain Analysis (IPC/JEDEC 9704)
Measurement of the stress in PCBs using strain gauges
If PCBs are overstrained during production, storage or transport, they can take unnoticed mechanical damage and fail systematically later in their service life. Critical straining forces can also occur when the PCB passes through a test stand as part of the production line, for example when inserting the PCB in a test adapter. Therefore, we test the mechanical stress in the PCB throughout the test task, using strain gauges. Based on the results, we can further optimise the test adapter and minimise straining forces.
Applications
PCB industry: circuit board ICT/FCT/sub board /assembly and other stress measurement.
Other industries: vehicle, bridge, air conditioning pipeline, building strain measurement
