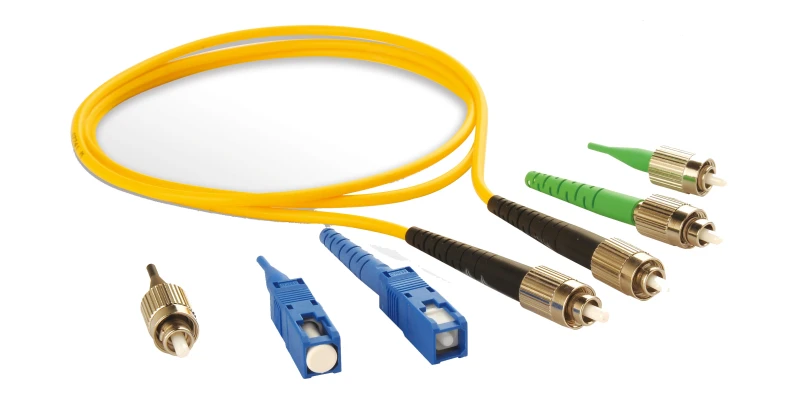

980-1060-1310-1480-1550nm Multimode Patchcord
Description
The GKER Photonics Multimode Patchcord Series (GK-MMP Series) is designed to provide reliable performance in demanding applications. With its exceptional environmental stability, low insertion loss, and high return loss, this patchcord is ideal for use in multimode fiber lasers and test instrumentation.
The patchcord supports a range of operating wavelengths, including 980 nm, 1060 nm, 1310 nm, and 1550 nm, ensuring versatility in various setups. The typical insertion loss is as low as 0.20 dB, with a maximum insertion loss of 0.30 dB, making it highly efficient for signal transmission. It features a minimum return loss of 25 dB and can handle up to 300 mW of continuous optical power.
Designed for optimal performance in diverse environmental conditions, it operates within a temperature range of -5°C to +70°C and can be stored in temperatures from -40°C to +85°C. This patchcord is available in multiple configurations, including various fiber jackets and core sizes, providing flexibility to meet specific application needs.
980-1060-1310-1480-1550nm Multimode Patchcord
Specifications |
|
|---|---|
| Core Diameter: | - um |
| Wavelength Range: | 980-1550um |
| Fiber Core Material: | Fused Silica |
| Cable Length: | 1 or specify m |
| Operating Wavelength: | 980, 1060, 1310, 1550 or specified nm |
| Typ. Insertion Loss: | 0.20 dB |
| Max. Insertion Loss: | 0.30 dB |
| Min. Return Loss: | 25 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Fiber Length Tolerance: | ± 10 or specified % |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Low Insertion Loss: Ensures efficient signal transmission with a typical loss of 0.20 dB and a maximum of 0.30 dB
- High Return Loss: Maintains signal integrity with a minimum return loss of 25 dB
- Versatile Wavelengths: Supports a range of operating wavelengths: 980 nm, 1060 nm, 1310 nm, and 1550 nm
- High Optical Power Handling: Capable of managing continuous optical power up to 300 mW
- Environmental Stability: Operates reliably within a temperature range of -5°C to +70°C and storage from -40°C to +85°C
Applications
- Multimode Fiber Lasers: Ideal for high-performance multimode fiber laser systems requiring minimal signal loss and high return loss
- Test Instrumentation: Suitable for use in various test and measurement applications where precise signal integrity is crucial
- Data Centers and Communication Networks: Perfect for multimode applications in data centers and network environments
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
Available wavelengths include 980 nm, 1060 nm, 1310 nm, 1550 nm, or specified wavelengths.
The typical insertion loss is 0.20 dB.
The maximum insertion loss is 0.30 dB.
The minimum return loss is 25 dB.
The patchcord can handle up to 300 mW of continuous optical power.
Operating temperature range is -5°C to +70°C; storage temperature range is -40°C to +85°C.
Options include 250 μm Bare Fiber, 900 μm Loose Tube, 2 mm Cable, and 3 mm Cable.
Fiber core options include 105 μm NA 0.15, 105 μm NA 0.22, 62.5 μm, and 50 μm.
Fiber length tolerance is ±10% or specified.
Yes, it is ideal for multimode fiber lasers and test instrumentation applications.
