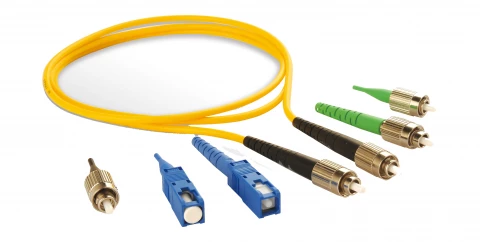

980-1060-1310-1480-1550nm Multimode Patchcord-MMP
Description
The GKER Photonics GK-MMP Series Multimode Patchcord offers superior performance with exceptional environmental stability, low insertion loss, and high return loss. Designed for use in multimode fiber lasers and test instrumentation applications, this patchcord is engineered to deliver reliable performance in demanding environments.
The patchcord is available in a variety of wavelengths, including 980 nm, 1060 nm, 1310 nm, and 1550 nm, or can be customized to meet specific requirements. It features a low typical insertion loss of 0.2 dB, and a maximum insertion loss of 0.3 dB, ensuring efficient signal transmission.
With a minimum return loss of 25 dB, it maintains high signal quality and integrity. Capable of handling up to 300 mW of continuous optical power, the patchcord is suitable for high-power applications. It supports a temperature range from -5°C to +70°C for operation and -40°C to +85°C for storage, making it versatile for various environmental conditions. The GK-MMP Series patchcord is available with different fiber core sizes, jackets, and lengths, providing flexibility to meet diverse application needs.
980-1060-1310-1480-1550nm Multimode Patchcord-MMP
Specifications |
|
|---|---|
| Core Diameter: | - um |
| Wavelength Range: | 980-1550um |
| Fiber Core Material: | Fused Silica |
| Cable Length: | 1 or specify m |
| Operating Wavelength: | 980, 1060, 1310, 1550, or specified nm |
| Typ. Insertion Loss: | 0.2 dB |
| Max. Insertion Loss: | 0.3 dB |
| Min. Return Loss: | 25 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Fiber Length Tolerance: | ± 10 or specified % |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- High Return Loss: Provides a minimum return loss of 25 dB for excellent signal reflection
- Low Insertion Loss: Features a typical insertion loss of 0.2 dB for efficient signal transmission
- Wide Wavelength Range: Available in 980 nm, 1060 nm, 1310 nm, 1550 nm, or specified wavelengths
- High Optical Power Handling: Capable of managing up to 300 mW of continuous optical power
- Environmental Stability: Operates reliably within a temperature range of -5°C to +70°C
- Versatile Fiber Options: Offers multiple core sizes and jacket types for various applications
Applications
- Multimode Fiber Lasers: Ideal for use in high-performance multimode fiber laser systems
- Test Instrumentation: Suitable for precise testing and measurement in optical laboratories
- High-Power Applications: Capable of handling high optical power with minimal signal loss
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The typical insertion loss is 0.2 dB.
The maximum insertion loss is 0.3 dB.
The available wavelengths are 980 nm, 1060 nm, 1310 nm, 1550 nm, or specified.
The minimum return loss is 25 dB.
It can handle up to 300 mW of continuous optical power.
The operating temperature range is -5°C to +70°C.
The storage temperature range is -40°C to +85°C.
Yes, the fiber length can be specified according to requirements.
Available fiber cores include 105 μm NA 0.15, 105 μm NA 0.22, 62.5 μm, and 50 μm.
Yes, options include 250 μm Bare Fiber, 900 μm Loose Tube, 2 mm Cable, and 3 mm Cable.
