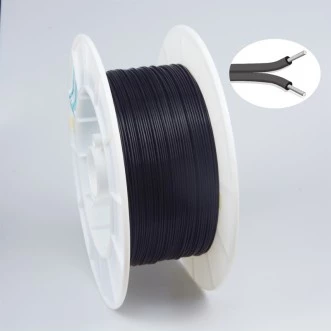

Duplex core plastic optical fiber cable
Description
Part No.:
TX-CC1000-2AV
Fiber diameter:
1.0mm *2
Cable diameter:
2.2x4.4mm
Number of fiber
duplex core
Minimum Bend Radius:
25mm
Attenuation:
≤ 180 dB/km @650nm
Flame retardant grade:
UL VW-1
Numerical Aperture:
0.5NA
Temperature Range:
-55°C to +70°C
Customization:
customized logo on the cable/ color of the cable
Comply with REACH/ RoHS/ VW-1 anti-flaming
Contact:
Cynthia Wang Email: cgy@txpof.com
Mobile: +86-19505282860 (wechat/whatsapp) | Skype: TXcynthia427
Duplex core plastic optical fiber cable
Specifications |
|
|---|---|
| Core Diameter: | 1000 um |
| Wavelength Range: | 380 – 780 um |
| Fiber Core Material: | Plastic |
| Cable Length: | 1250 m |
| Cable Diameter: | 2.2*4.4mm |
| Number Of Fiber: | duplex core |
| Numerical Aperture: | 0.5 |
Features
Anti-flaming
High bandwidth
Steady signal transmission
Anti-electromagnetic interference
Space saving
Easy operation
Applications
Power system
Industrial automation control system
Industrial robot system and servo system
Communication system
Digital multimedia systems
Medical sensor system
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Jiangsu TX Plastic Optical Fibers Co., Ltd.. -
On FindLight:
since 2021
Frequently Asked Questions
The fiber diameter is 1.0mm.
The minimum bend radius is 25mm.
The attenuation is ≤ 180 dB/km at 650nm.
The cable can withstand a temperature range of -55°C to +70°C.
Yes, the cable can be customized with a logo and the color can be changed.
