Plastic Optical Fiber Cable - Duplex POF
Description
Plastic Optical Fiber Cable-duplex POF Cable
Item：DC2-1000,equal to GHV 4002
P/N: DC2-1000(pure black)
DCW2-1000(white bar colored for easy identification)

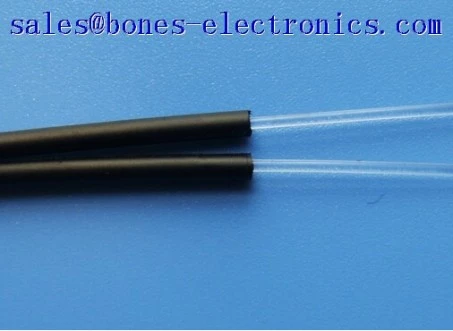

This 1 mm PMMA fiber duplex zipcord, 70deg.C, 2.2 mm x 4.4 mm - 1500 feet spool is made of two paralleled 1.0mm cores,2*2.2mm POF Cable for various applications.
Plastic Optical Fiber Cable - Duplex POF
Specifications |
|
|---|---|
| Core Diameter: | 1000 um |
| Wavelength Range: | 400-800um |
| Fiber Core Material: | Plastic |
| Cable Length: | 5 m |
| Attenuation@525nm: | 0.15 dB/M |
| Attenuation@650nm: | 0.18 dB/M |
| Roll Length: | 500 m/roll |
Features
1. Light in weight energy saving and safe
2. High bandwidth, excellent flexibility, vibration resistance
3. Anti-electromagnetic interference, stable and reliable signal transmission
4. Heat and code resistant(-20- 70 Celsius Degrees)
5. Easy to install and connect, maintenance easily
6. Complied with YD/T 1447-2006 and YD/T 1258.6-2006, the state communications industry standard.
7. Providing easier construction work, saving cable-occupied space and delivering smoother look.
Applications
Power system
Industrial automation control system
Industrial robot system and servo system
Communication system
Digital multimedia systems
Medical sensor system, etc
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Bones Electronics Co., Ltd -
On FindLight:
since 2017
Frequently Asked Questions
The product name is Plastic Optical Fiber Cable - Duplex POF and the model numbers are DC2-1000 and DCW2-1000.
The spool is 1500 feet long.
This cable can be used in power systems, industrial automation control systems, industrial robot systems and servo systems, communication systems, digital multimedia systems, medical sensor systems, and more.
This cable is heat and code resistant from -20 to 70 degrees Celsius.
This product has passed ROHS and REACH certifications.
