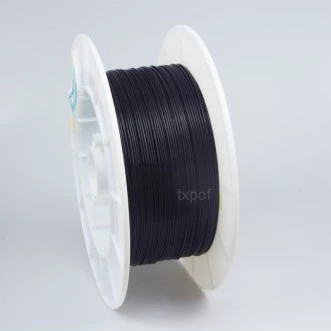

PMMA POF Cable 2.2mm simplex plastic optical fiber cable
Description
OD: 1.0*2.2mm
Number of fiber :1
Minimum Bend Radius:25mm
Transmission Loss: ≤ 180 dB/km @650nm
Numerical Aperture: 0.5NA
Core Refractive Index:1.49
Temperature Range:-55°C to +70°C
Customization: customized logo on the cable
RoHS/REACH Compliant
Contact :
Cynthia Wang
Email: cgy@txpof.com
Mobile: +86-19505282860 (wechat/whatsapp) Skype: TXcynthia427
PMMA POF Cable 2.2mm simplex plastic optical fiber cable
Specifications |
|
|---|---|
| Core Diameter: | 1000 um |
| Wavelength Range: | 380-780um |
| Fiber Core Material: | Plastic |
| Cable Length: | 2500 m |
| Cladding Material: | Fluorinated Polymer |
| Jacket Material: | high-performance polyvinyl chloride |
| Outer Diameter: | 2.2mm |
| Numerical Aperture: | 0.5 |
| Transmission Loss: | 180dB/KM @650nm |
| Minimum Bend Radius: | 25mm |
| Flame Rating: | UL VW-1 E356012 |
Features
Flame-retardant
High bandwidth
Steady signal transmission
Anti-electromagnetic interference
Space saving
Easy operation
Applications
Flame-retardant series cables are typically used for industrial control, industrial sensing, and data transmission, especially for the High and low voltage power system.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Jiangsu TX Plastic Optical Fibers Co., Ltd.. -
On FindLight:
since 2021
Frequently Asked Questions
The outer diameter of the PMMA POF Cable is 1.0*2.2mm.
The cable has 1 fiber.
The minimum bend radius of the cable is 25mm.
The transmission loss of the cable is ≤ 180 dB/km @650nm.
The cable can withstand a temperature range of -55°C to +70°C.
