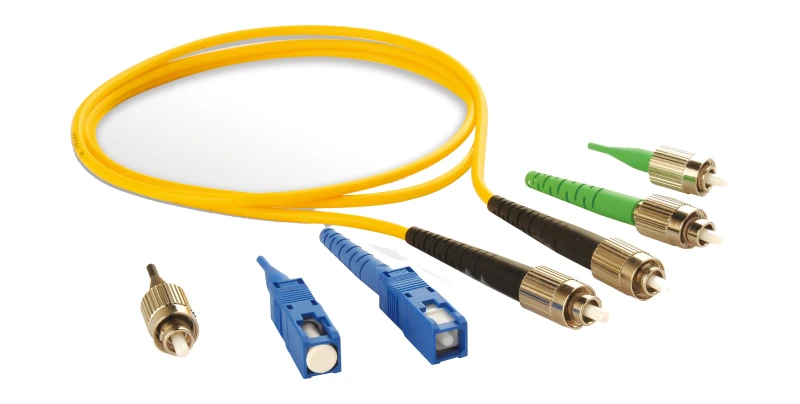

980-1060-1310-1480-1550nm Singlemode Patchcord GK-P Series
Description
The Singlemode Patchcord (GK-P Series) from GKER Photonics Co., Ltd is engineered for high-performance fiber optic connectivity with superior environmental stability. This series is designed to offer exceptional optical performance with low insertion loss, high return loss, and minimal polarization dependence.
Available in various wavelengths, including 980 nm, 1060 nm, 1310 nm, 1480 nm, and 1550 nm, the patchcord is ideal for demanding applications in fiber lasers and test instrumentation. It provides a reliable connection with a low insertion loss of 0.3 dB to 0.4 dB and high return loss ranging from 50 dB to 60 dB, ensuring efficient signal transmission and minimal signal degradation.
With a maximum optical power handling of 300 mW and a wide operating temperature range from -5°C to +70°C, this patchcord maintains its performance even in harsh conditions. The fiber length tolerance is ±10% or as specified, offering flexibility in various setups. The patchcord is available with different connector types, jacket options, and fiber lengths to meet diverse needs and ensure optimal performance in different scenarios.
980-1060-1310-1480-1550nm Singlemode Patchcord GK-P Series
Specifications |
|
|---|---|
| Wavelength Range: | 980-1550nm |
| Cable Length: | 1,2 or specify m |
| Fiber Core Material: | Silica |
| Connector Type: | UPC APC - |
| Wavelength¹: | 980, 1060, 1310, 1480, 1550 nm |
| Typ. Insertion Loss: | 0.3 0.4 dB |
| Max. Insertion Loss: | 0.5 dB |
| Min. Return Loss: | 50 60 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Fiber Length Tolerance: | ± 10 or specified % |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Low Insertion Loss: Achieves a typical insertion loss of 0.3 dB to 0.4 dB
- High Return Loss: Provides high return loss of 50 dB (UPC) and 60 dB (APC) for effective signal reflection
- Wide Wavelength Range: Available in wavelengths of 980 nm, 1060 nm, 1310 nm, 1480 nm, and 1550 nm
- Maximum Optical Power: Supports up to 300 mW of continuous optical power
- Environmental Stability: Operates reliably across temperatures from -5°C to +70°C
- Low Polarization Dependence: Ensures minimal polarization effects
Applications
- Fiber Lasers: Ideal for use in high-performance fiber laser systems
- Test Instrumentation: Suitable for precise measurement and testing applications
- Telecommunications: Provides reliable connectivity for optical communication systems
- Optical Networks: Enhances signal quality in advanced optical networks
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
980 nm, 1060 nm, 1310 nm, 1480 nm, and 1550 nm.
0.3 dB for 980 nm and 1060 nm, and 0.4 dB for 1310 nm, 1480 nm, and 1550 nm.
50 dB for UPC connectors and 60 dB for APC connectors.
Up to 300 mW of continuous wave optical power.
±10% or specified.
Operating temperature ranges from -5°C to +70°C, and storage temperature ranges from -40°C to +85°C.
FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, and LC/APC.
250 µm Bare Fiber, 900 µm Loose Tube, 900 µm Tight Buffer, 2 mm Cable, 3 mm Cable.
SMF-28 Fiber and HI 1060 Fiber.
