Custom Fiber Bragg Grating

Fiber Bragg Grating (FBG) Sensor
Ascentta
Add to watch list
Fiber Bragg Grating (FBG) Sensor
Compare
The FBG-S Fiber Bragg Grating by Ascentta, Inc. is designed for various sensing applications. Fiber Bragg grating (FBG) technology enables precise measurement of parameters such as strain and temperature in optical fibers. These FBG sensors are reliable, compact, and highly sensitive, making them suitable for a wide range of ...

Specifications
Center Wavelength Range: 1510-1590nm
FBG Length: Custom
Reflectivity: >90%, 30 - 99%, 10 - 90%
Wavelength Deviation: +/-0.5 nm
3dB Bandwidth Max.: 0.25 dB
Data Sheet
Inquire Price

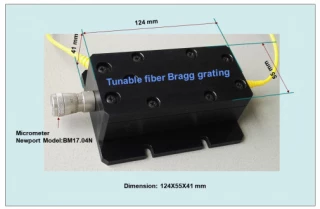

Tunable fiber Bragg grating
FLT INC
Add to watch list
Tunable fiber Bragg grating
Compare
The tunable fiber gratings are based on our innovative patented tuning technology that utilizes pure compressive strain tuning to achieve a large wavelength tuning range.The fiber grating tuner is designed to tune the wavelength of various types of fiber grating including fiber Bragg grating, phase-shifted fiber grating, or long ...

Specifications
Center Wavelength Range: 1060-2000nm
FBG Length: Custom
Reflectivity: 30 - 99%
Wavelength Tuning Range:: >20 nm ~ 50nm
Data Sheet
Inquire Price
Gain Flattening Filter
Broptics Technology Inc
Add to watch list
Gain Flattening Filter
Compare
The gain flattening filter (GFF), or gain equalizer (GEQ), is used to compensate for the uneven gain amplification at different DWDM channel by Er-doped fiber amplifier (EDFA). Broptics develops two fiber grating technologies to achieve best price/performance value for customers.Chirped Fiber Bragg Gratings (CFBG)Chirped gratings is ...

Specifications
Center Wavelength Range: 1525-1565nm
FBG Length: Custom
Reflectivity: Not Specified
Data Sheet
Inquire Price
TUNABLE FIBER BRAGG GRATING GTL-FBG-TB-890
FORC-Photonics
Add to watch list
TUNABLE FIBER BRAGG GRATING GTL-FBG-TB-890
Compare
Tunable FBG is a good solution for many applications including where corrected central Bragg wavelength is necessary. Central wavelength of FBG strongly depends on applied stresses. The mechanics induced strain to the FBG shifting linearly its central wavelength. Relative strain sensitivity of FBGs wavelength is 0.78 10-6 ...

Specifications
Center Wavelength Range: 600-2300nm
FBG Length: Custom
Reflectivity: Not Specified
SLSR, DB: › 8
Types Of Fiber: Single-Mode, PM, Double clad, LMA
Data Sheet
Inquire Price

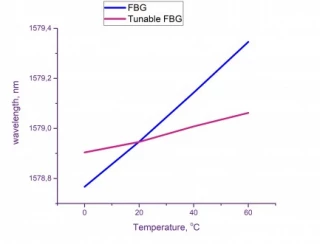

ATHERMAL PACKAGED FIBER BRAGG GRATING GTL-FBG-AP-850
FORC-Photonics
Add to watch list
ATHERMAL PACKAGED FIBER BRAGG GRATING GTL-FBG-AP-850
Compare
Fiber Bragg Gratings are sensitive to changes in temperature. Their thermo sensitivity is about 6.7 ppm/ ⁰K (+0.11 pm/ ⁰K at wavelength 1550 nm).

Specifications
Center Wavelength Range: 600-2300nm
FBG Length: Custom
Reflectivity: Not Specified
Types Of Fiber: Single-Mode, PM, Double clad, LMA
Thermal Wavelength Stability (0 ÷ +70 ֩C), Nm: < 0.16
Data Sheet
Inquire Price

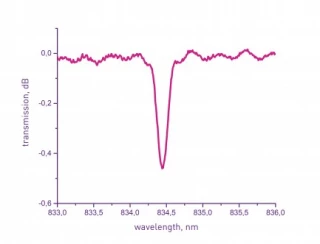

WAVELENGTH LOCKER FIBER BRAGG GRATING GTL-FBG-WL-810
FORC-Photonics
Add to watch list
WAVELENGTH LOCKER FIBER BRAGG GRATING GTL-FBG-WL-810
Compare
The Wavelength Locker FBGs are used as external reflectors for laser diodes. It is easy to stabilize wavelength generation of pump semiconductor lasers and single frequency lasers by using such FBGs. Low reflection gratings with FWHM 0.3 ÷ 0.8 nm and reflectivity 2 ÷ 5 % are ideal for pump power lasers stabilization. ...

Specifications
Center Wavelength Range: 400-2300nm
FBG Length: Custom
Reflectivity: 3 - 90%
FBG Recoating: None, Acrilate, Polyimide, Aluminium, Copper
Types Of Fiber: Single-Mode, PM, Double clad
Data Sheet
Inquire Price
FEMTOSECOND FIBER BRAGG GRATING GTL-FBG-FS-880
FORC-Photonics
Add to watch list
FEMTOSECOND FIBER BRAGG GRATING GTL-FBG-FS-880
Compare
Femtosecond FBGs can be made into all optical transparent fiber materials with a broad range of fiber coatings without stripping the coating from fiber and without the need of recoating in future.

Specifications
Center Wavelength Range: 400-2300nm
FBG Length: Custom
Reflectivity: Not Specified
Reflectivity, %: 0.01 ÷ 95
SLSR, DB: ‹ 8 ÷ 25
Data Sheet
Inquire Price
APODIZED - CHIRPED FIBER BRAGG GRATING GTL-FBG-ADG-820
FORC-Photonics
Add to watch list
APODIZED - CHIRPED FIBER BRAGG GRATING GTL-FBG-ADG-820
Compare
The apodized FBGs have special profile of induced refractive index modulation and grating strength along the grating length. Therefore, side lobes level becomes smaller in compared to ordinary gratings. There are a lot of apodization profiles which lead to the optimization of various FBG parameters such as strength, FWHM, SLSR, the ...

Specifications
Center Wavelength Range: 633-2300nm
FBG Length: Custom
Reflectivity: Not Specified
Reflectivity, %: 5 ÷99
Chirp Rate, Nm/cm: 0.01 ÷ 25
Data Sheet
Inquire Price

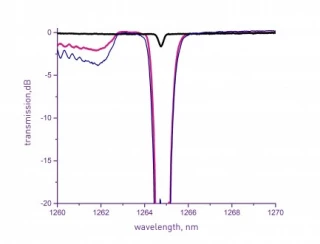

LASER MATCHED FIBER BRAGG GRATING PAIRS GTL-FBG-LP-830
FORC-Photonics
Add to watch list
LASER MATCHED FIBER BRAGG GRATING PAIRS GTL-FBG-LP-830
Compare
Fiber Bragg Gratings have many applications in optical communication, laser technique and sensing systems. The FBGs are widely used like in-fiber mirrors or optical filters with narrow band optical spectrum. FBGs can be used like a sensitive element for strain and temperature measuring.

Specifications
Center Wavelength Range: 600-2300nm
FBG Length: Custom
Reflectivity: Not Specified
Reflectivity, % (Low-reflection(LR)): 5 ÷ 40
Reflectivity, % (High-reflection(HR)): › 99
Data Sheet
Inquire Price

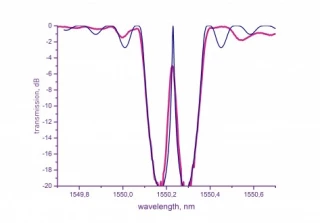

π-PHASE-SHIFTED FIBER BRAGG GRATING GTL-FBG-PS-870
FORC-Photonics
Add to watch list
π-PHASE-SHIFTED FIBER BRAGG GRATING GTL-FBG-PS-870
Compare
Fiber Bragg Gratings have many applications in optical communication, laser technique and sensing systems. The FBGs are widely used in-fiber mirrors and optical filters with narrow band optical spectrum. FBGs can be used as a sensitive element for strain and temperature measurements.

Specifications
Center Wavelength Range: 600-2300nm
FBG Length: Custom
Reflectivity: Not Specified
SLSR, DB : ‹ 8 ÷ 25
Reflectivity, %: 50 ÷ 99
Data Sheet
Inquire Price

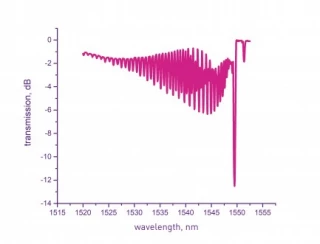

TILTED FIBER BRAGG GRATING GTL-FBG-TL-860
FORC-Photonics
Add to watch list
TILTED FIBER BRAGG GRATING GTL-FBG-TL-860
Compare
The Tilted FBG has an angle between wave vector of the grating and fiber axis. Therefore cladding modes resonances peaks become more intensive compared to ordinary gratings. TFBG cladding modes resonances wavelength are highly sensitive to the refractive index of the medium outside the fiber cladding. TFBGs are useful in sensing ...

Specifications
Center Wavelength Range: 600-2300nm
FBG Length: Custom
Reflectivity: >90%
Tilt Angle, °: 1 ÷ 45
Reflectivity, %: 5 ÷ 99
Data Sheet
Inquire Price
Standard Phase shifted FBG
Advanced Optics Solutions
Add to watch list
Standard Phase shifted FBG
Compare
Phase shifted Fiber Bragg gratings show a very narrow transmission band within its reflection bandwidth. Using special structures, even multiple transmission bands are possible. The phase shifted FBGs can be applied to an athermal setup or a temperature stabilization, as well as to a tuning setup.

Specifications
Center Wavelength Range: 1280-1620nm
FBG Length: Custom
Reflectivity: >90%, >70%, >50%, >30%, >20%
Data Sheet
Inquire Price
Premium Phase shifted FBG
Advanced Optics Solutions
Add to watch list
Premium Phase shifted FBG
Compare
Phase shifted Fiber Bragg gratings show a very narrow transmission band within its reflection bandwidth. Using special structures, even multiple transmission bands are possible. The phase shifted FBGs can be applied to an athermal setup or a temperature stabilization, as well as to a tuning setup.

Specifications
Center Wavelength Range: 800-1620nm
FBG Length: Custom
Reflectivity: >90%, >70%, >50%, >30%, >20%
Data Sheet
Inquire Price
Standard Broad Band Filter FBG
Advanced Optics Solutions
Add to watch list
Standard Broad Band Filter FBG
Compare
Using the technique of \"chirped\" (linear variation of the period within the FBG structure) Fiber Bragg gratings, we are able to provide FBGs with a very broad bandwidth and with a high rejection. We can provide a wide range of center wavelengths, bandwidths, and reflectivities.

Specifications
Center Wavelength Range: 1535-1565nm
FBG Length: Custom
Reflectivity: >90%, >70%, >50%, >30%, >20%
Data Sheet
Inquire Price
Premium Broad Band Filter FBG
Advanced Optics Solutions
Add to watch list
Premium Broad Band Filter FBG
Compare
Using the technique of \"chirped\" (linear variation of the period within the FBG structure) Fiber Bragg gratings, we are able to provide FBGs with a very broad bandwidth and with a high rejection. We can provide a wide range of center wavelengths, bandwidths, and reflectivities.

Specifications
Center Wavelength Range: 800-1620nm
FBG Length: Custom
Reflectivity: >90%, >70%, >50%, >30%, >20%
Data Sheet
Inquire Price
Standard FBG for DWDM Application
Advanced Optics Solutions
Add to watch list
Standard FBG for DWDM Application
Compare
Fiber Bragg gratings are compo- nents for a wide range of applica- tions in optical communications. The FBGs act there as in-fiber narrow band filters. Bragg gratings are imprinted into an optical fiber by a holographic process. They can be produced with standard single mode fiber as well as with special fibers, i. e. radiation mode ...

Specifications
Center Wavelength Range: 1280-1620nm
FBG Length: Custom
Reflectivity: >90%, >70%, >50%, >30%, >20%
Data Sheet
Inquire Price
Premium FBG for DWDM Application
Advanced Optics Solutions
Add to watch list
Premium FBG for DWDM Application
Compare
Fiber Bragg gratings are compo- nents for a wide range of applica- tions in optical communications. The FBGs act there as in-fiber narrow band filters. Bragg gratings are imprinted into an optical fiber by a holographic process. They can be produced with standard single mode fiber as well as with special fibers, i. e. radiation mode ...

Specifications
Center Wavelength Range: 800-1620nm
FBG Length: Custom
Reflectivity: >90%, >70%, >50%, >30%, >20%
Data Sheet
Inquire Price
Tunable Fiber Bragg Gratings
IDIL Fibres Optiques
Add to watch list
Tunable Fiber Bragg Gratings
Compare
IDIL Fibres Optiques offers tunable Fiber Bragg Gratings (FBG) using piezoelectric stack and electrical voltage.  A way to tune the optical wavelength (nanometer scale) of a photo-imprinted Fiber Bragg Grating is to fix it on a piezoelectric stack. When applying an electric voltage on the piezo, it creates an elongation of the ...

Specifications
Center Wavelength Range: 1000-2000nm
FBG Length: From 1mm to 20mm, Custom
Reflectivity: Not Specified
Fiber Type: SM, PM, RC
Weight (typical): 10 g g
Data Sheet
Inquire Price
On FindLight marketplace you will find 18 different Custom Fiber Bragg Grating from suppliers around the world. With just a few clicks you can compare different Custom Fiber Bragg Grating and get accurate price quotes based on your needs and quantity required. Note that some wholesale suppliers may offer discounts for large quantities. From any product page you can directly contact any vendor within seconds.
