Fiber Optic Couplers
Frequently Asked Questions
A Fiber Optic Coupler is an optical device that efficiently combines or splits light signals within a fiber optic communication system. It functions by either distributing light from a single optical fiber into multiple fibers or by combining light signals from multiple fibers into a single fiber. This is achieved through techniques such as core interaction or surface interaction.
The main types of Fiber Optic Couplers include Fused Biconical Taper (FBT) Couplers, Planar Lightwave Circuit (PLC) Couplers, Wavelength Division Multiplexers (WDM), and Star Couplers. Each type has specific applications and is designed to perform specific functions within an optical network.
In Wavelength Division Multiplexing (WDM), Fiber Optic Couplers are used to combine or separate light signals based on their wavelengths. This allows multiple signals to be transmitted through a single optical fiber, each at a different wavelength, significantly increasing the data transmission capacity of the network.
In telecommunications, Fiber Optic Couplers are essential for distributing and managing signals in telephone networks, internet infrastructure, and cable TV services. They are used for splitting signals to be distributed to multiple users, as well as for combining data streams for long-distance transmission.
Fiber Optic Couplers offer several benefits including increased network capacity by allowing multiple signals to be transmitted through a single fiber, reduced signal loss, reliability, flexibility in network design, and scalability as network traffic increases. They are also vital for efficient management of high volumes of data, especially in data centers.
Fiber Optic Couplers, especially Planar Lightwave Circuit (PLC) couplers, are designed to have low insertion loss. This means that they can efficiently split or combine signals with minimal loss of power, ensuring that the signals maintain their integrity and strength as they travel through the network.
When selecting a Fiber Optic Coupler, consider the type of coupler that suits your application (FBT, PLC, WDM, etc.), the configuration (1x2, 1x4, etc.), splitting ratio, wavelength range, insertion loss, fiber type (single-mode or multi-mode), connector type, maximum input power, operating temperature, and housing material. These factors will ensure the coupler is compatible with your network requirements.
Introduction to Fiber Optic Couplers
Fiber optic couplers are fundamental components in modern optical networks. They are used to split or combine light signals in fiber optic communication systems. This technical summary delves into the intricacies of fiber optic couplers, including their types, working principle, applications, and the advantages they bring to the table in optical networking.
Working Principle of Fiber Optic Couplers
Basic Concept: Fiber optic couplers function based on the principle of guiding light waves through optical fibers. They either split optical signals into two or more fibers or combine multiple signals into one. This is achieved through various techniques, such as fused biconical taper, micro-optics, and planar waveguides, depending on the type of coupler.
Signal Distribution: The distribution of light in a fiber optic coupler is not always equal. Depending on the requirements of the optical network, couplers can be designed to split the signal in various ratios. For example, a 1x2 coupler can be designed to split the input signal into two output signals with a ratio of 50/50, 70/30, or any other required proportion.
Types of Fiber Optic Couplers

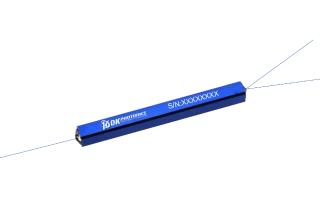

Fused Biconical Taper (FBT) Coupler: FBT couplers are made by wrapping two or more fibers together, then heating and stretching them until they fuse into a single component. This method allows for easy signal splitting. FBT couplers are widely used because of their low cost and effectiveness in multi-mode fiber systems.
Planar Lightwave Circuit (PLC) Coupler: PLC couplers use an optical chip to split or combine signals. They are manufactured using a process similar to semiconductor fabrication. PLC couplers are highly reliable and efficient, making them suitable for single-mode systems requiring precise signal splitting.
Wavelength Division Multiplexers (WDM): WDM couplers are used to combine or separate signals based on their wavelengths. They play a crucial role in dense wavelength division multiplexing (DWDM) systems, where multiple signals are transmitted through a single fiber at different wavelengths. This increases the capacity of the network without laying additional fibers.
Applications of Fiber Optic Couplers
Telecommunications: Fiber optic couplers are indispensable in the telecommunications industry. They are used in telephone networks, cable television services, and internet backbone infrastructures for signal distribution and routing.
Data Centers: In data centers, fiber optic couplers ensure efficient management of high volumes of data. They are used for splitting signals to multiple servers and combining data streams for transmission to other data centers or clients.
Sensing Applications: Fiber optic sensors often use couplers to monitor various parameters such as temperature, pressure, and strain. The couplers help in distributing the sensing signal and retrieving the data from the sensing points.
Advantages of Using Fiber Optic Couplers
Enhanced Network Capacity: Fiber optic couplers, especially WDM couplers, enable the transmission of multiple signals through a single fiber, significantly increasing network capacity without the need for additional cabling.
Flexibility: With different types of fiber optic couplers available, network designers have the flexibility to choose the appropriate coupler based on specific needs, such as signal splitting ratios or wavelength sensitivity.
Scalability: Fiber optic couplers allow networks to be easily scaled up. As network traffic increases, additional couplers can be added to distribute signals to new network paths or devices.
Reliability and Lower Loss: Especially in the case of PLC couplers, the signal splitting is highly precise and reliable, with very low insertion loss. This ensures that the signals maintain their integrity as they travel through the network.
Conclusion: The Indispensable Role of Fiber Optic Couplers
Fiber optic couplers are integral to the operation of modern optical networks. They serve a critical function in managing the distribution and combination of light signals in fiber optic communication systems. With various types available, including FBT, PLC, and WDM couplers, they offer network designers a versatile toolset for optimizing and scaling the optical communication infrastructure. As fiber networks continue to evolve, fiber optic couplers will remain essential components in meeting the increasing demands for data transmission capacity, reliability, and flexibility.
