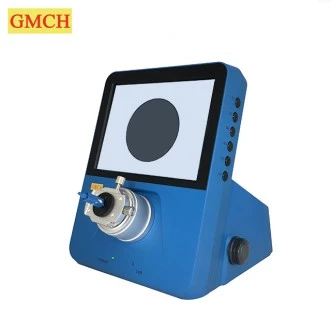

CSILU Fiber Optical Inspection End-Face Microscope
Description
General Information / Along with the continuous improvement of market demand and the requirements of the increase, GMCH TECH (SHENZHEN) Co., Ltd. design and develops of the GBM series of integrated fiber benchtop microscopes, compared to GFV series, FTN series of fiber microscopes, more high-definition , Smaller size, more flexible mode of operation, easy to extend the features. GBM-400A/200A is one of GBM series of integrated fiber benchtop microscopes and in a dedicated for the inspection of ALL type of 2.5mm and 1.25mm ceramic ferrules and connectors, and which is equipped with a multi-functional patented fixture.
Inspection Adapters / The standard pack of GBM-400A/200A includes 2.5mm and 1.25mm universal adapter each, total 2 pcs adapters. we offer SC/FC/ST/LC/MU/E2000 ect. PC and APC adapters, DIN/D4/LX.5/LC Duplex adapters as optional for customer.
CSILU Fiber Optical Inspection End-Face Microscope
Specifications |
|
|---|---|
| Accepted Fiber Diameter: | 0-400um |
| Number: | GBM-400A |
| Application: | SC FC ST fiber connectors |
| Focusing Mode: | Mannual |
| Resolution: | 0.5um Max |
| Display: | 8.0 inch TFT |
| Net Weight: | 1.60KG |
| Gross Weight: | 2.35KG |
| Operating Voltage/Current: | DC 12V 1000mA |
Features
Key Feature & Applications / ∗ High Definition SONY Camera ∗ Max resolution reachs to 0.5um ∗ X and Y axial adjustable and more stable ∗ Negative fiber image ∗ Lightsource adjustable ∗ Spare parts storage box∗ USB output expansion function ∗ Lithium power supply as optional∗ Applications / Apply for universal 2.5mm &1.25mm ceramics ferrules and connectors, such as SC/FC/ST/LC/MU/E2000/DIN/D4/LX.5 PC and APC type.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
GMCH TECH (SHENZHEN) CO.,LTD -
On FindLight:
since 2018
Frequently Asked Questions
The GBM-400A/200A Fiber Optical Inspection End-Face Microscope is used for the inspection of ALL type of 2.5mm and 1.25mm ceramic ferrules and connectors.
The key features of the GBM-400A/200A Fiber Optical Inspection End-Face Microscope include a high definition SONY camera, adjustable X and Y axial, negative fiber image, adjustable light source, spare parts storage box, USB output expansion function, and lithium power supply as optional.
The standard pack of the GBM-400A/200A Fiber Optical Inspection End-Face Microscope includes 2.5mm and 1.25mm universal adapters each, total 2 pcs adapters.
Optional adapters available for the GBM-400A/200A Fiber Optical Inspection End-Face Microscope include SC/FC/ST/LC/MU/E2000 ect. PC and APC adapters, DIN/D4/LX.5/LC Duplex adapters.
The max resolution of the GBM-400A/200A Fiber Optical Inspection End-Face Microscope reaches to 0.5um.
