HFBR plastic optical fiber cable
Description

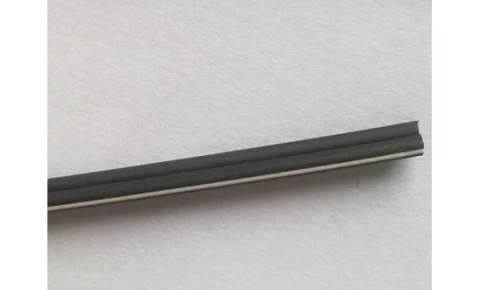

Item: pof duplex cable
P/N: DC2-1000(pure black)
DCW2-1000(white bar colored for easy identification)

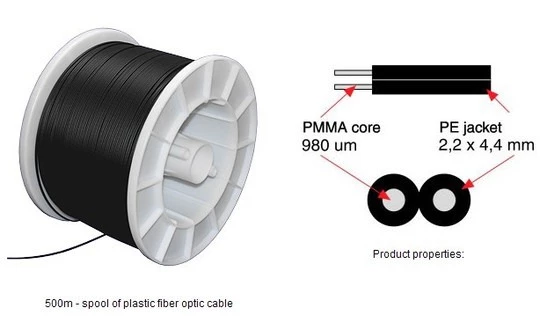

This 1 mm PMMA fiber duplex zipcord, 70deg.C, 2.2 mm x 4.4 mm - 1500 feet spool is made of two paralleled 1.0mm cores,2*2.2mm POF Cable for the following applications:
1. Signal transmission of fiber optic sensors;
2. High speed data transmission;
3. Industrial control data links;
4. Military communication;
5. Proprietary LANs or Access Network;
6. Multi-media data link and plant control in vehicles and airplanes;
Basic properties:
Fiber Core Material: PMMA
Cladding Material: Fluorinated Polymer
Jacketing Material: PE
Optical Instruction: Step Index Model
Numerical Aperture: 0.5
Allowable Bend Radius: No less than ten times of optical fiber diameter
Core Refractive Index: 1.492
HS Code: 9001100090
HFBR plastic optical fiber cable
Specifications |
|
|---|---|
| Core Diameter: | 1000 um |
| Wavelength Range: | 0.525-0.650nm |
| Cable Length: | 3 m |
| Fiber Core Material: | Not Specified |
| Attenuation Loss: | 0.17dB/M @525nm |
| Operating Temperature: | -55~85 ℃ |
Applications
Power system
Industrial automation control system
Industrial robot system and servo system
Communication system
Digital multimedia systems
Medical sensor system
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The HFBR plastic optical fiber cable is used for signal transmission of fiber optic sensors, high speed data transmission, industrial control data links, military communication, proprietary LANs or Access Network, and multi-media data link and plant control in vehicles and airplanes.
The allowable bend radius of the fiber cable is no less than ten times of optical fiber diameter.
The length of the spool for the P/N DC2-1000 is 1500 feet.
The numerical aperture of the fiber core material is 0.5.
The diameter of the fiber core material is 1.0mm.
