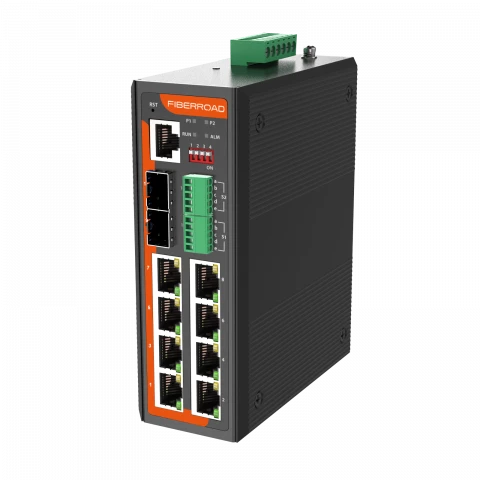

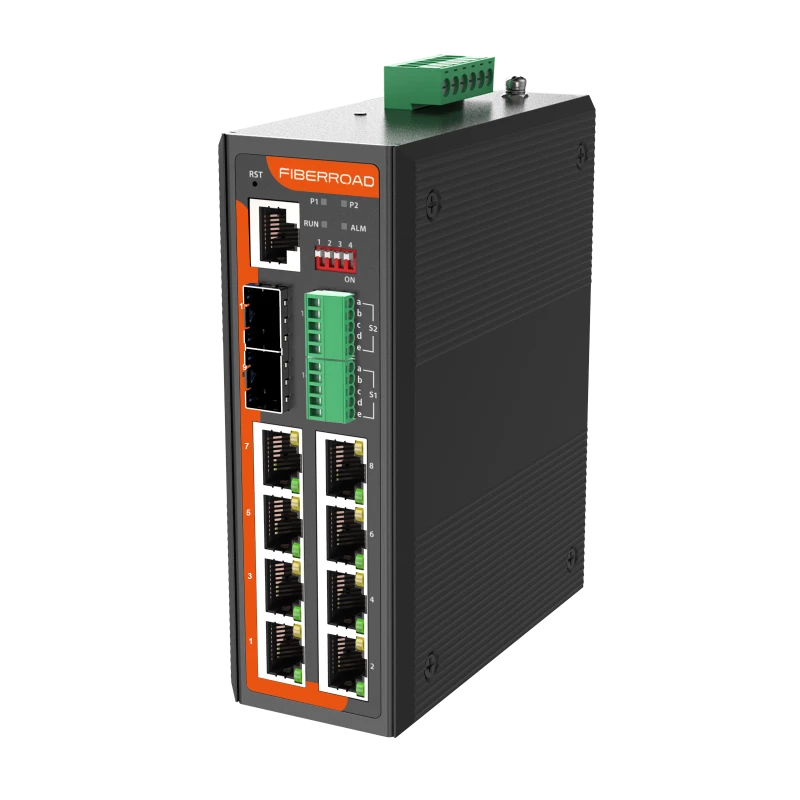

12-Port Serial over Ethernet Industrial Switch
Description
The new generation Managed Industrial Switch with 8-Port 10/100/1000Base-TX + 2 x RS485/422/232 and 2xGigabit uplink ports provide stable and reliable Ethernet transmission. It concurrently converts RS-232/422/485 connections to Ethernet connections, allowing for seamless communication between traditional serial-based devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet device.
With high-quality design and reliability. The FR-7M3408S support a wide range of management functions as well as Rapid Spanning Tree, Multiple Spanning Tree and Ethernet Ring Protection Switching (ERPS) protocols for network redundancy. IGMP functionality is supported to handle the multicast traffic, which is commonly used in IP CCTV deployment
12-Port Serial over Ethernet Industrial Switch
Specifications |
|
|---|---|
| Number Of Ports: | 1-12 |
| Wavelength Range: | 850-1550nm |
| Insertion Loss (typical): | 1.1 dB |
| Return Loss: | -50 dB |
Features
- All-aluminum Case, Compact and Fanless Design
- -40 to 75℃ temperature maintains performance in extreme conditions
- DIN Rail and wall-mountable – quick to install and remove for maintenance
- Full gigabit L2+ management, easy to manage the industrial network by CLI/WebGUI/NMS.
- Build up a redundant network with STP/RSTP/MSTP/ERPSv2.
- RADIUS, SNMPv3, IEEE 802.1x, HTTPs, SSHv2 and sticky MAC address to enhance network security
- EherNet/IP and Modbus TCP protocols supported for device management and monitoring
- Electric 8KV surge protection Complete status indicator, working state at a glance
- Power input polarity protection design, no worry about wrong operation
- QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR&SP+WRR
