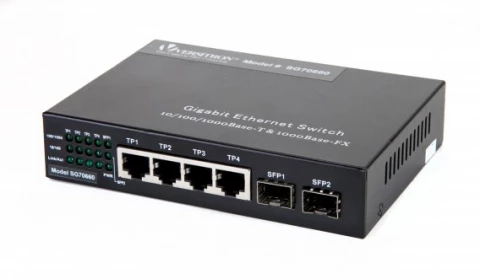

SG70660 6-Port 10/100/1000 Ethernet Switch
Description
Here's a compact Ethernet switch for those smaller network nodes requiring copper and fiber connectivity. The SG70660 provides 4 ports of 10/100/1000M with RJ45 connectors and 2 slots for 1G f.o. SFP modules. Perfect for extending your existing network to a remote location using gigabit speed f.o. cable, the SG70660 supports auto-negotiation and MDI/MDI-X on the Ethernet RJ45 copper ports, along with full duplex/half duplex capability. And, the flexibility offered by SFP technology means you can use multimode, singlemode, and singlefiber cables with this device. 100km f.o. links are possible with the use of VERSITRON's GB100SM f.o. SFP module. (Note: All f.o. SFP modules are sold separately.) The SG70660 supports VLAN, QoS, and IEEE 802.3x flow control, as well as IEEE 802.3/u/z/ab. LEDs indicate power and link activity for both the RJ45 copper ports and SFP f.o. slots. If you need a basic, unmanaged Ethernet product with gigbit f.o. connectivity, the SG70660 is a good bet. As with all VERSITRON products, the SG70660 carries a lifetime warranty.
SG70660 6-Port 10/100/1000 Ethernet Switch
Specifications |
|
|---|---|
| Number Of Ports: | 2-6 |
| Wavelength Range: | 1000-1600nm |
| Insertion Loss (typical): | - dB |
| Return Loss: | - dB |
Features
(2) 1000Base SFP Slots
(4) 10/100/1000Mbps Copper Ports
Supports Auto Negotiation
Supports MDI/MDI-X
Supports 802.3x Flow Control and Back-Pressure
Supports VLAN and QoS
Supports Jumbo Frames
Low power consumption (4W)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
External Vendor
Claim Versitron Page to edit and add data
Frequently Asked Questions
100km f.o. links are possible with the use of VERSITRON's GB100SM f.o. SFP module.
The SG70660 has low power consumption (4W).
The SG70660 is a compact Ethernet switch that provides 4 ports of 10/100/1000M with RJ45 connectors and 2 slots for 1G f.o. SFP modules.
The SG70660 supports multimode, singlemode, and singlefiber cables with this device.
The SG70660 supports VLAN, QoS, and IEEE 802.3x flow control, as well as IEEE 802.3/u/z/ab.
