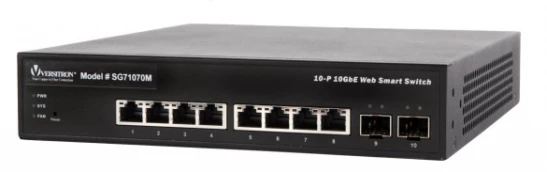

SG71070M 10-Port 10/100/1000 Web Smart+ Managed Switch
Description
Here's a mid-size 10-port network switch that covers all the bases. The web-smart managed SG71070M provides 8 ports of 100M/1G/10G ethernet copper with RJ45 connectors and 2 slots for 1G/10G fiber optic SFP modules. All the RJ45 ports support automatic MDI/MDI-X operation, auto-negotiation, and IEEE 802.3x auto-negotiation of flow control. For the SFP slots, VERSITRON offers alarge selection of SFP modules (sold separately). Note: See Datasheet at the bottom of this page. These include 1G SFPs with distances to 100km and 10G SFPs with distances to 80km. The SG7107M also features full-duplex capability on all ports, effectively doubling the bandwidth of each connection. This product utilizes store-and-forward technology to ensure maximum data integrity. With this technology, the entire packet must be received into a buffer and checked for validity before forwarded. This prevents errors from being propagated through-out the network. The SG7107M delivers the robust features you need to protect your sensitive information and optimize your bandwidth.And it is easy to install and use.
SG71070M 10-Port 10/100/1000 Web Smart+ Managed Switch
Specifications |
|
|---|---|
| Number Of Ports: | 2-10 |
| Wavelength Range: | 1000-1600nm |
| Insertion Loss (typical): | - dB |
| Return Loss: | - dB |
Features
Provides 8 100M/1G/10G Ethernet Ports (RJ45)
Provides 2 1G/10G SFP fiber slots
All copper ports support auto-negotian and auto-MDI/MDI-X detection
Supports 10G and 1G speeds on all copper and fiber ports
LED indicators for port status and speed
Supports SFP and SFP+ fiber optic module technology
Supports VLAN, Spanning Tree/RSTP/MSTP, and Command-Line-Interference
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
External Vendor
Claim Versitron Page to edit and add data
Frequently Asked Questions
Yes, all copper ports on the SG71070M switch support auto-negotiation and auto-MDI/MDI-X detection.
Yes, the SG71070M switch supports VLAN, Spanning Tree/RSTP/MSTP, and Command-Line-Interference.
The SG71070M switch has 10 ports.
The SG71070M switch has a switching capacity of 200Gbps.
The SG71070M switch has 8 ports of 100M/1G/10G ethernet copper with RJ45 connectors and 2 slots for 1G/10G fiber optic SFP modules.
