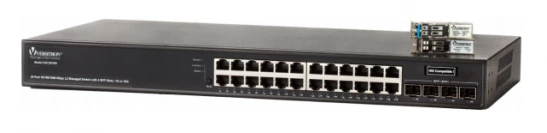

SG72870M 28-Port 10/100/1000 Layer 2 Plus Managed Switch
Description
Need a high-performance fiber optic switch to connect all your network computers or to support applications delivering data, voice, or video services? Then consider the SG72870M for reliable connectivity. This product provides 24 ports of 10/100/1000 with RJ45 connectors and 4 SFP slots which accept either 1G or 10G f.o. SFP modules. Central management and other network control capabilities allow the SG72870M to optimize bandwidth and support advanced network security. It is also easy to deploy and configure. In addition to the standard Ethernet copper features using Cat.5, Cat.5e, and Cat.6 cables, the flexibility offered by SFP modules enables the use of multimode, singlemode, and single f.o. cables with the SG72870M. 100km f.o. links are possible with the use of VERSITRON'S GB100SM f.o. 1GSFP modules. 80km distances can be accommodated at 10G speed with our 10GB80SM SFP module. The SG72870M is therefore ideal for extending your network nodes to remote locations using f.o. cable uplinks. This product also sports LLDP (Link Layer Discovery Protocol) to automatically discover all devices connected to the network.
SG72870M 28-Port 10/100/1000 Layer 2 Plus Managed Switch
Specifications |
|
|---|---|
| Number Of Ports: | 4-28 |
| Wavelength Range: | 1000-1600nm |
| Insertion Loss (typical): | - dB |
| Return Loss: | - dB |
Features
24 ports 10/100/1000
4 1G/10G SFP fiber slots
Compliant with IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
128 Gbps switch capacity
32K MAC Address Table
Supports jumbo frames to 9k
UpnP (universal plug and play)
LLDP (Link Layer Discovery Protocol)
Rack-mountable
SFP GBIC Module Technology
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
Yes, the SG72870M supports IPv6.
The SG72870M has 24 ports of 10/100/1000 with RJ45 connectors and 4 SFP slots.
LLDP stands for Link Layer Discovery Protocol, which is used to automatically discover all devices connected to the network.
The SG72870M has a switching capacity of 128Gbps and a throughput of 95.23Mpps.
The SG72870M supports Ethernet copper features using Cat.5, Cat.5e, and Cat.6 cables, as well as multimode, singlemode, and single f.o. cables with SFP modules.
