High-Precision 2x2 Fiber Interferometer for 1550nm Wavelength - CSRayzer
Description
Introducing the CSRayzer 2x2 Fiber Interferometer, a state-of-the-art optical device engineered for exceptional performance in the 1530 to 1570 nm operating bandwidth, optimized specifically for the 1550 nm wavelength. This high-precision instrument boasts an impressive coupling ratio of 50±1.5% and maintains maximum insertion loss at a minimal ≤3.6 dB, ensuring efficient signal transmission with minimal power loss.

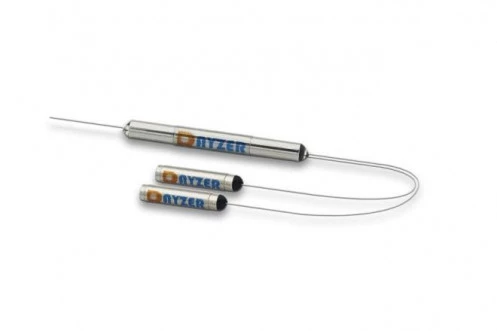

Designed with meticulous attention to detail, the interferometer features a compact coupler package (OD 2.4 x 30 mm) and an FRM package dimension of OD 2.5 x 12 mm, making it ideal for integration into a variety of optical systems. The device is configured with a precise 90±2° rotation angle and arms fiber lengths of 60 m and 60.52 m for OUT1 (Red) and OUT2 (Blue), respectively, accommodating intricate optical setups.
Crafted with BI 1015-B fiber type and a calculated 0.52 m length difference between the two arms, this interferometer is built for high-resolution applications. It operates reliably within a wide temperature range from -20°C to 85°C, ensuring consistent performance under diverse conditions. With its robust design and optimized specifications, the CSRayzer 2x2 Fiber Interferometer is the perfect solution for advanced optical research and telecommunications applications.
High-Precision 2x2 Fiber Interferometer for 1550nm Wavelength - CSRayzer
Specifications |
|
---|---|
Max Insertion Loss: | 3.5 dB |
Return Loss: | - dB |
Features
- Operating Bandwidth: Covers the 1530 to 1570 nm spectrum, ideal for various optical applications.
- Wavelength Optimization: Specifically designed for the 1550 nm wavelength, ensuring precise performance.
- Coupling Ratio: Maintains a high coupling ratio of 50±1.5% for efficient signal transfer.
- Low Insertion Loss: Achieves minimal insertion loss of ≤3.6 dB, preserving signal integrity.
- Compact Design: Features compact coupler and FRM package dimensions for seamless integration into optical setups.
- Precise Rotation Angle: Configured with a precise rotation angle of 90±2° for accurate alignment.
- Long Fiber Length: Arms feature lengths of 60 m (OUT1 Red) and 60.52 m (OUT2 Blue) to accommodate complex optical configurations.
- High-Quality Fiber: Utilizes BI 1015-B fiber type for reliable and consistent performance.
- Temperature Resilience: Operates reliably within a wide temperature range from -20°C to 85°C, ensuring stability in various environments.
- Versatile Applications: Suitable for advanced optical research, telecommunications, and other high-resolution optical systems.
Applications
The product is applied in variety harsh environments of strong electromagnetic interference, flammable and explosive working conditions, such as Fiber Optic Gyroscope, Optical Switch, Optical positioning device, and many other fields.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The 2x2 Fiber Interferometer is used in a variety of harsh environments with strong electromagnetic interference, flammable and explosive working conditions, such as Fiber Optic Gyroscope, Optical Switch, Optical positioning device, and many other fields.
The operating bandwidth of the 2x2 Fiber Interferometer is 1530~1570 nm.
The maximum insertion loss of the 2x2 Fiber Interferometer is ≤3.6 dB.
The operating temperature range of the 2x2 Fiber Interferometer is -20~85℃.
The length difference between the two arms of the 2x2 Fiber Interferometer is 0.52 meters.
