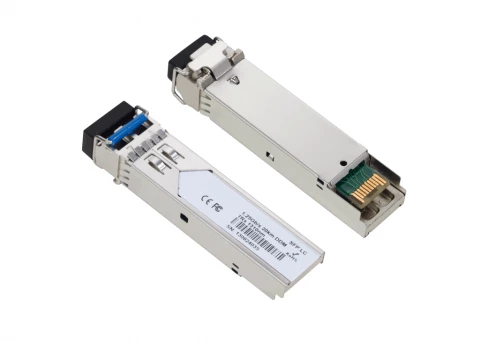

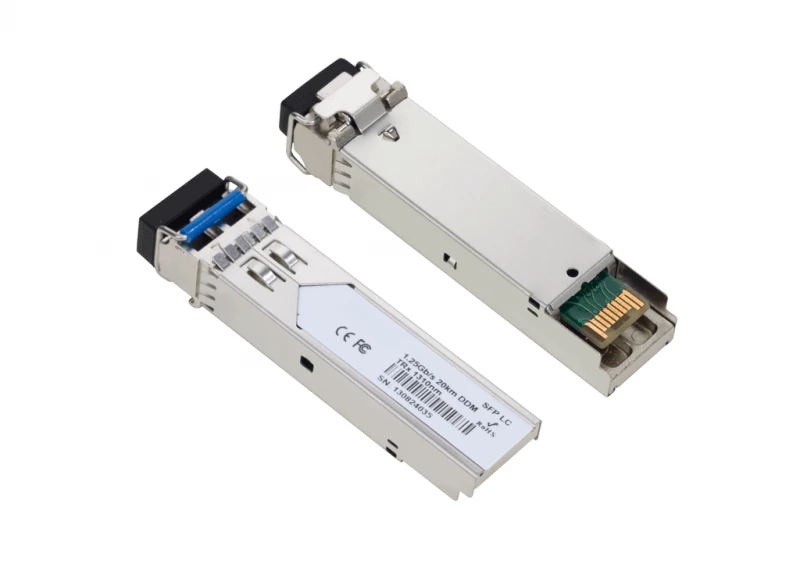

1.25Gb/s 20km SFP Transceiver
Description
FIBERROAD ’s FRSX-1L321C Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 20km application.
1.25Gb/s 20km SFP Transceiver
Specifications |
|
|---|---|
| Signaling Rate Per Lane (Transmitter): | 1.25 Gb/s |
| Signaling Rate Per Lane (Receiver): | 1.25 Gb/s |
| Lane Center Wavelength: | 1310 nm |
Features
- Up to 1.25Gb/s Data Links
- Hot-Pluggable
- Duplex LC connector
- Up to 20km on 9/125μm SMF
- 1310nm FP laser transmitter
- Single +3.3V Power Supply
- Monitoring Interface Compliant with SFF-8472
- Maximum Power <1W
- Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
- RoHS compliant and Lead Free
Applications
- Metro/Access Networks
- 1.25 Gb/s 1000Base-LX Ethernet
- 1×Fibre Channel
- Other Optical Links
