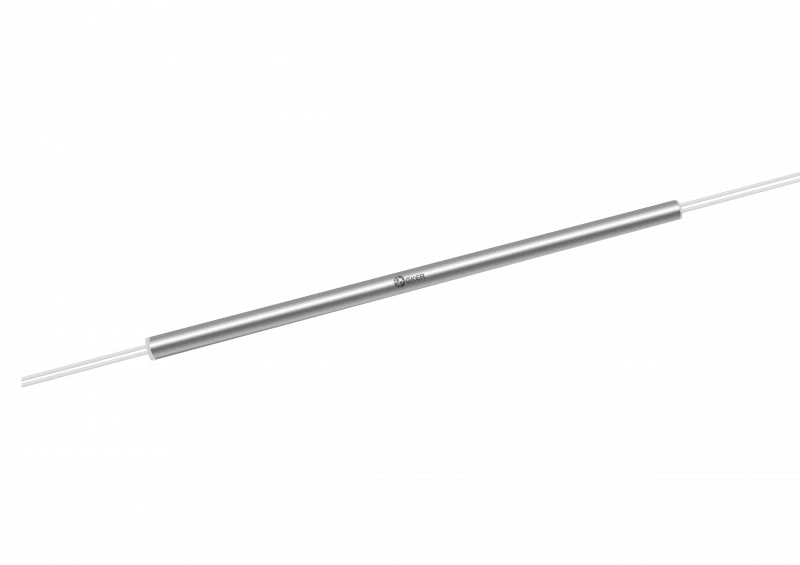

2 µm Polarization Maintaining Fused Wavelength Division Multiplexer-PMWDM Series
Description
The Polarization Maintaining Fused Wavelength Division Multiplexer combine or
separate light at different. They offer very low insertion loss, high extinction ratio, and excellent environmental stability.
2 µm Polarization Maintaining Fused Wavelength Division Multiplexer-PMWDM Series
Specifications |
|
---|---|
Operating Wavelength: | 2000 ± 20, or specified 1570 ± 20 650 ± 20 nm |
Operating Bandwidth: | - nm |
Isolation (min): | 10 15 15 20 dB |
Max Power Handling: | 300m W |
Polarization Maintaining: | Yes |
Longer Operating Wavelength: | 2000 ± 20, or specified nm |
Max. Insertion Loss: | 0.7 dB |
Min. Isolation: | 13 dB |
Min. Extinction Ratio: | 20 dB |
Shorter Operating Wavelength: | 1570 ± 20 800± 20 650 ± 20 nm |
Max. Insertion Loss: | 0.7 0.7 1.5 dB |
Min. Isolation: | 15 15 10 dB |
Thermal Stability: | ≤ 0.005 dB/℃ |
Min. Return Loss: | 55 dB |
Min. Directivity: | 55 dB |
Max. Optical Power (Continuous Wave): | 300 mW |
Fiber Type: | PM 1550 Panda fiber - |
Operating Temperature: | - 5 to + 70 ℃ |
Storage Temperature: | - 40 to + 85 ℃ |
