Fiber-Optic Michelson Interferometer
Description

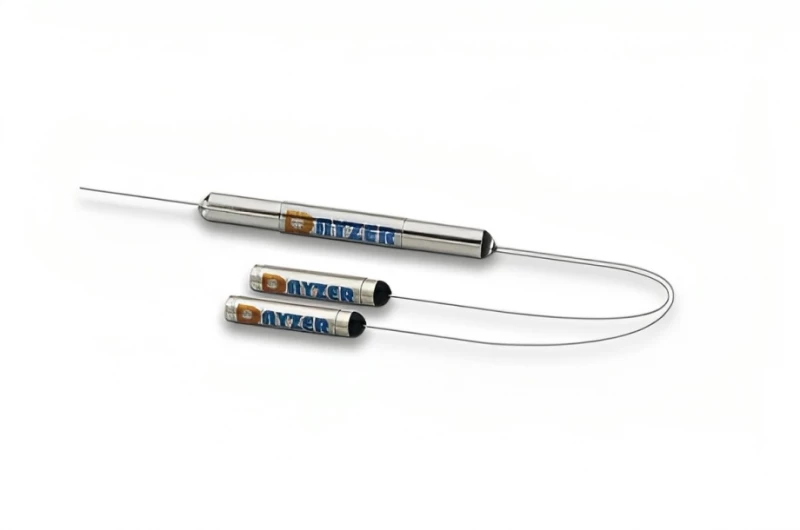

This is a Fiber-Optic Michelson Interferometer manufactured by CSRayzer Optical Technology. It operates at 1550 nm wavelength and features a generous optical bandwidth and low insertion loss.
Fiber-Optic Michelson Interferometer is an ideal choice for application in various underwater acoustic system, geophysical system. It is also a widely used in fiber sensors and distributed fiber sensing. Thanks to its non-electric attributes and high performance parameters it is highly sought in non-contact and non-invasive procedures.
Fiber-Optic Michelson Interferometer employs the phenomenon of fiber optic interference. By replacing the lens system, the fiber optical path becomes flexible, allowing the shape to be changed and adding the benefit of ability to work over large distances.
Its robust construction makes this interferometer suitable for a variety harsh environments of strong electromagnetic interference, flammable and explosive working conditions.
Fiber-Optic Michelson Interferometer
Specifications |
|
|---|---|
| Operating Wavelength: | 1550 nm |
| Operating Bandwidth: | 40 nm |
| Isolation (min): | - dB |
| Max Power Handling: | 0.5 W |
| Polarization Maintaining: | No |
| Excess Loss: | 0.3 dB |
| Directivity: | 55 dB |
| Polarization Dependent Loss: | 0.25 dB |
| Insertion Loss: | 0.7 dB |
| Max Tensile Load: | 5 N |
| Fiber Type: | SMF28e bare fiber | 7/125um BI bare fiber | 7/80umBL bare fiber |
Features
This Fiber-Optic Michelson Interferometer features the following key attributes:
- Low insertion loss
- Generous optical bandwidth
- Robust sealed packaging
Applications
Thanks to its robust performance characteristics this fiber-optic interferometer finds use in the following applications:
- Fiber Sensors
- Optical Fiber Underwater Acoustic System
- Optical Fiber Geophysical System
- Distributing Fiber Sensing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The operating wavelength of the Fiber-Optic Michelson Interferometer is 1550 nm.
The key features of the Fiber-Optic Michelson Interferometer are low insertion loss and generous optical bandwidth.
The Fiber-Optic Michelson Interferometer can be used in fiber sensors, optical fiber underwater acoustic systems, optical fiber geophysical systems, and distributed fiber sensing.
The Fiber-Optic Michelson Interferometer is suitable for harsh environments with strong electromagnetic interference, flammable and explosive working conditions.
The parameters of the Fiber-Optic Michelson Interferometer include center wavelength, excess loss, directivity, insertion loss, and operating temperature.
