Fiber Optic Tunable Filter
Description

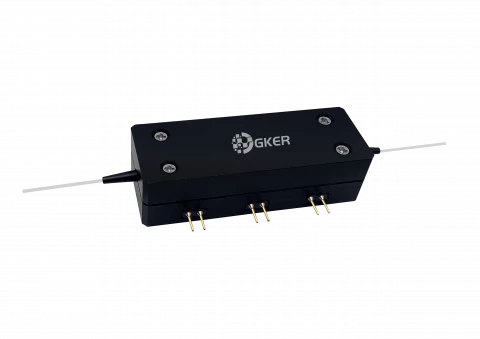

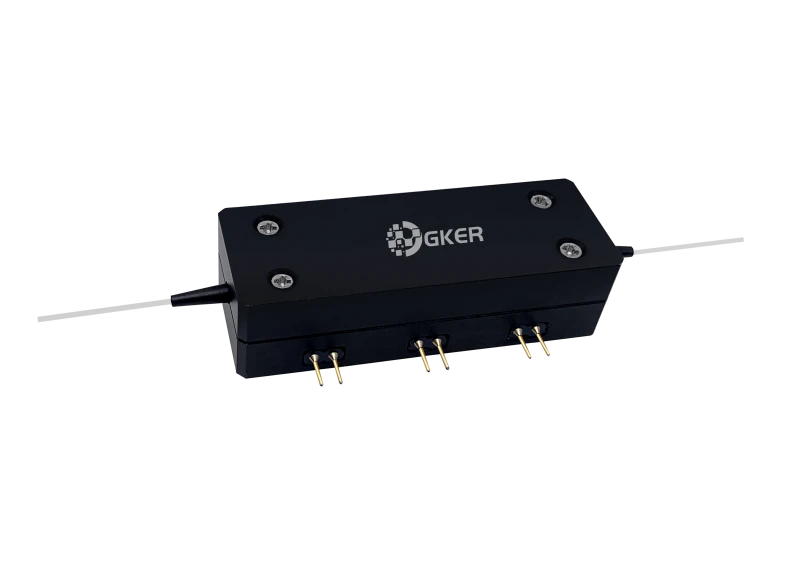

The Fiber Optic Tunable Filter (FOTF) from GKER Photonics represents a cutting-edge solution in fiber optic technology, utilizing advanced fiber Fabry-Perot interferometer principles. This high-performance filter is designed for precise wavelength tuning across a wide spectral range, driven by a sophisticated piezoelectric actuator. The GK-FOTF Series excels in delivering high accuracy and fast tuning rates, essential for various optical applications.
Featuring a typical Free Spectral Range (FSR) of 150 ±20 nm and a finesse of up to 400, the FOTF provides exceptional wavelength resolution and stability. It achieves minimal insertion loss, with a maximum peak value of 2.5 dB, ensuring efficient signal transmission. The filter also maintains a high Pass Bandwidth of 2.5 nm at -3 dB, facilitating effective signal processing.
The device is engineered for broad operational flexibility, supporting both the C and L bands, with a tuning range extending up to 200 nm as an option. With a resonant frequency of 65 kHz or 75 kHz, the FOTF offers rapid wavelength adjustments, making it ideal for applications requiring swift and accurate filtering. The filter's low polarization-dependent loss (PDL) and high environmental stability ensure reliable performance across varying conditions.
Built with robust temperature stability, it operates within a temperature range of -10°C to +70°C, while its storage temperature range extends from -40°C to +85°C. The GK-FOTF Series is compatible with standard Single Mode Fiber (SMF-28e+), making it a versatile choice for wavelength scanning, spectrum analysis, signal selection, and noise rejection in both research and industrial environments. The device is housed in a compact form factor, measuring 13.5 x 18 x 50 mm, suitable for integration into various optical systems.
Fiber Optic Tunable Filter
Specifications |
|
|---|---|
| Operating Wavelength: | C + L band nm |
| Operating Bandwidth: | FSR / Fineness nm |
| Isolation (min): | - dB |
| Max Power Handling: | 50 20 10 4 2 W |
| Polarization Maintaining: | No |
| Wavelength Range: | C + L band nm |
| Typ. FSR: | 100-200 optional nm |
| Typ. Finesse: | 400 1000 2000 5000 10000 - |
| Max. Peak Insertion Loss: | 1.2 1.6 1.4 2 2.5 dB |
| Max. Optical Power: | 50 20 10 4 2 mW |
| Typ. Pass Bandwidth @ -3dB: | FSR / Fineness nm |
| Resonant Frequency: | 65 ± 10 75 ± 10 kHz |
| Voltage/FSR For DC Bias: | 20 ± 5 40 ± 5 V |
| Max. Tuning Voltage: | 80 V |
| Fiber Type: | SMF-28e+ - |
| Resistance Of NTC Thermistor @ 25°C: | 5 kΩ |
| Operating Temperature: | 10 to +50 ℃ |
| Storage Temperature: | -10 to +70 ℃ |
| Dimensions: | 13.5 x 18 x 50 mm |
Features
- Wide Wavelength Range: Operates across C and L bands, with optional ranges up to 200 nm
- High Finesse: Typical finesse values of 400 for precise wavelength resolution
- Fast Tuning: Resonant frequency options of 65 kHz or 75 kHz for rapid wavelength adjustments
- Low Insertion Loss: Maximum peak insertion loss of 2.5 dB, ensuring minimal signal attenuation
- Broad Pass Bandwidth: Typical pass bandwidth of 2.5 nm at -3 dB for effective signal transmission
- Temperature Stability: Operates within a temperature range of -10°C to +70°C for reliable performance
Applications
- Wavelength Scanning: Ideal for dynamic wavelength scanning in optical testing and measurement
- Spectrum Analysis: Facilitates detailed spectrum analysis with high resolution and accuracy
- Signal Selection: Enables precise selection of specific wavelengths in complex optical networks
- Noise Rejection: Efficiently filters out unwanted noise, improving overall signal quality.
