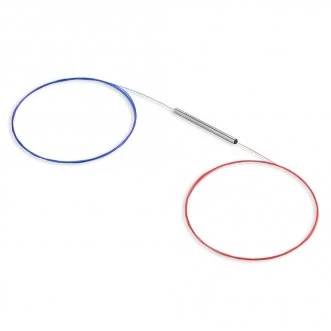

High Temperature of 200°C 1310nm/1550nm Single Mode Fiber WDM
Description
The high temperature of 200°C Filter WDM 1310/1550nm Fiber Optic Components utilized thin-film filter technology. It multiplexes & demultiplexes wavelengths at 1310nm, 1490nm & 1550nm that carry the voice, data and video services. Its used in the "triple-play" FTTH systems with 1 to 2 port configuration. 3 wavelengths are fed into the device through the common input port, one wavelength is reflected from one output port, simultaneously, the other 2 wavelengths pass through the device at other output port.
The passive optic device is ideal for splitting or combining light with exceptional performance over a wide wavelength range and widely used for aerospace, petroleum service systems, military applications and other special optical networks.
High Temperature of 200°C 1310nm/1550nm Single Mode Fiber WDM
Specifications |
|
|---|---|
| Operating Wavelength: | 1310/1550 nm |
| Operating Bandwidth: | 15nm nm |
| Isolation (min): | 15 dB |
| Max Power Handling: | 5 W |
| Polarization Maintaining: | No |
Features
- High Sustained Temperature of 200°C
- High Directivity
- Low PDL
- Stable and Reliable
Applications
- Aerospace
- Petroleum Service Systems
- Military Applications
- Special Optical Network
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The laser instrument has a high sustained temperature of 200°C.
This laser instrument multiplexes and demultiplexes wavelengths at 1310nm, 1490nm, and 1550nm.
This laser instrument is commonly used in aerospace, petroleum service systems, military applications, and other special optical networks.
The features of this laser instrument include high directivity, low PDL (Polarization Dependent Loss), and stable and reliable performance.
This laser instrument has a 1 to 2 port configuration.
