Mini CWDM 1x8 (+1)
Description
The LFIBER Free-Space Compact CWDM 1×8 (+1) module is a high-performance optical multiplexer designed for efficient wavelength management in dense communication systems. Featuring a compact form factor and leveraging cutting-edge free-space optics, this CWDM module supports both unidirectional and bidirectional transmission across eight CWDM channels plus one upgrade port. It operates over the standardized ITU grid, with central wavelengths ranging from 1270 nm to 1610 nm.
Engineered for low insertion loss, high channel isolation, and exceptional return loss, it is ideal for demanding applications in metro networks, access networks, and optical add/drop multiplexing systems. The module comes in three performance grades—Ultra Low Loss (U), P Grade, and A Grade—to accommodate varying network requirements. Each configuration is SMF-28e fiber compatible and supports high optical power up to 300 mW.
Compact and customizable, this CWDM solution is engineered for high reliability and environmental stability, with operating temperature ranges from -5°C to +70°C or optionally -40°C to +85°C. Designed for easy integration into space-constrained systems, it meets the stringent demands of modern telecom infrastructures.
Mini CWDM 1x8 (+1)
Specifications |
|
|---|---|
| Operating Wavelength: | 1271 nm |
| Operating Bandwidth: | 13 nm |
| Isolation (min): | 40 dB |
| Max Power Handling: | 300 W |
| Polarization Maintaining: | No |
| Connector: | None, LC/UPC, LC/APC, SC/UPC, SC/APC, Custom … |
| Channel Number (CH): | 8 |
| Fiber Type: | SMF-28e Compatible; 900 μm Loose Tube |
| Central Wavelength (nm): | 1271 to 1611; 1270 to 1610 |
| Operating Temperature (°C): | -5 to +70 (Commercial); -40 to +85(Industrial) |
| Insertion Loss: | ≤1.0 dB |
| Passband Bandwidth: | ≥13 nm |
| Adjacent Channel Isolation: | ≥30 dB |
| Return Loss: | ≥45 dB |
| Directivity: | ≥55 dB |
| Polarization Dependent Loss (PDL): | ≤0.2 dB |
| Polarization Mode Dispersion (PMD): | ≤0.2 ps |
| Operating Temperature: | -5 to +70 °C |
| Storage Temperature: | -40 to +85 °C |
| Package Dimensions: | 44 × 28 × 6 mm |
Features

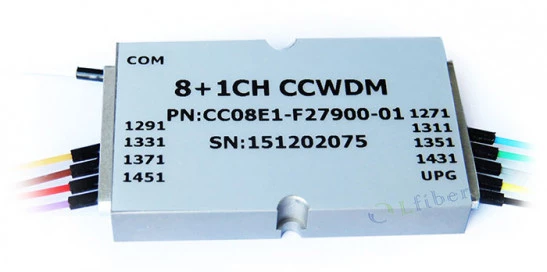

- Ultra Compact Design: Small footprint (44×28×6 mm) ideal for tight integration or custom packages
- Unidirectional & Bidirectional WDM: Flexible for a wide range of network designs
- Low Insertion Loss: As low as ≤1.0 dB (Ultra Grade), ensuring minimal signal degradation
- High Channel Isolation: ≥30 dB adjacent and ≥45 dB non-adjacent channels
- ITU-T Grid Compliant: Covers wavelengths from 1270 to 1610 nm with 20 nm spacing
- Excellent Reliability: Free-space architecture ensures long-term optical stability
- High Optical Power Handling: Supports up to 300 mW of continuous wave input
Applications
- Optical Add/Drop Multiplexing: Enables selective channel routing in WDM networks
- Telecom Core & Access Networks: Perfect for expanding bandwidth capacity cost-effectively
- Metro Networks: Compact design suitable for dense urban infrastructure
- Bidirectional WDM Links: Ideal for reducing fiber usage in point-to-point systems
- Network Upgrades: Supports an extra channel (+1) for future expansion
