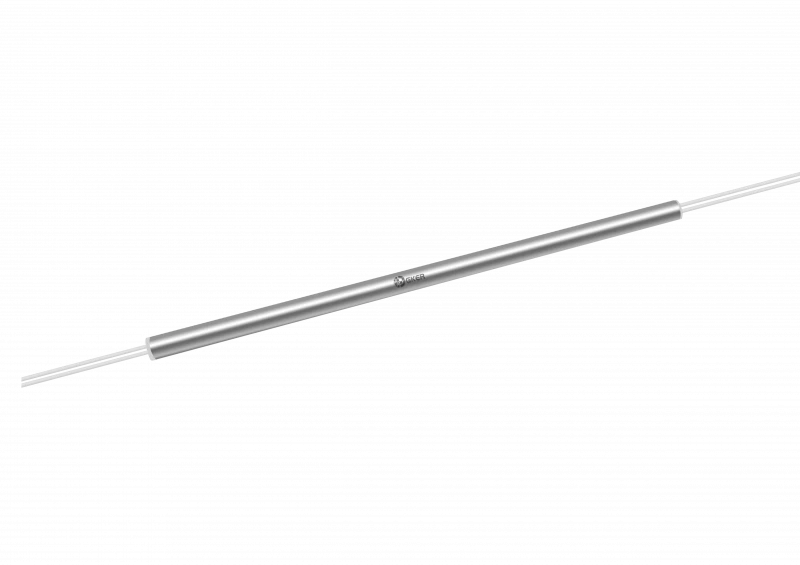

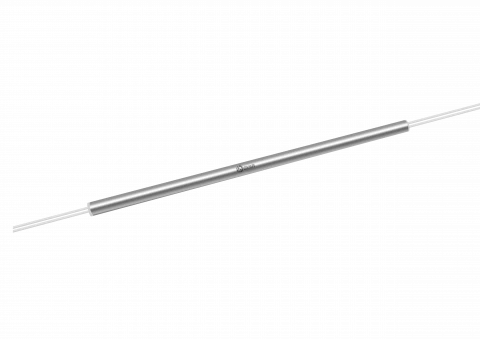

Polarization Maintaining Fused Wavelength Division Multiplexer (980/1550)-PMWDM Series
Description
The Polarization Maintaining Fused Wavelength Division Multiplexer combine or
separate light at different wavelengths. They offer very low insertion loss, high
extinction ratio, and excellent environmental stability. These components can be
operated on both fast and slow axis.
Polarization Maintaining Fused Wavelength Division Multiplexer (980/1550)-PMWDM Series
Specifications |
|
---|---|
Operating Wavelength: | 1550 ± 20 nm |
Operating Bandwidth: | - nm |
Isolation (min): | 17 dB |
Max Power Handling: | 300m W |
Polarization Maintaining: | Yes |
Longer Operating Wavelength: | 1550 ±20 nm |
Max. Insertion Loss¹: | 0.7 dB |
Min. Isolation¹: | 17 dB |
Min. Extinction Ratio²: | 20 dB |
Shorter Operating Wavelength: | 980 ±10 nm |
Max. Insertion Loss¹: | 0.7 dB |
Min. Isolation¹: | 17 dB |
Thermal Stability: | ≤0.005 dB/℃ |
Min. Return Loss³: | 55 dB |
Min. Directivity: | 55 dB |
Max. Optical Power (Continuous Wave): | 300 mW |
Fiber Type: | PM Panda Fiber - |
Operating Temperature: | - 5 to + 70 ℃ |
Storage Temperature: | - 40 to + 85 ℃ |
Features
High Extinction Ratio
Low Insertion Loss
Excellent Environmental Stability
Applications
Fiber Laser
Fiber Amplifier
