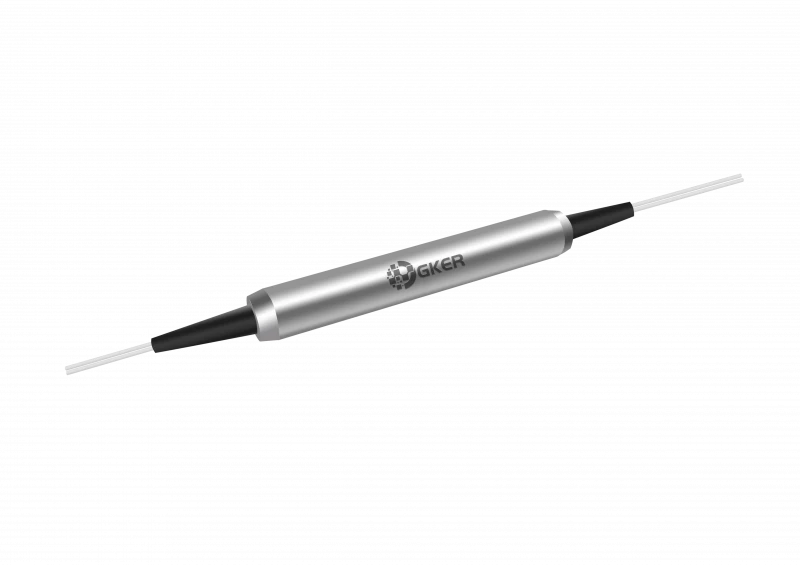

Singlemode Wavelength Division Multiplexer (1310/1550, 1480/1550) -WDM Series
Description
The Singlemode Wavelength Division Multiplexers combine or separate light at different
wavelengths. They offer very low insertion loss, low polarization dependence, high isolation
and excellent enviromental stability. These components have been extensively used in EDFA,
CATV, WDM networks and fiber optics instrumentation.
Singlemode Wavelength Division Multiplexer (1310/1550, 1480/1550) -WDM Series
Specifications |
|
|---|---|
| Operating Wavelength: | λc ± 15 λc ± 5 nm |
| Operating Bandwidth: | - nm |
| Isolation (min): | 17 13 dB |
| Max Power Handling: | 300m W |
| Polarization Maintaining: | No |
| Center Wavelength (λc): | 1310/1550 1480/1550 nm |
| Operation Wavelength: | λc ± 15 λc ± 5 nm |
| Min. Isolation: | 17 13 dB |
| Max. Insertion Loss: | 0.20 0.35 dB |
| Max. Polarization Dependent Loss: | 0.1 0.2 dB |
| Thermal Stability: | ≤ 0.002 over -5 °C to +70 °C dB/℃ |
| Min. Return Loss: | 60 dB |
| Directivity: | 60 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Fiber Type: | SMF-28 Fiber - |
| Package Dimensions: | 250 µm Bare Fiber, Φ3.0 × 40 mm for 1310/1550 (3.0 × 55 mm for 1480/1550) 900 µm Loose Tube, Φ3.0 × 56 mm for 1310/1550 (3.0 × 72 mm for 1480/1550) 3 mm Cable, 90 × 16 × 9 mm mm |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
