Singlemode Wavelength Division Multiplexers 980/1550nm
Description

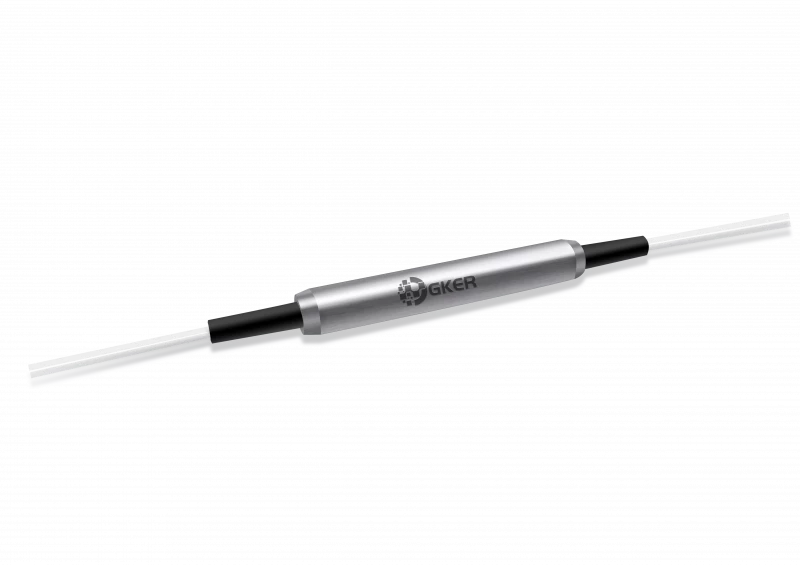

Description: The GKER Photonics Singlemode Wavelength Division Multiplexers (GK-WDM Series) are high-performance optical devices engineered to combine or separate light at 980 nm and 1550 nm wavelengths. Designed for precision and reliability, these multiplexers utilize state-of-the-art thin-film filter technology, which ensures exceptionally low insertion loss, minimal polarization dependence, and high isolation. This advanced technology is critical in applications where signal clarity and integrity are paramount, such as in Erbium-Doped Fiber Amplifiers (EDFA), Cable Television (CATV) systems, and Wavelength Division Multiplexing (WDM) networks.
The GK-WDM Series components are characterized by their low insertion loss of just 0.15 dB, making them highly efficient in maintaining signal strength. With a minimum isolation of 20 dB, they effectively prevent signal interference, while the polarization dependent loss is kept to a maximum of 0.1 dB, ensuring that polarization effects do not significantly impact performance. These multiplexers also offer excellent thermal stability, with a thermal stability factor of ≤ 0.002 dB/℃, which allows them to perform reliably across a broad temperature range from -40℃ to +75℃.
The devices are capable of handling up to 300 mW of continuous optical power, making them suitable for high-power applications. Their robust design ensures durability and long-term stability, even under challenging environmental conditions. The GK-WDM Series is available in various configurations and fiber options, allowing for flexible integration into diverse optical systems. Whether used in telecommunications, fiber optics instrumentation, or other advanced optical networks, these multiplexers deliver outstanding performance and reliability.
Singlemode Wavelength Division Multiplexers 980/1550nm
Specifications |
|
|---|---|
| Operating Wavelength: | λc ± 15 nm |
| Operating Bandwidth: | - nm |
| Isolation (min): | 20 dB |
| Max Power Handling: | 300 W |
| Polarization Maintaining: | No |
| Center Wavelength (λc): | 980/1550 nm |
| Operating Wavelength: | λc ± 15 nm |
| Min. Isolation: | 20 dB |
| Max. Insertion Loss: | 0.15 dB |
| Max. Polarization Dependent Loss: | 0.1 dB |
| Thermal Stability: | ≤ 0.002 dB/℃ |
| Min. Return Loss: | 60 dB |
| Min. Directivity: | 60 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Operating Temperature: | -40 to +75 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Low Insertion Loss: Minimizes signal attenuation with a maximum insertion loss of 0.15 dB
- High Isolation: Ensures minimal signal interference with a minimum isolation of 20 dB
- Low Polarization Dependent Loss: Reduces polarization effects with a maximum polarization dependent loss of 0.1 dB
- Excellent Thermal Stability: Maintains consistent performance with thermal stability of ≤ 0.002 dB/℃
- High Return Loss: Provides excellent signal reflection with a minimum return loss of 60 dB
- High Optical Power Handling: Capable of managing up to 300 mW of continuous optical power
- Durable Construction: Operates reliably across a wide temperature range from -40℃ to +75℃
Applications
- EDFA: Enhances the performance of Erbium-Doped Fiber Amplifiers by combining or separating specific wavelengths
- CATV: Ideal for Cable Television systems, ensuring clear signal transmission
- WDM Networks: Optimizes Wavelength Division Multiplexing networks by managing multiple wavelengths in a single fiber
- Fiber Optics Instrumentation: Ensures precise measurement and analysis in fiber optics systems
