Faraday Mirror

The 1064nm Faraday Mirror is a passive device that provides 45 or 90 degree rotation regarding to the polarization state of the input light. It is a fiber optic polarization rotation mirror designed for fiber optic networks and measurement applications.  The device can help to eliminate polarization sensitivity of an optical ...

Specifications

Center Wavelength: 1064 nm
Operating Bandwidth: 30 nm
Insertion Loss (max): 5 dB
Faraday Rotation Angle (single Pass): 45 deg deg
The 1480nm Faraday Mirror is a passive optical device designed to rotate the polarization state of light by 45° or 90°, depending on the configuration. Utilizing the Faraday effect, achieved through a bismuth iron garnet (BIG) crystal placed in a magnetic field, this mirror effectively suppresses back-reflections and ...

Specifications

Center Wavelength: 1480 nm
Operating Bandwidth: 30 nm
Insertion Loss (max): 0.6 dB
Faraday Rotation Angle (single Pass): 45 deg deg
The 1550nm Faraday Mirror is a passive optical component designed to rotate the polarization state of light by 45° or 90°, depending on the configuration. It utilizes the Faraday effect, achieved through a bismuth iron garnet (BIG) crystal placed in a magnetic field, to induce non-reciprocal polarization rotation. This ...

Specifications

Center Wavelength: 1550 nm
Operating Bandwidth: 30 nm
Insertion Loss (max): 0.6 dB
Faraday Rotation Angle (single Pass): 45 deg deg

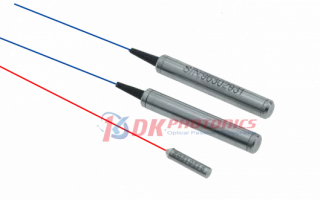

The 1950nm Faraday Mirror is a sophisticated optical component designed to manage polarization in fiber optic systems. It operates by rotating the polarization plane of light passing through it, offering precise 45° or 90° polarization rotation. This passive device is critical for systems that demand high polarization ...

Specifications

Center Wavelength: 1950 nm
Operating Bandwidth: 30 nm
Insertion Loss (max): 0.9 dB
Faraday Rotation Angle (single Pass): 45 deg deg
The 2050nm Fiber Optic Faraday Mirror is a high-performance optical component specifically designed to provide robust polarization control in advanced fiber optic systems. The Faraday Mirror is a passive device that provides 45- or 90-degree rotation regarding to the polarization state of the input light. It is a fiber optic ...

Specifications

Center Wavelength: 2050 nm
Operating Bandwidth: 30 nm
Insertion Loss (max): 0.9 dB
Faraday Rotation Angle (single Pass): 45 deg deg

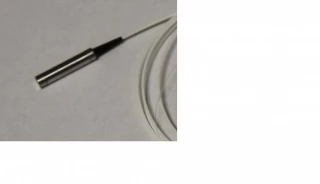

The FRDMR Faraday Rotator Mirror, with fiber, by Ascentta, Inc., combines a faraday rotator with a mirror. Light passes through the faraday rotator (45 degree rotation) and is reflected back through the pigtail for a total rotation of 90 degrees. The faraday rotator mirror ensures low insertion loss and the faraday rotator technology ...

Specifications

Center Wavelength: 1310 nm
Operating Bandwidth: -30 nm
Insertion Loss (max): 0.6 dB
Faraday Rotation Angle (single Pass): 45 deg deg
Rotation Angle Tolerance Over Wavelength And Temperature: +/-5 deg
The FRM-1550-2.5X12-SMF28e-1-0-N is a high-quality fiber-optic model in our 1550nm single mode Faraday Rotor Mirror series that operates at a center wavelength of 1550±20 nm. This device features a 90-degree rotation angle and an insertion loss of passband of ≤0.6 dB, making it ideal for a range of applications that require ...

Specifications

Center Wavelength: 1550 nm
Operating Bandwidth: 40 nm
Insertion Loss (max): 0.6 dB
Faraday Rotation Angle (single Pass): 90 deg deg
Max Average Power: 500 mW
CSRAYZER's Faraday Rotator Mirror is used for eliminating polarization-induced fluctuations in fiber interferometers, Brillouin amplifiers, fiber laser, fiber sensors, and fiber optic antenna remoting systems, with excellent optical performance index, ultra-small package size, high environmental adaptability, and reliability.

Specifications

Center Wavelength: 1550 nm
Operating Bandwidth: 20 nm
Insertion Loss (max): 0.8 dB
Faraday Rotation Angle (single Pass): 90 deg deg
Working Axis: Slow Axis Input, Both Axis Working
CSRAYZER's Faraday Rotator Mirror is used for eliminating polarization-induced fluctuations in fiber interferometers, Brillouin amplifiers, fiber lasers, fiber sensors, and fiber optic antenna remoting systems, with excellent optical performance index, ultra-small package size, high environmental adaptability, and reliability.

Specifications

Center Wavelength: 1550 nm
Operating Bandwidth: 10 nm
Insertion Loss (max): 0.5 dB
Faraday Rotation Angle (single Pass): 90 deg deg
Max. Average Power: 300 mW
CSRAYZER's Faraday Rotator Mirror, is used for eliminating polarization induced fluctuations in fiber interferometers, Brillouin amplifier, fiber laser, fiber sensor, and fiber optic antenna remoting systems, with excellent optical performance index, ultra-small package size, high environmental adaptability and reliability.

Specifications

Center Wavelength: 1550 nm
Operating Bandwidth: 20 nm
Insertion Loss (max): 0.6 dB
Faraday Rotation Angle (single Pass): 90 deg deg
MAX. Average Power: 500 mW
The Faraday Mirror is a passive device that provides 45- or 90-degree rotation regarding to the polarization state of the input light. It is a fiber optic polarization rotation mirror designed for fiber optic networks and measurement applications. The device can help to eliminate polarization sensitivity of an optical fiber ...

Specifications

Center Wavelength: 1310 nm
Operating Bandwidth: 30 nm
Insertion Loss (max): 0.6 dB
Faraday Rotation Angle (single Pass): 45 deg deg
Faraday rotators change the polarization state of light traveling through it. The output polarization state is rotated by 45 degrees with respect to the input polarization. When combined with a mirror, the reflected light is rotated by another 45 degrees, resulting in a 90 degree rotation.  In addition, the polarization ...

Specifications

Center Wavelength: 1550 nm
Operating Bandwidth: 1064 nm
Insertion Loss (max): 0.75 dB
Faraday Rotation Angle (single Pass): 45 deg deg

Frequently Asked Questions

A Faraday mirror, also known as a Faraday isolator, is a device used to control the polarization of light in optical fiber systems. It consists of a Faraday rotator, which rotates the polarization of light passing through it, and a polarizer, which only allows light with a specific polarization to pass through. Together, these components create a one-way light path that allows light to enter but not exit in the opposite direction, which can prevent interference caused by back-reflections in the fiber.

A Faraday mirror works by using the magneto-optic effect, which causes the polarization of light to rotate when passing through a magnetic field. In a Faraday mirror, a polarized light beam enters the Faraday rotator, which is a material that rotates the polarization of the light by a fixed amount. The light beam then passes through a polarizer, which only allows light with a specific polarization to pass through, creating a one-way path. The Faraday mirror can also be used to eliminate back-reflections in the fiber, which can cause signal distortion and reduce transmission quality.

Faraday mirrors are used in a variety of applications in optical fiber systems, including telecommunications, laser systems, and optical sensing. In telecommunications, Faraday mirrors are used to reduce back-reflections and increase signal quality. In laser systems, Faraday mirrors are used to isolate the laser from back-reflections that could cause instability or damage to the laser. In optical sensing, Faraday mirrors are used to detect changes in polarization caused by external magnetic fields.

The advantages of using a Faraday mirror include reduced back-reflections, improved signal quality, and increased laser stability. By preventing back-reflections, Faraday mirrors can reduce signal distortion and improve the overall quality of data transmission. Additionally, by isolating lasers from back-reflections, Faraday mirrors can increase the stability and reliability of laser systems. Finally, the ability of Faraday mirrors to detect changes in polarization caused by external magnetic fields makes them useful for optical sensing applications.

The main limitations of using a Faraday mirror are the cost and the size of the device. Faraday mirrors can be relatively expensive and are often larger than other polarization control devices, which can make them difficult to integrate into certain optical systems. Additionally, Faraday mirrors can be sensitive to temperature and magnetic field fluctuations, which can affect their performance.

Understanding Faraday Mirrors: A Cornerstone in Polarization Control

In modern optical and fiber communication systems, managing polarization is critical to ensuring signal integrity, especially in high-precision environments such as interferometry, sensing, and laser systems. One of the most effective tools for achieving this control is the Faraday mirror—a compact yet powerful component that reflects light while rotating its polarization by 90 degrees. This seemingly simple behavior plays a vital role in eliminating polarization-induced errors in fiber optic systems.

What Is a Faraday Mirror?

A Faraday mirror, sometimes called a Faraday rotator mirror, is an optical device that reflects incoming light with a 90-degree polarization rotation using the Faraday effect. This is a magneto-optic phenomenon where the polarization plane of light is rotated when it travels through a magnetic material under the influence of a magnetic field. In practical implementation, a typical Faraday mirror is made by combining a Faraday rotator and a highly reflective mirror.

When light passes through the Faraday rotator and is reflected back by the mirror, it traverses the rotator again—resulting in a total polarization rotation of 90 degrees regardless of the direction of the incoming light. This unique feature is what sets the Faraday mirror apart in polarization-sensitive applications.

Why Polarization Rotation Matters

In standard fiber optics, birefringence caused by stress, temperature variations, and physical bends in the fiber can alter the polarization state of light, leading to signal distortion or loss. By reflecting the light with a 90-degree polarization shift, Faraday mirrors compensate for birefringence, effectively canceling out the polarization changes that occur during forward and backward propagation in the fiber.

This makes Faraday mirrors indispensable in fiber interferometers, optical sensing systems, and polarization-maintaining (PM) fiber circuits, where phase stability and signal fidelity are paramount.

Key Applications of Faraday Mirrors

  1. Fiber Optic Sensors
    Faraday mirrors are commonly used in distributed and point fiber optic sensing systems to ensure consistent polarization states. In interferometric sensing, they help maintain phase coherence by compensating for random polarization drifts, enabling accurate measurements in temperature, pressure, and acoustic monitoring applications.

  2. Optical Coherence Tomography (OCT)
    In medical imaging systems such as OCT, polarization-sensitive measurements are crucial. Faraday mirrors improve image quality and system stability by minimizing polarization-induced noise.

  3. Interferometric Fiber Gyroscopes (IFGs)
    IFGs rely on coherent interference between counter-propagating light beams in a fiber coil. Faraday mirrors help stabilize the polarization state of light in such systems, enhancing the sensitivity and accuracy of rotational measurements.

  4. Telecommunications and Fiber Lasers
    In fiber optic communication and fiber laser cavities, Faraday mirrors serve to stabilize optical feedback, especially in systems where polarization mode dispersion (PMD) can impact performance.

  5. Quantum Communication Systems
    Quantum key distribution (QKD) systems benefit from the use of Faraday mirrors to maintain polarization entanglement across long fiber links, reducing bit error rates and improving secure data transmission.

Benefits of Using Fiber Optic Faraday Mirrors

  • Automatic Birefringence Compensation: The inherent 90-degree polarization rotation ensures that polarization fluctuations introduced by the optical fiber are reversed upon reflection.

  • Compact and Passive: These mirrors are passive devices requiring no external power source, making them ideal for integration into compact and field-deployable systems.

  • Improved Signal Stability: Particularly in interferometry, Faraday mirrors enhance system robustness by eliminating phase errors caused by polarization drift.

  • Cost-Effective Polarization Control: Faraday mirrors provide a simple and economical solution compared to more complex polarization control systems.

Design Considerations

When selecting a fiber optic Faraday mirror, several specifications must be considered:

  • Operating Wavelength: Commonly available in 1310nm, 1550nm, or custom ranges for specialized applications.

  • Return Loss and Insertion Loss: High return loss (typically >50 dB) and low insertion loss (typically <1 dB) are desirable for maintaining signal quality.

  • Polarization Extinction Ratio (PER): For PM fibers, a high PER ensures that the reflected light maintains a well-defined polarization state.

  • Power Handling: Depending on the application, ensure the mirror can handle the optical power without inducing thermal or nonlinear effects.

Emerging Trends

As fiber optic systems evolve, particularly in quantum optics and photonic sensing, the role of Faraday mirrors continues to expand. Manufacturers now offer integrated Faraday mirror assemblies with built-in isolators, circulators, or couplers to streamline system architecture and improve performance.

The demand for compact, high-reliability, and low-cost polarization control components is pushing innovation in Faraday mirror technology, with designs that support wider bandwidths, higher power thresholds, and even environmental hardening for aerospace and defense applications.

Conclusion

The Faraday mirror is a vital building block in optical systems that demand precision polarization control. Its ability to inherently compensate for fiber birefringence makes it indispensable in advanced interferometry, sensing, and communication systems. Whether you are designing a fiber-based sensor, a quantum communication link, or a fiber laser cavity, integrating a Faraday mirror can significantly enhance performance, stability, and reliability.

Looking for a high-quality fiber optic Faraday mirror? Explore FindLight’s curated selection of fiber isolators, circulators, and polarization control components to find the ideal match for your system requirements.

Did You know?

Faraday mirrors, also known as Faraday isolators, are optical devices used to control the polarization of light in fiber optic systems. They consist of a Faraday rotator and a polarizer, which together create a one-way light path that allows light to enter but not exit in the opposite direction, thereby preventing back-reflections and signal distortion in the fiber. The Faraday rotator is a material that rotates the polarization of light passing through it by a fixed amount, using the magneto-optic effect. This effect occurs when light passes through a magnetic field, causing its polarization to rotate. The polarizer only allows light with a specific polarization to pass through, creating a one-way path. Faraday mirrors are commonly used in telecommunications, laser systems, and optical sensing applications, where they offer benefits such as improved signal quality, increased laser stability, and the ability to detect changes in polarization caused by external magnetic fields. However, they can be relatively expensive and larger than other polarization control devices, which can make them difficult to integrate into certain optical systems. Additionally, they can be sensitive to temperature and magnetic field fluctuations, which can affect their performance.
