Description

VC-118-S4

Camera test light box

SPECIAL LIGHT BOX FOR CAMERA TESTING

Camera Test Light Box

Visit the 3nh Sineimage Store

Download Data Sheet

Features

Overall dimensions: 1150mm* 1045mm* 1728mm(L*w*H)

Internal dimensions of the box: 1106mm* 1001mm* 800mm(L*w*H)..
Box window size: 447mm*700mm(W*H).

Dimensions of the connector mounting plate: 250mm*150mm.

Size of light source control box: 303mm*302mm*101mm (L*W*H).

Standard installation on the connector mounting board: RS232 connector 1, AV base 1, USB connector 2, network cable base 2, DC base 2, gas pipe quick connector PM06 connector 1.

Applications

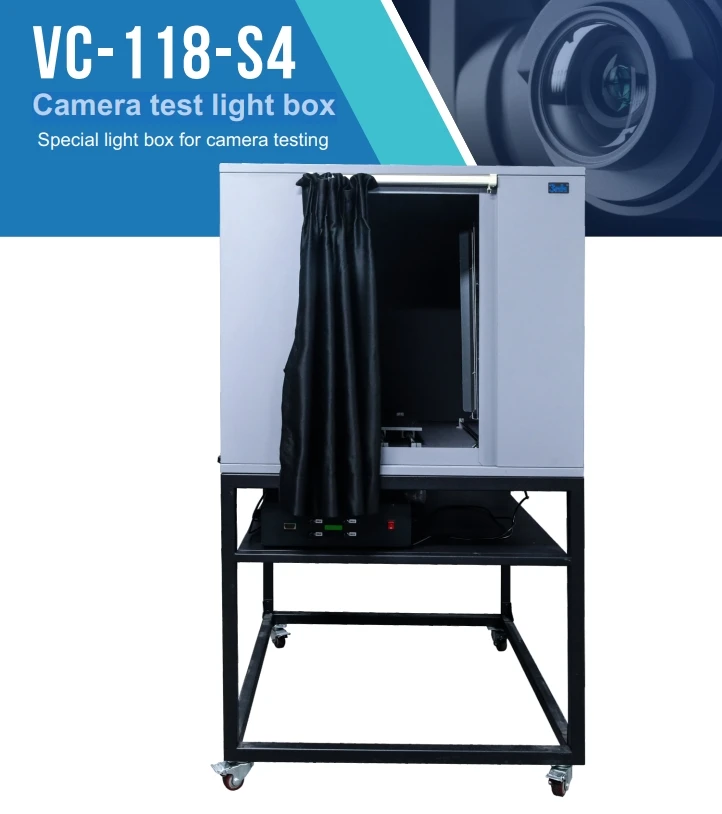

VC-118-S4 camera test light box is a special light box for camera test.

This product can be used to test cameras with different field angles using the same picture card.Built-in electric slide, easy to move the camera back and forth. The light box is equipped with a high display finger, no strobe, long life, and stable color temperature LED light source.

Users can move back and forth and rotate the light source light board around and around according to different situations to get a more uniform lighting environment.
