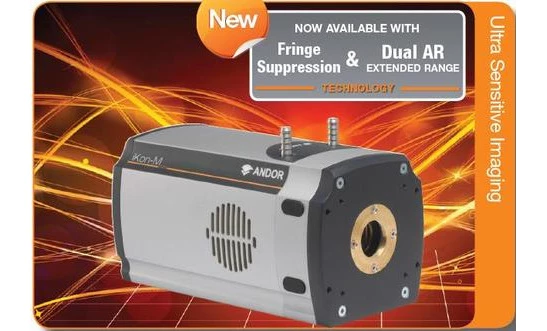

Andor - iKon-M 934 High Dynamic Range CCD
Description
Andor’s iKon-M 934 series cameras are designed to offer the ultimate in high-sensitivity, low noise performance, ideal for demanding imaging applications. These high resolution 1024 x 1024 CCD cameras boast up to 95% QEmax, high dynamic range, 13 μm pixels and exceptionally low readout noise. The iKon-M benefits from negligible dark current with industry-leading thermoelectric cooling down to -100°C.
The ‘Deep Depletion’ sensor option offers ultimate performance for NIR applications, the new Dual AR coating extends the QE performance significantly across the UV/visible region of the spectrum for the broadest possible spectral coverage from one sensor. Fringe Suppression Technology™ radically minimizes etaloning effects in the NIR. Rapid vertical shifts combined with fast kinetics acquisition mode, comprehensive trigger modes and custom coated wedge window options, render the deep Depletion models ideal for NIR optimized Bose Einstein Condensation applications.
Andor - iKon-M 934 High Dynamic Range CCD
Specifications |
|
|---|---|
| Sensor Type: | CCD |
| # Pixels (Width): | 1024 |
| # Pixels (Height): | 1024 |
| Pixel Size (Square): | 13 um |
| Peak Quantum Efficiency: | 95 % |
| Full Frame Rate: | 4.4 fps |
| Bit Depth: | 16 bit |
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The cameras have a high resolution of 1024 x 1024 pixels.
The iKon-M cameras have industry-leading thermoelectric cooling down to -100°C.
The iKon-M cameras have exceptionally low readout noise of 2.9 e-.
Fringe Suppression Technology™ radically minimizes etaloning effects in the NIR.
The pixel size of the iKon-M cameras is 13 µm x 13 µm.
