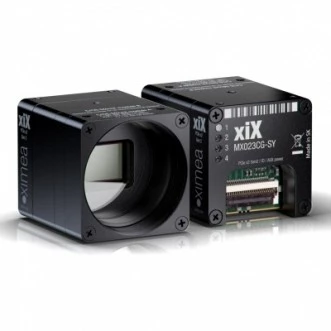

CMOSIS CMV2000 PCIe Mono Industrial Camera
Description
These cameras are the backbone of the xiFLY platform. They are small, lightweight cameras with fl exible ribbon cable interfaces. Alternatively, they can be adapted to fi ber optic cabling. The small board stack in these cameras makes for fantastic fl exibility in systems with tight spatial requirements. Together with the xiFLY accessories, the xiX cameras drive performance in small spaces, from great distances, and at high speed. For embedded solutions, have a look at our carrier boards xEC2 for the computing platforms by NVIDIA (Jetson TX2, Xavier in preparation). With these and other 3rd party vendors, it is possible to build extremely compact subsystems, even mobile units, supporting multiple cameras.
CMOSIS CMV2000 PCIe Mono Industrial Camera
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| # Pixels (Width): | 2048 |
| # Pixels (Height): | 1088 |
| Pixel Size (Square): | 5.5 um |
| Peak Quantum Efficiency: | -- % |
| Full Frame Rate: | 340 fps |
| Bit Depth: | 8 bit |
Features
Compatible with the xiFLY platform
Power and GPIO is fed through the ribbon cable reducing the need for extra cables
Super compact form factor
Connector options to fit your needs
Ideal for embedded applications and tight spaces
No frame grabber required, DMA transfer with no CPU load
Direct GPU transfer with selected NVIDIA boards under Linux
Data transmission with functionally zero latency
Flexible GPIO with optoisolated and TTL options
Low power consumption
Rugged and lightweight, aluminum alloy CNC machined housing
Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The camera has functionally zero latency for data transmission.
The camera can be used with fiber-optic cables at distances over 100 meters.
The xiFLY platform is a system that the CMOSIS CMV2000 PCIe Mono Industrial Camera is compatible with.
The camera is suitable for vision, inspection, OEM, and metrology applications.
Various Sony Pregius and all AMS/CMOSIS sensors are available for the camera.
