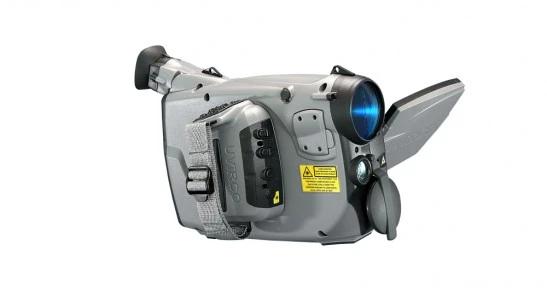

CoroCAM 7 Professional Solar Blind UV Corona Camera
Description
The CoroCAM 7 is a professional grade Solar Blind, easy to operate UVc imaging system used to visualize & locate electrical discharges (corona and arcing) from High Voltage hardware. The CoroCAM 7 is typically used to inspect High Voltage infrastructure operating at 3.3 KV and above for corona discharges and arcing. The CoroCAM 7 features the same solar blind UVc imaging system as used in the CoroCAM 6D. Advanced UVc image enhancement features are available to increase sensitivity (adjustable Long Integration & Non Solar Blind Mode*), reduce false signals (adjustable Noise Reduction & Threshold Level) and improve the visibility of the discharge indicating blob (adjustable Background Priority, Blob Transparency and Blob False Color). This world class UVc imaging system is paired with a high performance visible camera, allowing it to achieve an IFOV (Instantaneous Field of View) of 0.0477mRad for it’s visible channel, when recording UCF files. UCF files are used to record the uncompressed displayed image & raw UVc channel, the camera settings and calibration values in one file, which can be imported by the CoroBASE Analysis and Reporting software. The adjustable viewfinder, rotatable grip and LCD display makes for optimal ergonomics and allows the operator to use camera in all light conditions from multiple stances, minimizing muscle fatigue.
CoroCAM 7 Professional Solar Blind UV Corona Camera
Specifications |
|
|---|---|
| Sensor Type: | CCD |
| # Pixels (Width): | 768 |
| # Pixels (Height): | 576 |
| Pixel Size (Square): | -- um |
| Peak Quantum Efficiency: | -- % |
| Full Frame Rate: | -- fps |
| Bit Depth: | -- bit |
Features
A high sensitivity detector, which can detect UVc emissions down to 2.05 x 10-18W/cm2, this allows for the detection of the smallest corona discharges
Motorised solar blind filter removal in Non Solar Blind Mode to increase sensitivity for use at night or indoors
Users can select optimised presets for detection or location of discharges
Corona signals above the threshold level are displayed in real time
A high zoom colour visible camera with a resolution of 768 x 576 pixels
Syncronised UV & Visible Zoom from 1x system zoom (defined as 8°x6° / 10° Diagonal) to 4x system zoom (optical for the Visible channel and digital for the UV channel)
Onboard still image and video recording in JPG and AVI formats
UCF meta data file containing uncompressed displayed image and raw UV image, camera settings and preset value
Integrated GPS with internal and booster antenna
Integrated high power flashlight with adjustable brightness levels
A high resolution angle adjustable, focusable ventilated viewfinder (800 x 600 pixels) and a large, robust mounted, variable angle, colour LED backlit LCD display (640 x 480 pixels), both optimised for use in full daylight to make inspection comfortable
The On-Screen Display (OSD) shows all the relevant information
Easily replaceable Li-ion batteries deliver up to 3 hours operating time Additional batteries are readily available and lightweight
Fast boot avoids the need for power saving modes
User profile setup, save and restore
Easy operation of the camera with one hand via a multi-function keypad, short cut keys to specific functions
Ethernet port for remote control
Camera software update via download to SD card
A 18 month warranty, extendable to 36 months
Compatible with CoroBASE 2.0 Analysis and Reporting software
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
South Africa
-
Sold by:
-
On FindLight:
External Vendor
Claim Uvirco Technologies Page to edit and add data
Frequently Asked Questions
The CoroCAM 7 can operate for up to 3 hours on a single battery charge, and additional batteries are readily available and lightweight.
The CoroCAM 7 is used to visualize and locate electrical discharges (corona and arcing) from High Voltage hardware.
The IFOV of the visible channel on the CoroCAM 7 is 0.0477mRad when recording UCF files.
The CoroCAM 7 can record still images and videos in JPG and AVI formats, as well as UCF files which contain the uncompressed displayed image & raw UVc channel, camera settings, and calibration values in one file.
The CoroCAM 7 has advanced UVc image enhancement features such as adjustable Long Integration & Non Solar Blind Mode, adjustable Noise Reduction & Threshold Level, and adjustable Background Priority, Blob Transparency and Blob False Color.
