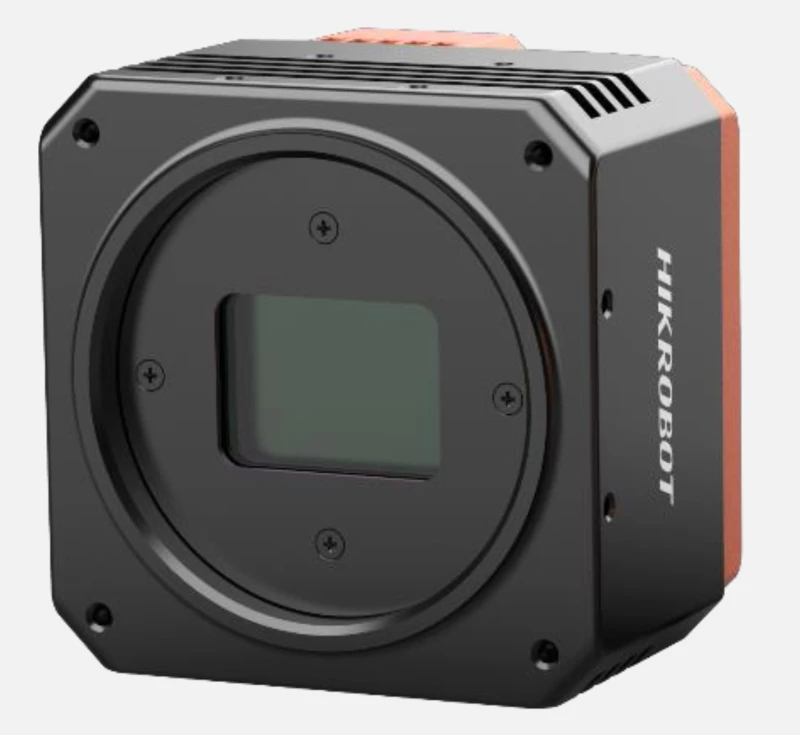

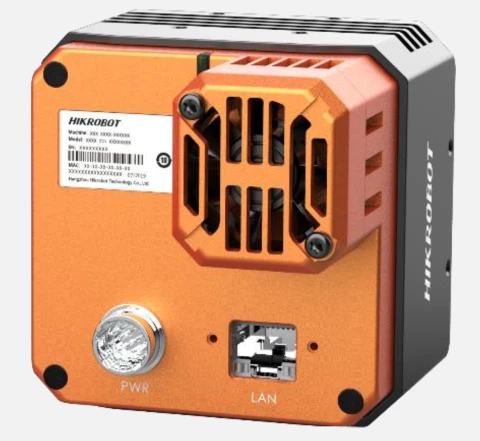

HIKROBOT MV-CH250-90TM-M58S-NF Global Shutter M58-Mount 25MP 41.5fps 1.1" Mono 10 GigE Machine Vision Camera
Description
The MV-CH250-90TM/TC is a high-performance area scan camera designed for industrial applications requiring precise imaging. It features a Gpixel GMAX0505 CMOS global shutter sensor with a resolution of 5120 × 5120 pixels and a pixel size of 2.5 µm × 2.5 µm, providing detailed, high-quality images.
The camera uses a 10 GigE interface, enabling real-time, non-compressed image transmission over distances of up to 100 meters with a maximum frame rate of 41.5 fps at full resolution. It supports advanced image controls, including exposure time adjustment, gain, Look-Up Table (LUT), and Gamma correction, offering flexibility for fine-tuning image quality.
The camera is compatible with the GigE Vision V2.0 and GenICam protocols, ensuring seamless integration with third-party software. It is available in various configurations, including mono and color models, with options for C-mount and M58-mount lenses. Suitable for industries such as SMT/PCB AOI, photovoltaic, and railway systems, the camera operates efficiently under a wide range of temperatures and humidity levels, with a power consumption of approximately 9.7-10.0 W. It is built to IP40 standards, ensuring durability and protection under proper installation.
HIKROBOT MV-CH250-90TM-M58S-NF Global Shutter M58-Mount 25MP 41.5fps 1.1" Mono 10 GigE Machine Vision Camera
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| # Pixels (Width): | 5120 |
| # Pixels (Height): | 5120 |
| Pixel Size (Square): | 2.5 um |
| Peak Quantum Efficiency: | / % |
| Full Frame Rate: | 41.5 fps |
| Bit Depth: | / bit |
| Target Size: | 1.1 |
| Lens Interface: | M58-Mount |
| Data Interface: | 10 GigE |
Features
- Sensor: CMOS, global shutter for accurate high-speed capture without distortion.
- Dynamic Range: 63 dB, ensuring clarity in diverse lighting conditions.
- Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.
- Adopts 10 GigE interface providing maximum transmission distance of 100 meters.
Supports adjustment for exposure time, gain, Look-Up Table (LUT), Gamma correction, etc. - Mounting holes on panels for flexible installation.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
