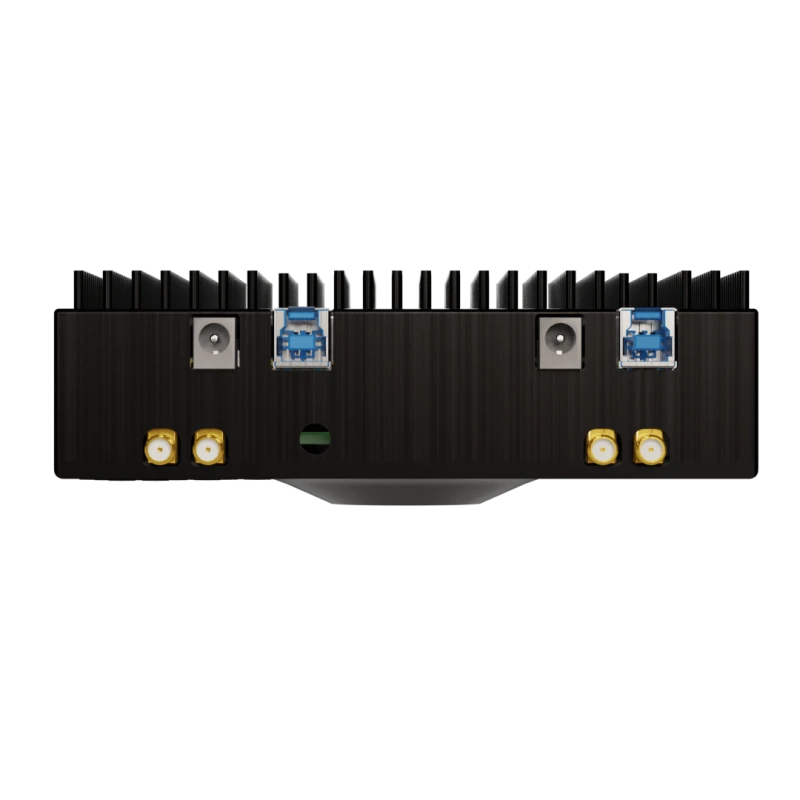

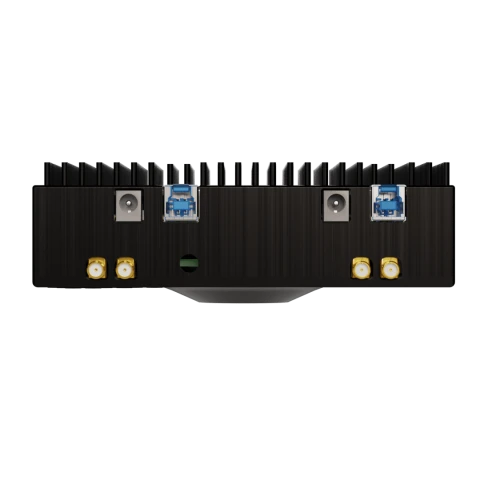

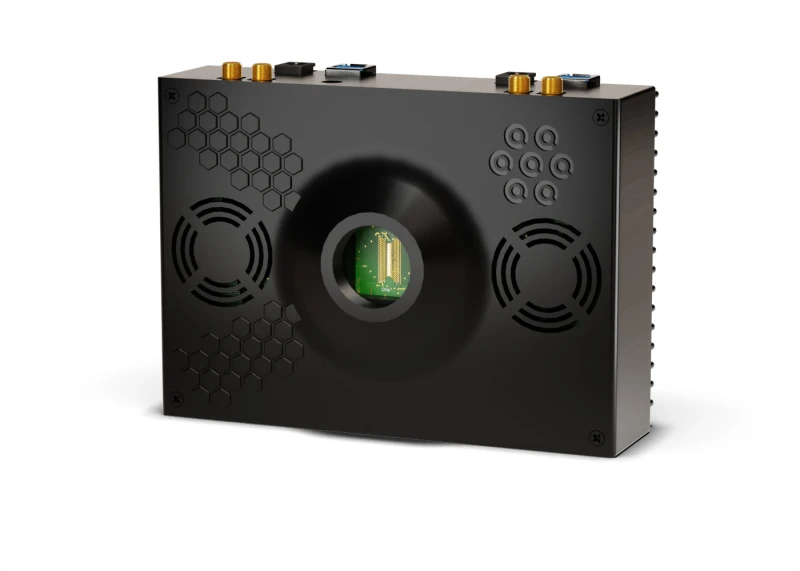

SPADλ | Photon-Counting SPAD Linear Array
Description
SPADλ is a photon-counting linear array with time gating and time tagging. The core of the detector is a SPAD array with 320×1 pixels. Photon counting with up to 555’000 frames per second and zero readout noise is achieved. Nanosecond time gating is coupled with 17 ps gate phase shift. Time tagging with 20 ps resolution and 130 ps FWHM precision is available.
SPADλ | Photon-Counting SPAD Linear Array
Specifications |
|
|---|---|
| Sensor Type: | Other |
| # Pixels (Width): | 320 |
| # Pixels (Height): | 1 |
| Pixel Size (Square): | 29 x 29 um |
| Peak Quantum Efficiency: | 50 % |
| Full Frame Rate: | 555,000 fps |
| Bit Depth: | 1 or unlimited bit |
Applications
Confocal microscopy:
SPAD arrays increase light collection and enable innovation in the field of laser-scanning confocal microscopy. This innovation finally leads to a sharper and brighter image with functional information about the underlying molecular function, interactions and environment. SPAD arrays provide the following advantages in confocal microscopy:
Achieve super-resolution with a standard confocal microscope:
Increase light collection
Increase imaging speed
Reduce background noise
Quantum information:
Temporal photon correlations and photon number resolving (PNR) are fundamental to probing the quantum properties of light. SPAD arrays have an extremely low crosstalk and thus enable reliable measurements of second and third order photon correlations, as well as quantum random number generation for unbreakable encryption. SPAD arrays provide the following advantages in quantum information:
Simplify setup with single-chip multi-channel detector:
Increase data rate with detector parallelization
Photon number resolving (PNR) detection
Flow cytometry:
SPADλ enables 320 spectral channels with shot noise limited SNR and integration times down to 1.8 µs. SPAD linear arrays provide the following advantages in flow cytometry:
Simplify multichannel detection
Improve signal to noise ratio.
Fluorescence lifetime imaging microscopy (FLIM)
SPAD cameras increase the overall photon throughput compared to scanned detection systems from the typical 10 Mcounts per second to 26 Gcounts per second. SPAD cameras provide the following advantages in FLIM:
Simplify FLIM setup
Increase FLIM frame rate
High-speed imaging
SPAD cameras enable high frame rates with global shutter at zero readout noise. SPAD cameras provide the following advantages in high-speed imaging:
Image fast phenomena in low light conditions
Image light-in-flight
