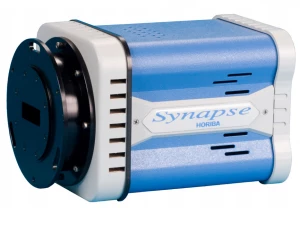

Synapse Linear InGaAs Array SYN-512X1-25-1700
Description
HORIBA Scientific’s Synapse InGaAs arrays are the ideal choice for demanding, low-light-level measurements in the near infrared (NIR) spectral region from 800–1700 nm. Available in 512 × 1 (25 × 500 µm), 512 × 1 (50 × 500 µm), and 1024 × 1 (25 × 500 µm) pixel formats, these InGaAs detectors provide high resolution while maintaining full well capacity. Synapse InGaAs arrays feature a 16-bit dynamic range, are deep thermoelectrically cooled, and use a mechanical shutter for subtraction of the dark background. Metal seals provide a permanent vacuum seal. A plug-and-play USB 2.0 interface allows portability and easy setup on PC notebooks and desktop computers with 100% data integrity. Applications include near-IR Raman, photoluminescence measurements of semiconductors, SWCNTs, and nanowires. Detectors with sensitivity from 1 µm to 2.2 µm are also available.
Synapse Linear InGaAs Array SYN-512X1-25-1700
Specifications |
|
|---|---|
| Sensor Type: | InGaAs Array |
| # Pixels (Width): | 25 |
| # Pixels (Height): | 500 |
| Pixel Size (Square): | 512 um |
| Peak Quantum Efficiency: | 85 % |
| Full Frame Rate: | -- fps |
| Bit Depth: | 16 bit |
Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The wavelength range is from 800-1700 nm in ambient temperature (25°C) and from 800-1650 nm in operating temperature (-60°C).
The Synapse InGaAs arrays are available in 512 × 1 (25 × 500 µm), 512 × 1 (50 × 500 µm), and 1024 × 1 (25 × 500 µm) pixel formats.
The Synapse InGaAs arrays feature a 16-bit dynamic range.
Detectors with sensitivity from 1 µm to 2.2 µm are available.
The Synapse InGaAs arrays are suitable for near-IR Raman, photoluminescence measurements of semiconductors, SWCNTs, and nanowires.
