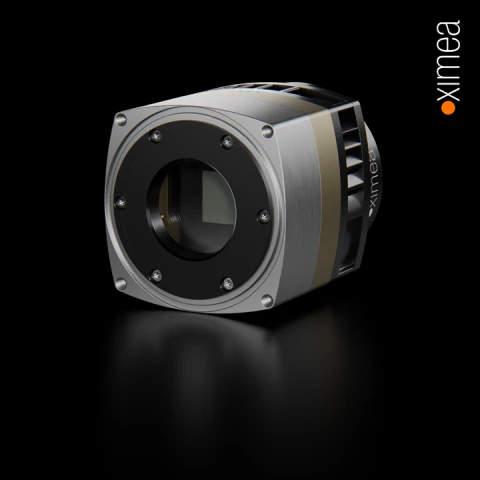

xiJ – Cooled sCMOS cameras.
Description
Revolutionize your scientific imaging, when every photon counts. Scientific cameras, equipped with the latest BSI sCMOS sensor and advanced Peltier cooling (TEC).
Meticulously engineered to deliver unparalleled performance and versatility, our latest scientific imaging systems are compact and highly sensitive.
Equipped with Gpixel's latest scientific complementary metal-oxide-semiconductor (sCMOS) sensors utilizing backside illumination sensor architecture (BSI), they provide high spatial-temporal resolution (e.g. 15 Mpix up to 48 FPS) and exceptional data acquisition capabilities for a wide range of scientific applications, even in low-light conditions. Utilizing advanced thermoelectric Peltier cooling, an impressive temperature reduction down to -25 °C can be achieved, enabling a minimal dark current of <0.6 [e-/s/pix at -20 °C], providing a stable imaging environment even in challenging conditions.
In addition, our system's housing is carefully crafted from stainless steel and copper to enhance thermal stability and ensure durability. Indium seals further contribute to the long-term stability of the sensor chamber climate, providing a reliable and robust platform for your experiments.
Customize your imaging setup with ease by choosing from a variety of lens mounts, including C-mount and M42-mount. All of these features are easily accessible, using efficient power management and streamlined connectivity via USB3 interface with USB-C connector that takes advantage of the power delivery protocol (PD2.0).
xiJ – Cooled sCMOS cameras.
Specifications |
|
|---|---|
| Sensor Type: | sCMOS |
| # Pixels (Width): | 2048 - 6576 |
| # Pixels (Height): | 2048 - 4384 |
| Pixel Size (Square): | 4.25 - 11 um |
| Peak Quantum Efficiency: | 58 - 95 % |
| Full Frame Rate: | 16 - 93 fps |
| Bit Depth: | 12 - 16 bit |
| Resolution: | 4.1 - 15.1 MPix |
Features
- Scientific grade family of sCMOS sensors from Gpixel
- Resolutions 4.2 Mpix and 15 Mpix
- Includes versions with backside illuminated sensors
- Extremely low readout noise architecture, down to 1.2 e-
- Dynamic range up to 90 dB
- Quantum efficiency up to 95 %
- Crystal clear 12, 14 and 16 bit/pixel images
Applications
- Fluorescence
- Biomedical
- Microscopy
- Life science
- Space exploration
- Material science
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
Yes, the xiJ cameras are active Peltier TEC cooled, with USB models offered with Peltier cooling for outstanding dark current performance and highest dynamic range.
The xiJ camera line is a series of ultra-compact cameras designed for scientific and low-light applications.
The xiJ cameras have compact housings with C-mount, M42-mount, and custom M58 thread with various mount adapters.
The xiJ cameras are available in high-speed PCIe interface or cooled with USB3.
The xiJ cameras use the latest scientific CMOS (sCMOS) sensors from Gpixel.
