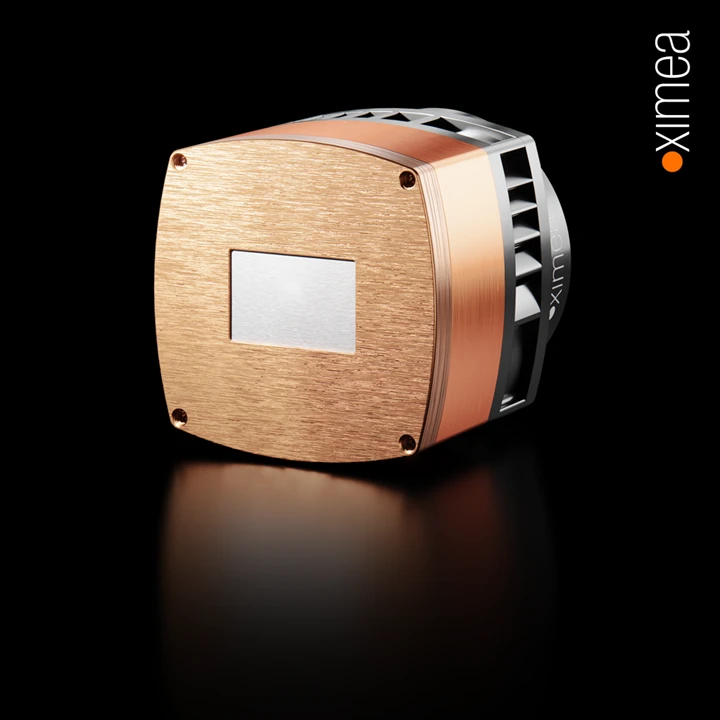

xiRay - Direct phosphor imaging x-ray cameras.
Description
Direct phosphor imaging X-ray cameras for high-res X-ray applications. Various sensors, scintillator types and fiber optic plates / tapers are available or can be customized to your needs.
We present our cutting-edge X-ray imaging system, meticulously designed to meet the demands of diverse scientific X-ray applications, such as high-resolution micro-CT. Equipped with the latest sCMOS and CMOS sensors (Gpixel, Sony) that range in resolution from 15 to 151 Mpix.
Radiation sensitivity is a key consideration in scientific imaging, therefore our system offers unparalleled flexibility in this regard by allowing users to adjust radiation sensitivity and energy ranges by employing a set of scintillator materials (GadOx:Eu, CSI) and various fiber optical plates (FOP) with different thicknesses.
The optical configuration of our imaging system is equally versatile, offering both straight optics (FOP) and tapers (FOT) to accommodate various fields of view (FOV), providing a seamless integration into a myriad of scientific investigations. Altogether tailored scintillator material based on your experiment's requirements/demands will further enhance the precision and versatility of the X-ray imaging solution.
xiRay - Direct phosphor imaging x-ray cameras.
Specifications |
|
|---|---|
| Sensor Type: | sCMOS, CCD |
| # Pixels (Width): | - |
| # Pixels (Height): | - |
| Pixel Size (Square): | 3.76 - 10 um |
| Peak Quantum Efficiency: | -- % |
| Full Frame Rate: | 2 - 45 fps |
| Bit Depth: | - bit |
| Resolution: | 15.1 - 150.8 MPix |
| Dynamic Range: | 65 - 90 dB |
Features
- High-resolution direct phosphor imaging, ideal for micro CT
- Sensitive full frame sensors with backside illumination for high QE
- Fastest frame rates with interface options - USB3 or Thunderbolt 3
- Partial ROI and binning modes for enhanced sensitivity and speed
- Variety of sensor, scintillator and fiber optic plate options, which can be further customized
- Crystal clear 14 and 16 bit/pixel images
Applications
- Diffraction and scattering
- Life science
- Industrial
- Material analysis
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
Yes, the xiRAY camera can be customized with other sensors, interfaces, scintillators, and housing designs to meet specific application requirements.
The xiRAY camera supports energy levels of 7 and over 100 keV.
The compact camera has dimensions of 63 x 63 x 46 mm and less.
The xiRAY camera has an ultra-precision, aluminum alloy, CNC milled housing for stability and longevity.
