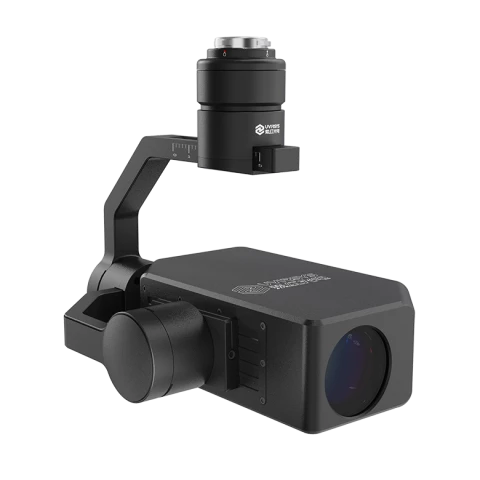

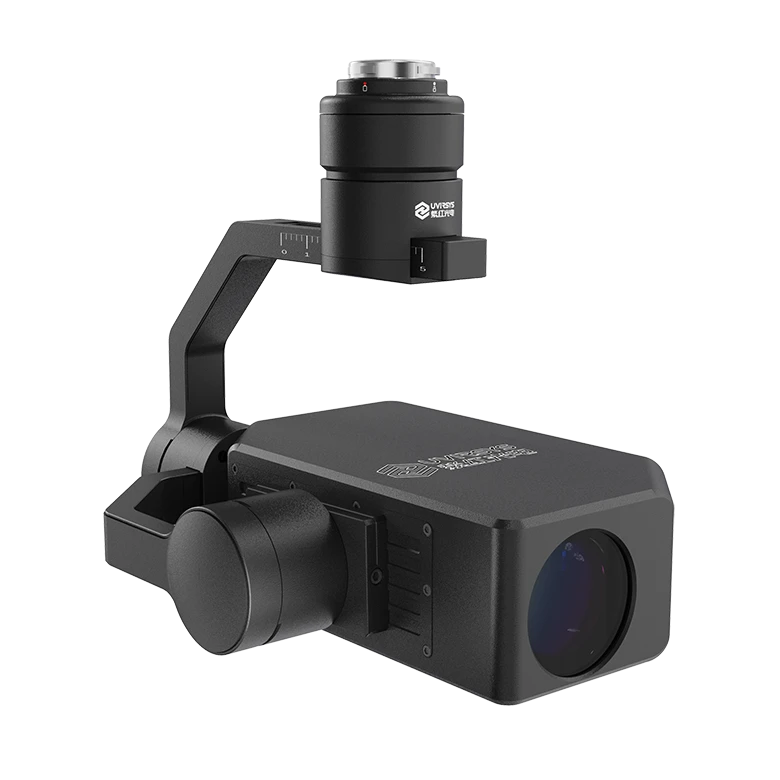

ZH480-UAV Corona Camera for Drones
Description
ZH480-UAV Drone Carried UV Camera is configured with a special PTZ and UV imager host, combined with DJI PSDK development, fast docking with M300RTK, with good seismic resistance and stability. The flight testing is very convenient and can be performed day or night for precise positioning, display and photon counting. ZH480-UAV drone carried UY camera can be used for prospective and pre-maintenance strip testing of operating equipment on transmission and distribution lines and substations; it can also be used in railroads, petroleum, fire prevention, emergency rescue, inspection services and other industries.
ZH480-UAV Corona Camera for Drones
Specifications |
|
|---|---|
| Sensor Type: | InGaAs Array |
| # Pixels (Width): | 1280 |
| # Pixels (Height): | 720 |
| Pixel Size (Square): | 17 um |
| Peak Quantum Efficiency: | 61 % |
| Full Frame Rate: | 25 fps |
| Bit Depth: | 24 bit |
| Discharge Sensitivity: | 1Pc@10m |
| RIV Sensitivity: | 3.6dBμV (RIV) @ 1 MHz@10m |
| UV Sensitivity: | 2 x 10^18 watt/cm^2 |
| Daytime Workable: | yes, can be used under sun shine |
| Corona Discharge: | Can be tested and imaged |
| Photons Counting: | available |
| Photons Counting ROI: | 5 kinds |
| Gains: | 0-100%, adjustable |
| FOV Wide-Angle For UV Channel: | 12.6°*7.2° |
| FOV Telephoto For UV Channel: | 5°*3.75° |
| UV Threshold: | adjustable |
| Image Integration Fucntion: | available |
| Out-of-band Rejection Index: | <25@100% gain |
| Focus Distance Of Visible Light Channel: | 1.5m |
| Sensitivity Of Visible Light Channel: | 0.1Lux |
| Zoom Of Visible Light Channel: | Optical 10x, digital 12x |

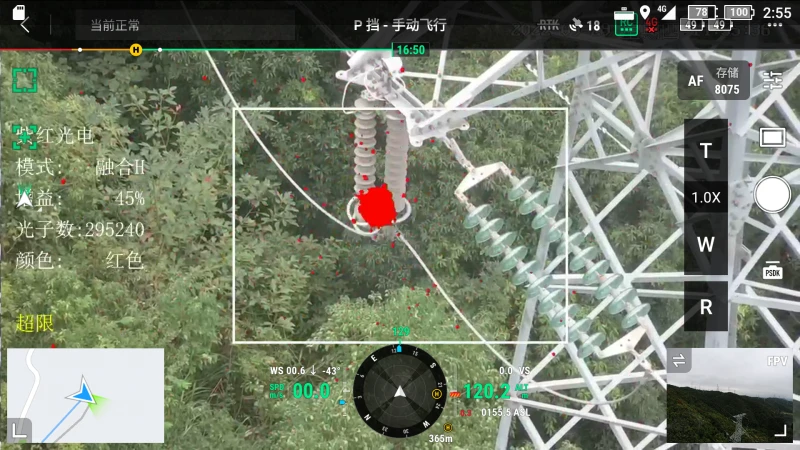

| Display Mode: | only UV, only visible, combined UV+Vis |
| Image Format: | JPG |
| Video Format: | AVI |
| Output Resolution: | 1280*720 |
| Corona Color: | red, whit,blue,yellow,cyan, green,magenta |
| Display Infomation: | Mode, Gain, Counting, Colour, Temperature, Alarm |
| Size: | 180*100*60mm (UV camera) |
| Weight: | <1000g (UV camera) |
| IP Protection Grade: | IP54 |
| PTZ: | available for M300 RTK or M350 RTK |
| PTZ Adapter: | available for M300 RTK or M350 RTK |
| Language: | English |
Features
High Sensitivity Detector: Using high-performance UV detector, can detect the tiny corona discharge day and night.
Accurate Positioning: Adopt high-precision image fusion algorithm, accurately locating the discharge position, quantitative intensity.

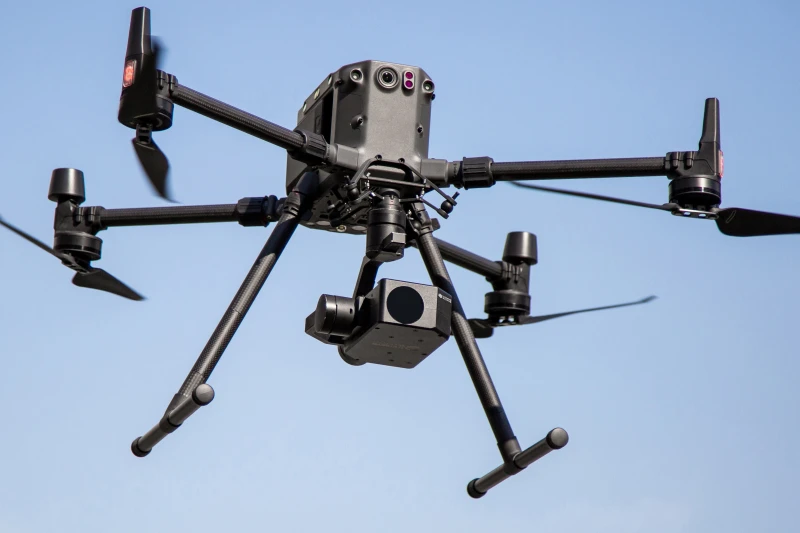

One-man Operation: Adapt to DJI M300RTK or M350 RTK, etc, one-man operation while controlling the drone, PTZ and UV host
Highly Integrated Design: 1280*720 HD UV and VIS images, host within 1kg,endurance up to 40 minutes
Counting Functions: Five counting modes: full/quad/large/medium /small threshold alarm, accurate positioning discharge
Quality Service: 1 year warranty, 24h response; UV imaging trainer and drone pilot licensed to training
Applications

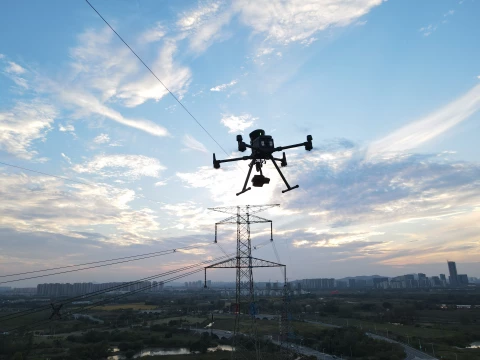

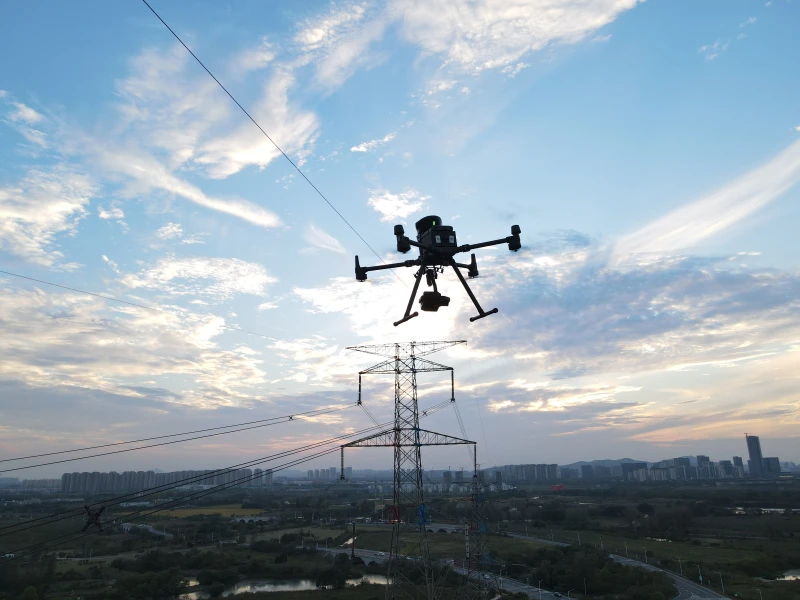

Ideal for transmission lines, substations, distribution, railway etc.
