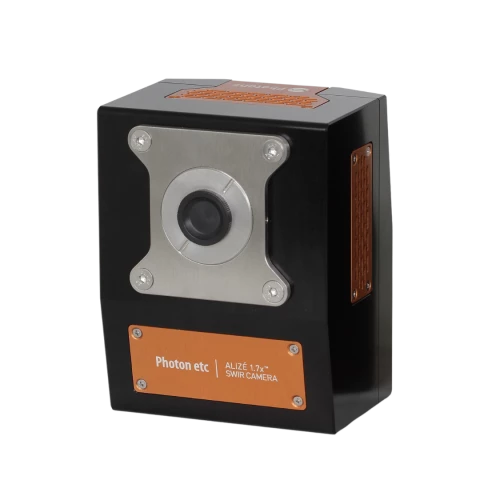

ALIZÉ™ 1.7 SWIR Camera 0.5 - 1.7 µm
Description
The Alizé 1.7 is a high-end, scientific grade, 640 x 512 pixels resolution, InGaAs camera that marries performance with reliability. It has low noise levels, high efficiency, and a rapid frame rate compatible with an external trigger. This is made possible by a combination of state-of-the-art control electronics and a four stage thermoelectric cooler (TE) which can maintain an operating temperature as low as -60 °C. The cooler uses forced air cooling which requires none of the maintenance of a water or liquid nitrogen cooled unit.
The Alizé 1.7 is amongst the most cost-effective high-end InGaAs cameras on the market.
ALIZÉ™ 1.7 SWIR Camera 0.5 - 1.7 µm
Specifications |
|
|---|---|
| Camera Type: | Industrial, Scientific |
| Array Type: | InGaAs |
| Spectral Band: | 500-1700um |
| # Pixels (Height): | 640 |
| # Pixels (Width): | 512 |
| Pixel Pitch: | 15 um |
| Array Cooling: | Cooled |
| Quantum Efficiency: | 85 % |
| Cooling: | 4 stages TEC |
| Operating Temperature: | -60 °C |
| Frame Rate: | 220 FPS |
| Dark Current: | 150 ē/px/s |
| Readout Noise: | 22 ē |
| Digitization: | 14 bits |
| Dimensions: | 169 x 130 x 97 mm |
| Weight: | 2.6 kg |
Applications
Alizé 1.7 Applications Overview
- NIR-II/SWIR Bio-imaging
- Photovoltaics characterization by photoluminescence (PL) and electroluminescence (EL) using SWIR imaging
- Semiconductor wafers inspection and device failure detection
- Laser beam profiling
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The Alizé 1.7 SWIR camera has two models with different spectral ranges: Alizé 1.7x has a spectral range of 0.50- 1.70 µm and Alizé 1.7s has a spectral range of 0.90 - 1.70 µm.
