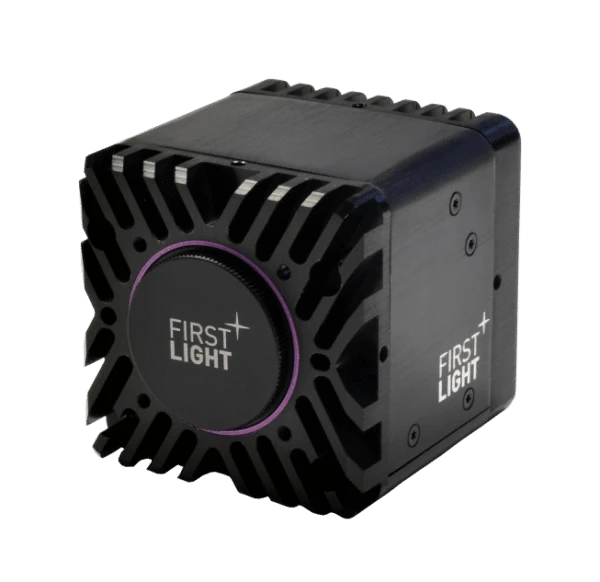

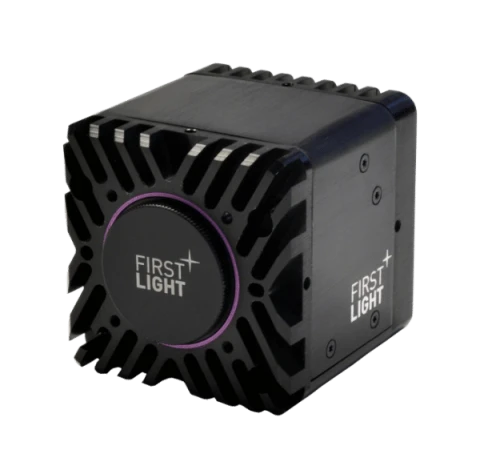

C-RED 3 | Low SWaP Uncooled High-Speed SWIR camera
Description
Specially designed for short exposure times applications, C-RED 3 is the fastest VGA uncooled camera for short wave infrared (SWIR) imaging.

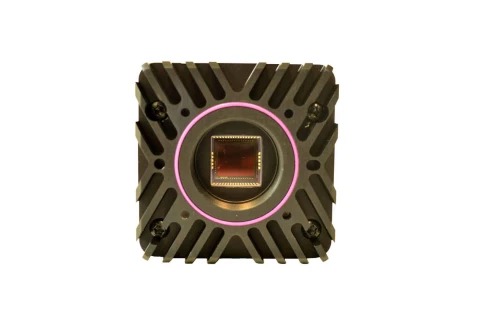

C-RED 3 is using a TEC-less 640 x 512 InGaAs PIN Photodiode detector with 15 μm pixel pitch for high resolution, which embeds an electronic shutter with integration pulses shorter than 1 μs.
Operating from 0.9 to 1.7 µm, C-RED 3 is also capable of windowing down for higher frame rate. Multiple on-board functionalities are offered such as user configurations, NUC tables, adaptive bias and HDR mode.
Autonomous, ultra compact and perfect for stable temperature environments, C-RED 3 expands the C-RED family, offering a solution for every application and every budget.
C-RED 3 can also be supplied as OEM. Some applications include free space optical telecommunications (FSO), wavefront sensing camera, laser guide star, high-speed imaging, tracking etc.
C-RED 3 | Low SWaP Uncooled High-Speed SWIR camera
Specifications |
|
|---|---|
| Camera Type: | Security, Military |
| Array Type: | InGaAs |
| Spectral Band: | 900-1700um |
| # Pixels (Height): | 640 |
| # Pixels (Width): | 512 |
| Pixel Pitch: | 15 um |
| Array Cooling: | Uncooled |
Features
- FASTER: C-RED3 is the fastest SWIR InGaAs in its category with 600FPS full frame.
- LOW NOISE: C-RED3 offers <50e- of readout noise for high sensitivity.
- HIGH DYNAMIC RANGE WITH HDR MODE: 93 dB of linear dynamic range and true 16-bit images. Enhance your vision with the HDR module enabled at full frame rate.
- LOW SWaP: Affordable OEM version available for easy integration in complex systems.
- UNIQUE ADAPTIVE BIAS: The adaptive BIAS correction allows to use the uncooled C-RED 3 in a variable temperature environment.
- COMPREHENSIVE SDK: Each camera comes with a GUI and free SDK to develop your own solution under Linux, Windows and Jetson. Plug-ins are available for: μManager, Labview, Python, C, C++, and more.
Applications
- Night Vision
- Long Range Surveillance And Tracking
- Active Imaging
- Cloud Or Smoke Penetration
- Background Contrast
- Solar Cells Inspection
- Semiconductor Inspection
- Quality Control
- Production Control
- Non Destructive Inspections
- Environmental Monitoring
- Secure Laser Communication
- Astronomical Observations
- Adaptive Optics
- Overpainting
- Non Destructive Analysis
- Erased Marking
- Counterfeiting
- Carbon Black Using
- Alteration Identification
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The camera operates in the SWIR range of 0.9–1.7 µm.
It achieves up to 600 FPS at full frame and 32,066 FPS in 32 x 4 resolution.
It features a 640 x 512 uncooled InGaAs sensor with 15 µm pixel pitch.
Yes, it offers HDR with 93 dB and true 16-bit quantization.
The readout noise is less than 30 e- at 600 FPS and 50 µs integration time.
C-Mount, CS-Mount, and T-Mount options are available.
SDKs for C, C++, Python, LabVIEW, and µManager are supported.
Semiconductor inspection, waste sorting, laser alignment, UAV surveillance, and more.
H55 x W55 x L60 mm, weighing 230 g, with typical power consumption of 6.5 W.
Yes, a cooling adapter is available for thermal regulation.

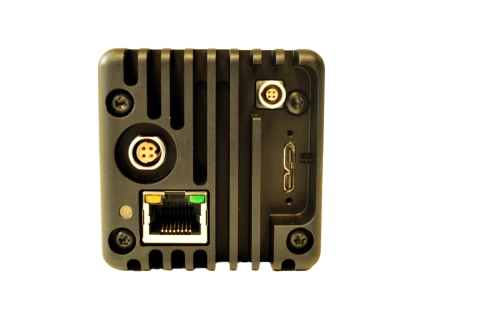

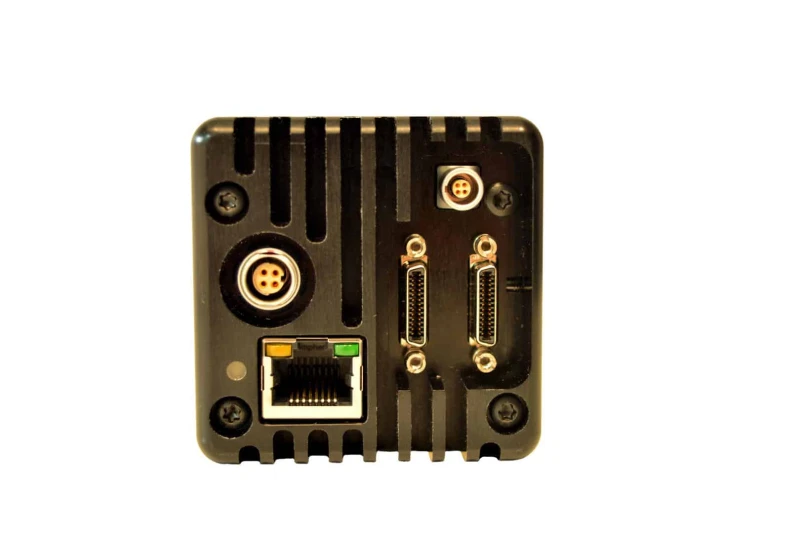

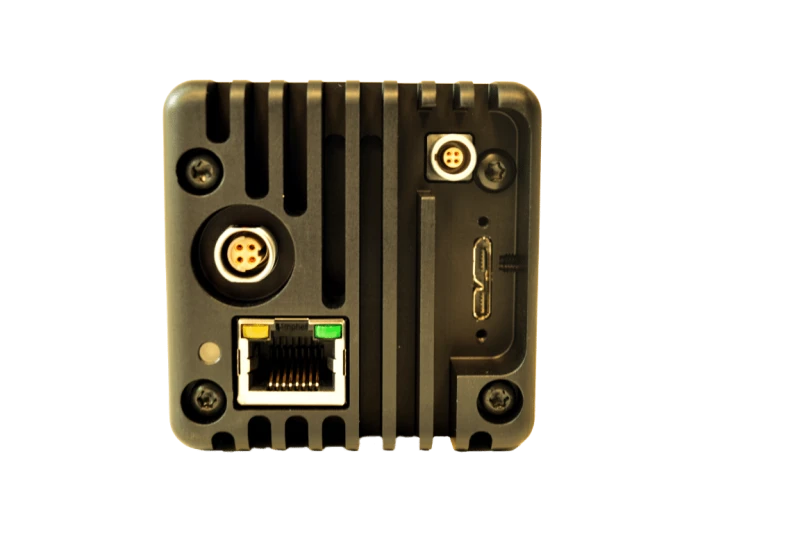

USB 3.1 Gen 1 and Camera Link® outputs are available.
Yes, an OEM module is available upon request.
The sensor has a 99.5% operability rate at 20°C.
The quantum efficiency exceeds 70% for wavelengths between 1.0–1.65 µm.
