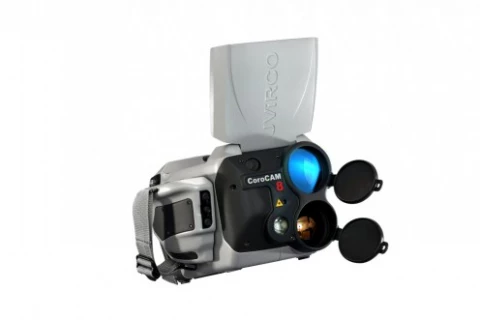

CoroCAM 8 Combined IR and Corona Imaging Camera
Description
The CoroCAM 8 is a combination of a radiometric FLIR® thermal LWIR camera, a solar blind UV camera and a high specification Sony visible camera.
It can be used to inspect High Voltage infrastructure operating at 3.3kV and above. The CoroCAM 8 is intended for use by professional High Voltage infrastructure inspectors. The combination of these 3 cameras makes it possible to do both thermal IR and UV inspections at the same time, saving time and effort. Co-location of electrical discharges and hot spots give the inspector more insight into the cause of a fault.The FLIR LWIR camera delivers high resolution radiometric information. The LWIR 640×512 pixel module is fitted with a 10.4° × 8.3° FOV F/1.25 lens which is optimal for overhead infrastructure inspections. The CoroCAM 8 features a solar blind UVc imaging system similar to that used in the CoroCAM 6D. Advanced UVc image enhancement features are available to increase sensitivity (adjustable Long Integration & Non Solar Blind Mode*), reduce false signals (adjustable Noise Reduction & Threshold Level) and improve the visibility of the discharge indicating blob (adjustable Background Priority, Blob Transparency and Blob False Color). This world class UVc imaging system is paired with a high zoom Standard Definition visible camera, allowing it to achieve an IFOV (Instantaneous Field of View) of 0.0477mRad for it’s visible channel, when recording UCF files. UCF files are used to record the uncompressed displayed, raw UVc & radiometric thermal images, the camera settings and calibration values in one file, which can be imported by the CoroBASE Analysis and Reporting software.
CoroCAM 8 Combined IR and Corona Imaging Camera
Specifications |
|
|---|---|
| Camera Type: | Industrial, Scientific, Security, Military |
| Array Type: | Not Specified |
| Spectral Band: | 0.3-14um |
| # Pixels (Height): | 480 |
| # Pixels (Width): | 640 |
| Pixel Pitch: | - um |
| Array Cooling: | Uncooled |
Features
A high sensitivity UV detector, which can detect UVc light at 2.05×10-18 W/cm2, this allows for the detection of the smallest corona discharges
A 9Hz (or optional 25Hz) Radiometric IR camera module
Syncronised Smooth or Stepped Zoom of all 3 camera channels. LWIR & UV channels are zoomed digitally, visible is zoomed optically to minimum FOV, then digitally enlarged
Manual or Autofocus for the Visible channel, UV and IR channels has manual focus or can be synchronized with the Visible channel
Onboard still image, video and radiometric data recording in high quality formats
Video output to HDMI or composite in PAL or NTSC format
A 5.7” viewable area, robustly mounted, variable angle, bright colour LCD display with 640×480 pixels resolution
A fixed angle focusable viewfinder with 800×600 pixel resolution
Fast set up & boot up avoids the need for power saving modes
The On Screen Display (OSD) shows all the relevant information
Rotational handle (right hand only) with primary interface keys
Easy operation of the camera with one hand via a multi-function keypad
Access specific functions with Quick keys on the left side of the camera
Manual or Auto Exposure of Visible and IR (Level) cameras, UV (Gain) is manually set
Integrated GPS with internal and complimentary external booster antenna
Meta data recording of camera settings and measurement plus environmental variables manually entered – distance, air temperature, air pressure, ambient humidity and wind speed
Resizable UV Intensity sampling box
UV overlay colors has 6 pre-sets or 100 user selectable hue levels
UV overlay translucency control
UV threshold, Integration & Noise Reduction control
14 IR color palettes with contrasting Isotherms
Auto or Manual IR Span
Integrated LED Flashlight and optional laser pointer
Camera software update via download to SD card
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
South Africa
-
Sold by:
-
On FindLight:
External Vendor
Claim Uvirco Technologies Page to edit and add data
Frequently Asked Questions
The CoroCAM 8 features a high sensitivity UV detector, a 9Hz (or optional 25Hz) Radiometric IR camera module, synchronized smooth or stepped zoom of all 3 camera channels, onboard still image, video and radiometric data recording in high quality formats, and more.
The CoroCAM 8 is intended for use by professional High Voltage infrastructure inspectors to inspect High Voltage infrastructure operating at 3.3kV and above.
The CoroCAM 8 is a combination of a radiometric FLIR® thermal LWIR camera, a solar blind UV camera, and a high specification Sony visible camera.
The CoroCAM 8 achieves an IFOV (Instantaneous Field of View) of 0.0477mRad for its visible channel when recording UCF files.
The LWIR 640×512 pixel module is fitted with a 10.4° × 8.3° FOV F/1.25 lens which is optimal for overhead infrastructure inspections.
