Dione 640 OEM & CAM Series
Description

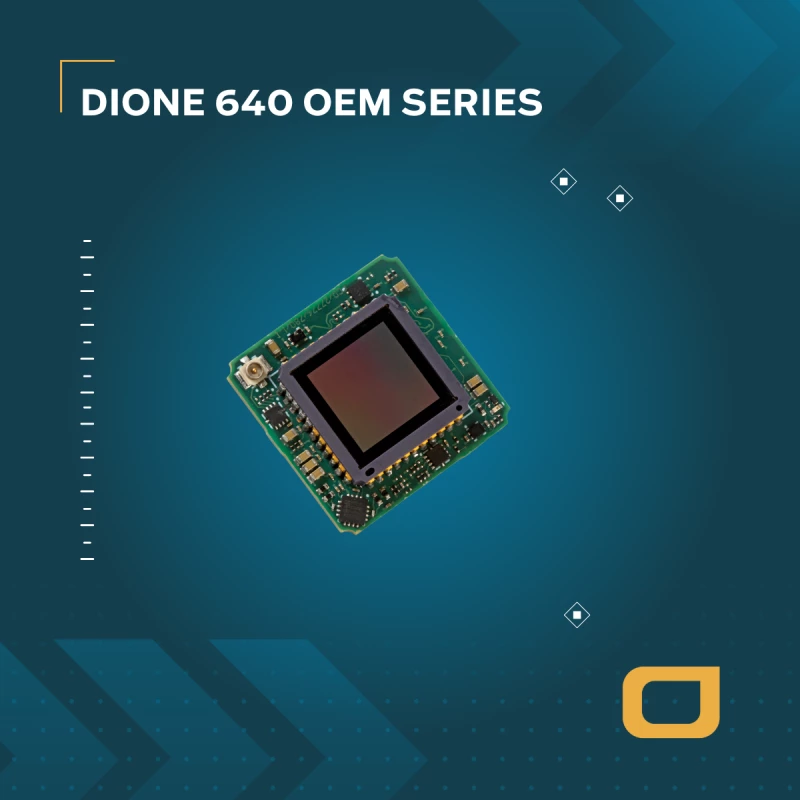

The Dione 640 OEM & CAM series are based on an uncooled 12 μm pitch microbolometer detector with a 640×480 resolution and NETD of less than 40 mK (available upon request) or 50 mK
The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione 640 is both lightweight and small. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.

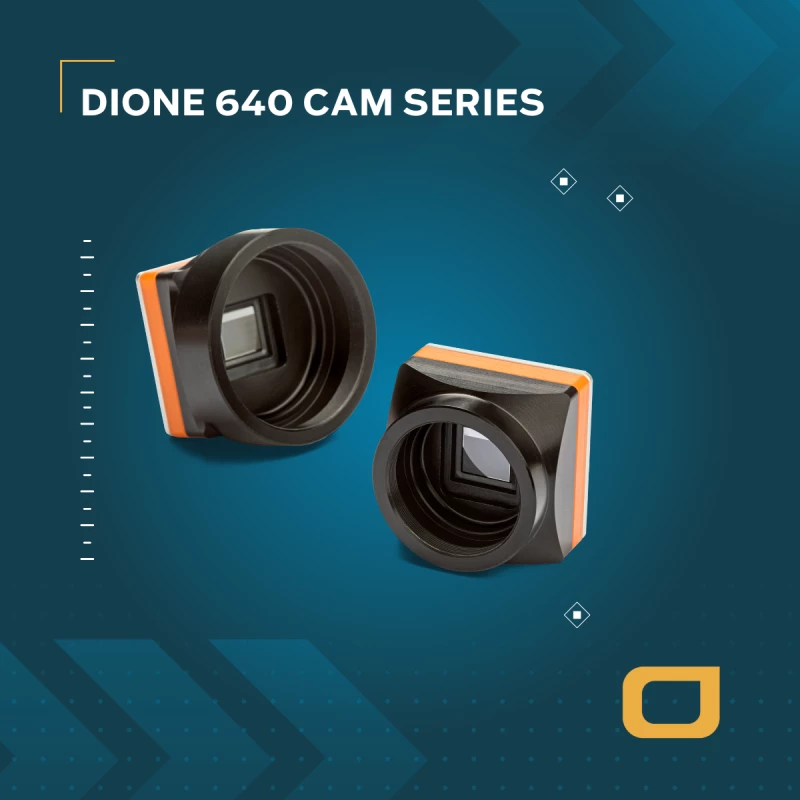

All Dione 640 versions have the same SAMTEC ST5 connector and are GenICam compliant. Dione 640 CAM is a LWIR uncooled thermal imaging SWaP module with housing supporting M24/M34 lens (optional).
The ultra-compact Dione 640 series find application in safety and security systems, as well as in industrial thermal imaging systems.
Click here to learn more about the Dione 640 OEM Series.
Click here to learn more about the Dione 640 CAM Series.
Dione 640 OEM & CAM Series
Specifications |
|
|---|---|
| Camera Type: | Security, Other |
| Array Type: | Microbolometer |
| Spectral Band: | 8-14um |
| # Pixels (Height): | 480 |
| # Pixels (Width): | 640 |
| Pixel Pitch: | 12 um |
| Array Cooling: | Uncooled |
Features
- State-of-the-art 640×480 microbolometer detector with 12 μm pitch
- Low SWaP (Size, Weight and Power)
- GenICam compliant
- Shutterless and uncooled operation
- Availability of multiple lenses (optional) adds flexibility to integration programs - for Dione 640 CAM series
Applications
- Safety & Security
- Transportation
- Process Monitoring
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Belgium
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The Dione 640 OEM & CAM series have a resolution of 640x480 pixels.
The NETD of the Dione 640 OEM & CAM series is less than 40 mK (available upon request) or 50 mK.
The Dione 640 OEM & CAM series are lightweight and small, with a compact form factor of 25 x 25 x 10 mm3.
The Dione 640 OEM & CAM series are suitable for safety and security systems, as well as industrial thermal imaging systems.
The features of the Dione 640 OEM & CAM series include a state-of-the-art microbolometer detector, low SWaP (Size, Weight and Power), GenICam compliance, and shutterless and uncooled operation.
