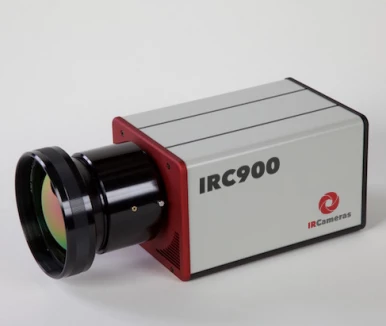

IRC906 MID WAVE INFRARED CAMERA
Description
The technologically advanced IRC906 science grade camera utilizes an Indium Antimonide (InSb) focal plane array (FPA) and provides unmatched sensitivity and ultra-low noise with no blooming or crosstalk. The IRC906 operates at up to 119 frames per second full frame, (475 Hz full frame with HS) and supports sub windowing for even higher frame rates. The IRC906 features 640 x 512 pixel resolution at full window size, and includes Camera Link, Gigabit Ethernet and HDMI outputs. The IRC906 is the perfect choice for the most demanding MWIR imaging applications including materials evaluation, quality assurance and spectroscopy.
IRC906 MID WAVE INFRARED CAMERA
Specifications |
|
|---|---|
| Camera Type: | Industrial, Scientific |
| Array Type: | InSb |
| Spectral Band: | 1.0-5.3um |
| # Pixels (Height): | 640 |
| # Pixels (Width): | 512 |
| Pixel Pitch: | 20 um |
| Array Cooling: | Cooled |
Features
640 x 512 closed-cycle Stirling cooled InSb sensor
<1 μm to >5 μm spectral range
NEdT <20 mK
<!--20-->119 Hz full window frame rate (475 Hz HS)
Motorized four position warm filter wheel option
Simultaneous CameraLink, GigE & HDMI outputs
Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The IRC906 camera has a spectral range of <1 μm to >5 μm.
The IRC906 camera operates at up to 119 frames per second full frame, and 475 Hz full frame with HS.
The IRC906 camera features 640 x 512 pixel resolution at full window size.
The IRC906 camera includes Camera Link, Gigabit Ethernet and HDMI outputs.
The IRC906 camera is suitable for the most demanding MWIR imaging applications including materials evaluation, quality assurance and spectroscopy.
