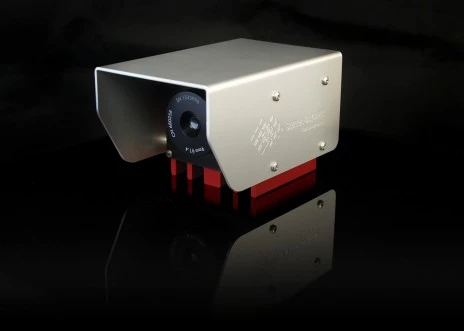

Sierra-Olympic\'s VIENTO 67-640 Thermal Camera
Description
The Viento 67-640 infrared camera by Sierra-Olympic Technologies is a rugged, cost effective thermal imager designed for outdoor use in perimeter surveillance, robotics, and other outdoor rugged applications. The Viento 67-640 is a fixed focal length, fixed mount thermal imaging solution offering standard NTSC/PAL composite video output as well as uncompressed digital output for applications requiring full-fidelity data transmission. The camera is suitable for careful object detection, object classification, slew-to-cue, and other processor-interface applications such as motion detection and analysis and enhanced image processing. The Viento 640-67 is designed to be installed outdoors and operate in wet, dusty, difficult conditions. The Viento 67-640 utilizes a 640x480 resolution array with 17um pixels. The camera is based on the industry-leading technology from DRS Commercial Infrared Systems. Viento 67-640 includes automatic image normalization with an integrated shutter for perfect image performance every time. The Viento 67-640 features Image Contrast Enhancement (ICE™) for scenes with low thermal contrast. Multiple lens options from wide 90 deg HFOV to narrow 6 deg HFOV are offered.
Sierra-Olympic\'s VIENTO 67-640 Thermal Camera
Specifications |
|
|---|---|
| Camera Type: | Industrial, Security, Military |
| Array Type: | Vanadium Oxide (VOx) Microbolometer |
| Spectral Band: | 8-14um |
| # Pixels (Height): | 480 |
| # Pixels (Width): | 640 |
| Pixel Pitch: | 17 um |
| Array Cooling: | Uncooled |
Features
Additional features include custom lens calibration options, color palettes (on digital only), digital zoom and scroll. The Viento 67-640series cameras are exportable under ECCN 6A003.b.4.b for 30Hz versions, and 6A003 for 9Hz versions. Contact Sierra-Olympic or your own export compliance officials for details.
Applications
Industrial imaging
Security applications
Rugged military imaging
Robotics
Traffic management
Maritime imaging
Thermal imager for industrial applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The Viento 67-640 Thermal Camera is designed for outdoor use in perimeter surveillance, robotics, and other outdoor rugged applications.
The Viento 67-640 Thermal Camera utilizes a 640x480 resolution array with 17um pixels.
The Viento 67-640 Thermal Camera includes automatic image normalization with an integrated shutter for perfect image performance every time. The Viento 67-640 features Image Contrast Enhancement (ICE™) for scenes with low thermal contrast. Multiple lens options from wide 90 deg HFOV to narrow 6 deg HFOV are offered. Additional features include custom lens calibration options, color palettes (on digital only), digital zoom and scroll.
Yes, the Viento 67-640 Thermal Camera is designed to be installed outdoors and operate in wet, dusty, difficult conditions.
The Viento 67-640series cameras are exportable under ECCN 6A003.b.4.b for 30Hz versions, and 6A003 for 9Hz versions. Contact Sierra-Olympic or your own export compliance officials for details.
