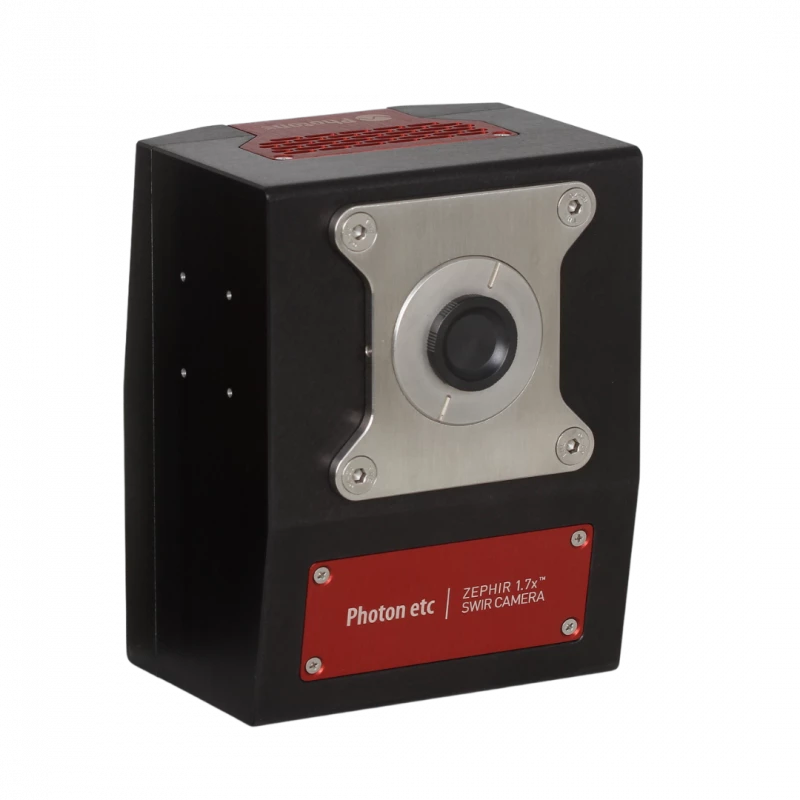

ZEPHIR 1.7 - SWIR camera 900-1700 nm
Description
The ZephIR 1.7 is a high-end, scientific-grade InGaAs camera that combines performance with reliability. It has extremely low noise levels, high efficiency, and a rapid frame rate compatible with an external trigger. This is made possible by combining our state-of-the-art control electronics and a four-stage thermoelectric cooler (TEC) which can maintain an operating temperature as low as -80 °C. The TEC uses forced air cooling that alleviates the need for a water or liquid nitrogen chiller unit, increasing reliability and is designed to last for years.
The ZephIR 1.7 stands out as one of the market's most reliable SWIR InGaAs cameras, boasting an exceptional sensitivity level, all while offering a high-end experience that remains affordable.
ZEPHIR 1.7 - SWIR camera 900-1700 nm
Specifications |
|
|---|---|
| Camera Type: | Industrial, Scientific |
| Array Type: | InGaAs |
| Spectral Band: | 0.9-1.7um |
| # Pixels (Height): | 640 |
| # Pixels (Width): | 640x512 |
| Pixel Pitch: | 15 um |
| Array Cooling: | Cooled |
| Quantum Efficiency: | 85 % |
| Cooling: | 4 stages TEC |
| Operating Temperature: | -80 °C |
| Frame Rate: | 250 FPS |
| Dark Current: | 150 ē/px/s |
| Readout Noise: | 28 (high gain) ē |
| Digitization: | 14 bits |
| Computer Interface: | CameraLink™ (dual), USB3.0 |
| Physical Dimensions: | 169 x 130 x 97 mm |
| Weight: | 2.9 kg |
Applications
ZephIR 1.7 Applications Overview
- NIR-II/SWIR Bio-imaging
- Photovoltaics characterization by photoluminescence (PL) and electroluminescence (EL) using SWIR imaging
- Semiconductor wafer and device failure SWIR inspection
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The ZephIR 1.7 SWIR camera has two models with different spectral ranges: ZephIR 1.7x has a spectral range of 0.50- 1.70 µm and ZephIR 1.7s has a spectral range of 0.90 - 1.70 µm.
