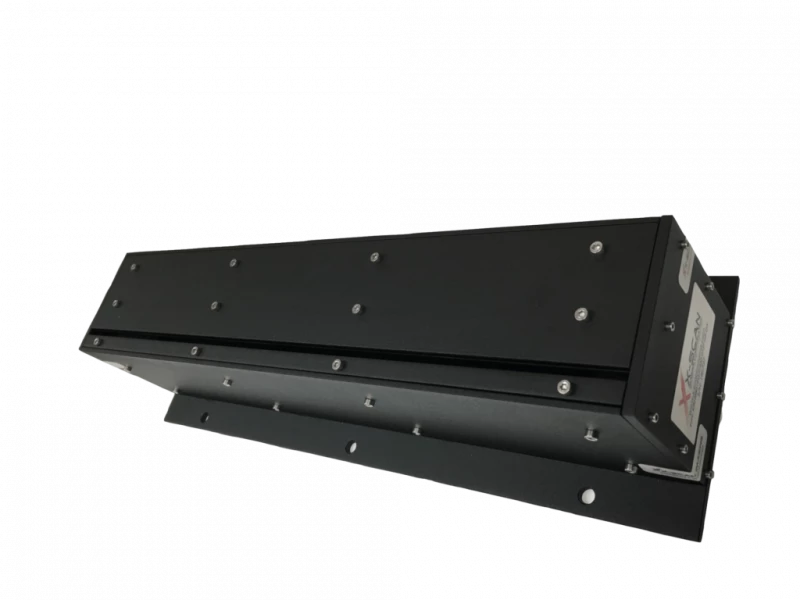

Crane High Energy X-Ray Line Scan Detector
Description
X-Scan’s XIH8800 Line – Scan Cameras are designed for high-energy x-ray and gamma-ray scanning applications ranging from 100 KeV to 15 MeV energy levels. High-energy accelerators, collimators, and detectors such as the XIH8800 are required to image large, dense objects such as metal castings and steel objects whose thickness can range from 1 to 12 inches. Fan-beam collimation minimize the scattering that limits image contrast. A clever compact design combines scintillation (for conversion of high-energy photons to visible light) and fiber optics for conveying the visible light to a shielded off-axis linear imaging photodiode array. A tungsten housing shields the diode array and camera electronics against scatter and ensures long-life reliability under extreme radiation conditions.
The GigE interface option featuring long cable lengths is recommended for high-energy applications. The XIH8800 camera module includes a camera unit, software development kit, power adapter and cabling. An optional frame-grabber which can be installed in the computer is also available.
Crane High Energy X-Ray Line Scan Detector
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| Detection Method: | Indirect Detection |
| # Pixels (Width): | .05 to 1.6mm |
| # Pixels (Height): | .05 to 2.4 |
| Pixel Size (Square): | Detector dependent um |
| Bit Depth: | 16 bit |
| Full Frame Rate: | Varies fps |
| X-Ray Energy Range: | 160000-15000000eV |
Applications
Inspection of large, dense objects in automotive, aerospace, and defense applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The energy range of the XIH8800 Line-Scan Cameras is from 100 KeV to 15 MeV.
The recommended applications for the XIH8800 Line-Scan Cameras include inspection of large, dense objects in automotive, aerospace, and defense industries.
The XIH8800 Line-Scan Cameras have a tungsten housing which shields the diode array and camera electronics against scatter and ensures long-life reliability under extreme radiation conditions.
The GigE interface option, featuring long cable lengths, is recommended for high-energy applications.
The XIH8800 camera module includes a camera unit, software development kit, power adapter, and cabling. An optional frame-grabber is also available for installation in the computer.
