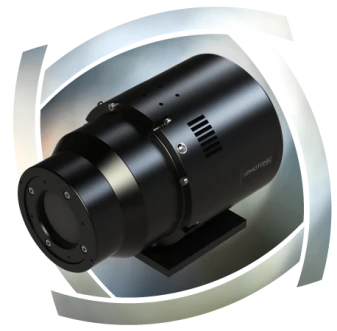

X-Ray FDS Detector 1.41MP
Description
The X-ray FDS is a high resolution (1392×1040 pixels), X-ray digital detector with direct coupled (micro) fiber-optic input that protects the sensor against radiation damage. The detector offers up to 50mm x 40mm active area and 6 megapixel resolution. A custom scintillator is deposited onto the camera in order to allow 12keV up to 300keV. Array versions with multiple modules are also available, delivering up to 24 megapixel resolution. The X-ray FDS 6.02MP delivers up to 1.5 fps full resolution or 6 fps in binning 2 x 2 allowing real time acquisition routine. A built in shutter allows smear free, shutterless acquisition even with exposure time down to microsecond range. Frame rate of >10 fps can be achieved when used in local sub area mode or line scan mode. A device server driver control allows remote aquisition through existing GUI interface.The cameras have a native 14-bit acquisition mode and 18-bit extended dynamic range mode.
X-Ray FDS Detector 1.41MP
Specifications |
|
|---|---|
| Sensor Type: | Phosphor Coated CMOS |
| Detection Method: | Direct Detection |
| # Pixels (Width): | 1360 |
| # Pixels (Height): | 1040 |
| Pixel Size (Square): | 6.45 um |
| Bit Depth: | 14 bit |
| Full Frame Rate: | 25 fps |
| X-Ray Energy Range: | 1000-300000eV |
Features
Input sizes: single module 67 x 67mm
Array Sizes: multiple modules 134 x 134mm / 268 x 67mm
Scintillator Gadox: Tb for operation from 1-55 keV, structured CSI scintillator from 20-300 keV
Simultaneous integration / readout enabling 100% duty cycle acquisition
OEM versions available
Applications
X-ray microtomography
X-ray PCB testing
Phase contrast imaging
X-ray source qualiication
X-ray radiography
X-ray Coherent diffraction imaging
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
Yes, a device server driver control allows remote acquisition through existing GUI interface.
The X-ray FDS Detector offers up to 50mm x 40mm active area and 6 megapixel resolution.
The X-ray FDS 6.02MP delivers up to 1.5 fps full resolution or 6 fps in binning 2 x 2 allowing real time acquisition routine.
The X-ray FDS Detector has a high resolution of 1392×1040 pixels.
A custom scintillator is deposited onto the camera in order to allow 12keV up to 300keV.
