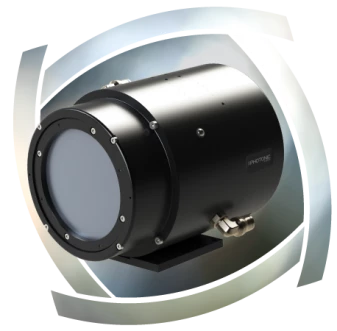

X-Ray sCMOS 16MP Detector
Description
The sCMOS 16MP Detector offers up to 95.5mm x 95.5mm active area and 16 megapixel resolution. A custom scintillator is deposited onto the camera in order to allow 1keV up to 300keV. Array versions with multiple modules are also available, delivering up to 64 megapixel resolution. The X-ray sCMOS detector delivers up to 4.5 fps full resolution and 18 fps in binning 2 x 2 allowing real time acquisition routine. A built in shutter allows smear free, shutterless acquisition even with exposure time down to millisecond range. Frame rate of >10 fps can be achieved when used in local sub area mode or line scan mode. A device server driver control allows remote acquisition through existing GUI interface. The detectors have a native 16-bit acquisition mode.
X-Ray sCMOS 16MP Detector
Specifications |
|
|---|---|
| Sensor Type: | Phosphor Coated CMOS |
| Detection Method: | Direct Detection |
| # Pixels (Width): | 4096 |
| # Pixels (Height): | 4096 |
| Pixel Size (Square): | 9 um |
| Bit Depth: | 16 bit |
| Full Frame Rate: | 4.5 fps |
| X-Ray Energy Range: | 1000-300000eV |
Features
Input sizes: single module 95.5 x 95.5mm
Array Sizes: multiple modules 191 x 191mm / 382 x 95.5mm
Scintillator Gadox: Tb for operation from 1-55 keV, structured CSI scintillator from 20-300 keV
Simultaneous integration/readout enabling 100% duty cycle acquisition
OEM versions available
Applications
X-ray microtomography
X-ray PCB testing
Phase contrast imaging
X-ray source qualifi cation
X-ray radiography
X-ray coherent diffraction imaging
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
Yes, a device server driver control allows remote acquisition through existing GUI interface.
The sCMOS 16MP Detector offers up to 95.5mm x 95.5mm active area.
The sCMOS 16MP Detector delivers up to 4.5 fps full resolution and 18 fps in binning 2 x 2 allowing real time acquisition routine.
The input size of the sCMOS 16MP Detector is 95.5 x 95.5mm for a single module and 191 x 191mm / 382 x 95.5mm for multiple modules.
The sCMOS 16MP Detector has a resolution of 16 megapixels.
