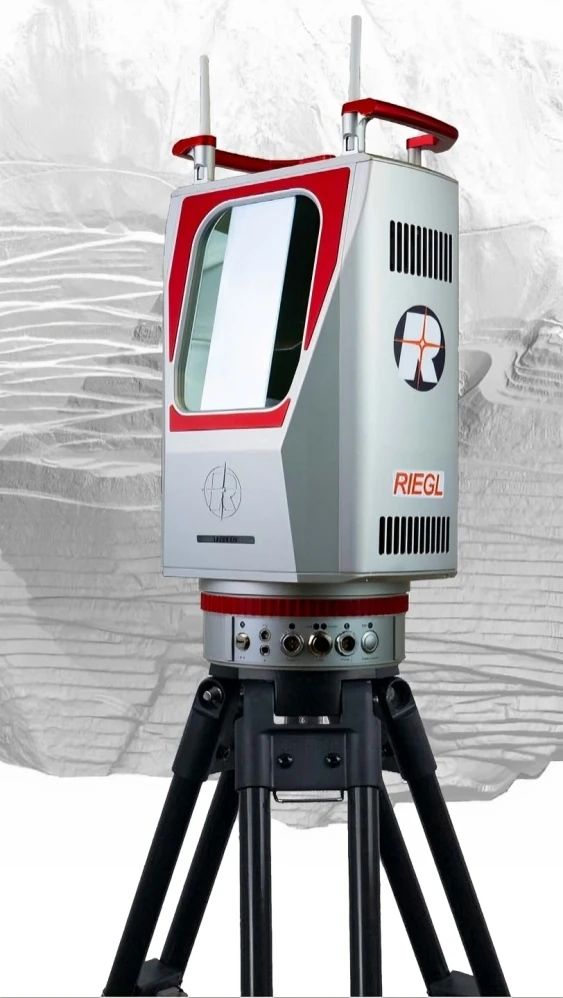

RIEGL VZ-4000i-25 Long Range Terrestrial Laser Scanner
Description
With the VZ-4000i-25 RIEGL now present the long-range version scanner of their latest generation of professional terrestrial laser scanners. It stands for an increase in productivity, reliability in performance, extreme versatility and new forms of connectivity– resulting in an excellent return of investment.
On-board processing, one-touch-button operation, customized workflows and pre-settings, as well as real-time registration enabled by GNSS/IMU provide a fast and efficient workflow from data acquisition to post-processing results. This scanner provides remarkable long-range performance of up to 4,600 m at eye safe operation in laser class 1. The IP64 certification ensures that it can be used in harsh environments. RIEGL’s Ultimate LiDAR technology provides multiple-target capability and valuable data attributes for every measurement. The versatility of the scanner allows the use in various applications and survey routines. An internal camera, internal IMU for pose estimation, an optional external GNSS RTK receiver, support for user apps, and pre-installed RIEGL apps are further key features. Integrated WiFi, high-speed data download via TCP/IP, automatic and fast data transfer with CF-express card, cloud data synchronization via internet and exchange formats for further analysis provide brilliant connectivity.
For operating the scanner and for data processing, RIEGL offers the well-established software package RiSCAN PRO. Different license levels and plugin module licenses allow an adaption to the user specific requirements.
Special software packages and tools - like RiPANO, that allows to explore your project and to extract plots in your browser - are additionally offered.
For geotechnical analysis of scanned rock surfaces, RIEGL provides the LIS GeoTec Plugin. It facilitates the calculation of surface normal for a local neighborhood. These surface normals are further analyzed to detect clusters of pre-dominant surface orientations, which are used for data classification and visualization on a polarplot diagram.
Additionally, RIEGL presents four apps for the 3D terrestrial laser scanners of the VZ-i series, which allow real-time analysis and data processing in diverse monitoring applications, among others in land slide monitoring but also in open pit mining operations. Based on reliable real-time data, the Monitoring App, the Monitor+ App, the Design Compare App and the Slope Angle App enable prompt necessary decisions in critical situations. More details about our apps can be found here.
RIEGL VZ-4000i-25 Long Range Terrestrial Laser Scanner
Specifications |
|
|---|---|
| Maximum Measurement Range: | 4600 m |
| Minimum Measurement Range: | 5 m |
| Measurement Rate: | -- meas./sec |
| Accuracy: | ±15 mm |
| Precision: | 10 mm |
| Laser Classification: | Class 1 (eye-safe, IEC 60825-1:2014) |
| Scan Angle: | Vertical: 60° (+30°/-30°), Horizontal: 360° |
| Scan Speed: | Up to 14,400 °/sec |
| Camera: | 12 MP CMOS, ~5000 MPixel resolution for panoramic imaging |
| Storage: | Integrated SSD (2 TB) and CF-Express card (512 GB, 1 TB optional) |
| Connectivity: | WiFi, TCP/IP, Cloud (Amazon S3, Microsoft Azure), ROS compatibility |
| Operating Temp: | -10 to +40 °C |
| Power Consumption: | Typical: 75 W; Max: 90 W |
| Protection: | IP64 (dust and splash-proof) |
| Weight: | 13 kg |
| Dimensions: | 244 x 456 x 213 mm |
Features
- superior long range performance up to 4600 m
- extremely fast data acquisition
- straight-forward on-board processing
- one-touch button operation
- customized workflows and settings
- pre-installed RIEGL apps
- prepared for user specific Python apps
- internal IMU for pose estimation
- internal camera
- integrated WiFi
- high speed data download and transfer
- eye safe operation (Laser Class 1)
- especially for harsh environment (IP64 certified)
Applications
- Surveying and Monitoring in Mining
- Topography (DEM/DTM generation, risk assessment, and spatial analysis)
- Cultural Heritage Documentation
- Natural Heritage Documentation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Austria
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The scanner provides superior long-range performance, with a maximum range of up to 4600 meters for natural targets with 90% reflectivity.
Yes, the device is IP64 certified, making it dust- and splash-proof, and capable of reliable operation in challenging conditions.
The scanner is classified as a Class 1 Laser Product, ensuring eye-safe operation in accordance with IEC 60825-1:2014.
It supports integrated WiFi, high-speed data transfer via TCP/IP (up to 500 MB/sec), cloud synchronization, and exchange formats for seamless integration.
Yes, it features real-time registration enabled by an internal IMU/GNSS and on-board processing for automatic scan data registration as a background process.
The scanner is suitable for mining (surveying, monitoring, planning), cultural and natural heritage documentation, landscape modeling, and customized workflows through user-specific Python apps.
The device includes a 2TB integrated SSD and supports a removable CF-Express card (512 GB standard, 1TB optional) for high-speed data transfer.
It can connect to up to three independent power sources simultaneously, including optional rechargeable Li-Ion and NiMH batteries, for uninterrupted operation.
The RIEGL VZ-4000i25 operates effectively between -10°C and +50°C. With preheating, it can scan continuously at temperatures as low as -20°C and for short durations at -40°C.
It includes an integrated 12 MP CMOS color camera capable of capturing panoramic images (60° x 360°) with a resolution of approximately 5000 MPixels.
