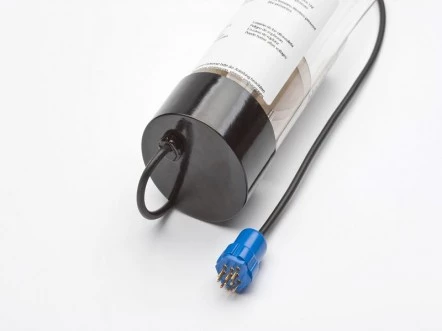

50mm Standard Hollow Cathode Lamp
Description
The Heraeus hollow cathode lamp product range comprises 70 single-element lamps and more than 120 multi-element lamps of the most varied designs to cover almost all appliances.
The Heraeus catalogue includes 70 single-element lamps in standard 37 mm (1.5 inch) and 50 mm (2 inch) diameters to fit almost any AA instrument. All cathode materials are selected from the highest purity available – usually 99.99 % or better – to ensure high spectral line intensity, stability and low noise with good analytical sensitivity. The window material is selected to achieve the optimum transmission of the primary spectral lines of the cathode element. Borosilicate glass is used for wavelengths over 350 nm, and high quality quartz for shorter wavelengths.
Standard 50 mm Lamps
Perkin Elmer Instruments are unique in requiring hollow cathode lamps with a 2” (50 mm) diameter, and a dedicated electrical connector. Heraeus has developed a full ran- ge of such lamps for direct use in Perkin Elmer instruments utilising the long established features of our standard range but making the necessary processing changes to ensure they are entirely compatible to these instruments.
50mm Standard Hollow Cathode Lamp
Specifications |
|
|---|---|
| Type Of Lamp: | Deuterium and Tungsten Halogen |
| Parameters: | Vary by Element |
Features
- Non-data coded for all instruments requiring a 2" lamp.
Applications
Hollow cathode lamps are gas discharge devices in which the discharge is highly constrained within the cathode of a specific metal. The resultant output is a unique line spectrum, the most intense of which are suitable for highly specific and sensitive metals analysis. Further derivatives of the fundamental technology extend the applications to include:
- Atomic Absorption Spectroscopy (AAS)
- Atomic Fluorescence Spectroscopy
- Multi wavelength laser tuning
- Laser output stabilisation (optogalvanic effect)
- Multi component analysers
- Environmental analysers
- Medical analysers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
All cathode materials are selected from the highest purity available – usually 99.99 % or better – to ensure high spectral line intensity, stability and low noise with good analytical sensitivity. The window material is selected to achieve the optimum transmission of the primary spectral lines of the cathode element.
The applications of hollow cathode lamps include atomic absorption spectroscopy (AAS), atomic fluorescence spectroscopy, multi wavelength laser tuning, laser output stabilisation (optogalvanic effect), multi component analysers, environmental analysers, and medical analysers.
The Heraeus hollow cathode lamp product range comprises 70 single-element lamps and more than 120 multi-element lamps of the most varied designs to cover almost all appliances.
A hollow cathode lamp is a gas discharge device that produces a unique line spectrum of a specific metal.
The standard 50mm lamps are non-data coded for all instruments requiring a 2" lamp.
