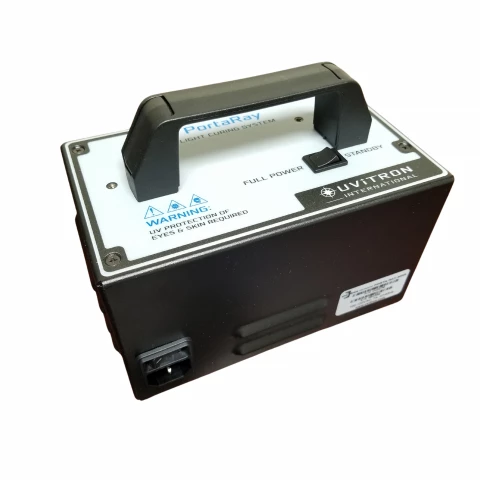

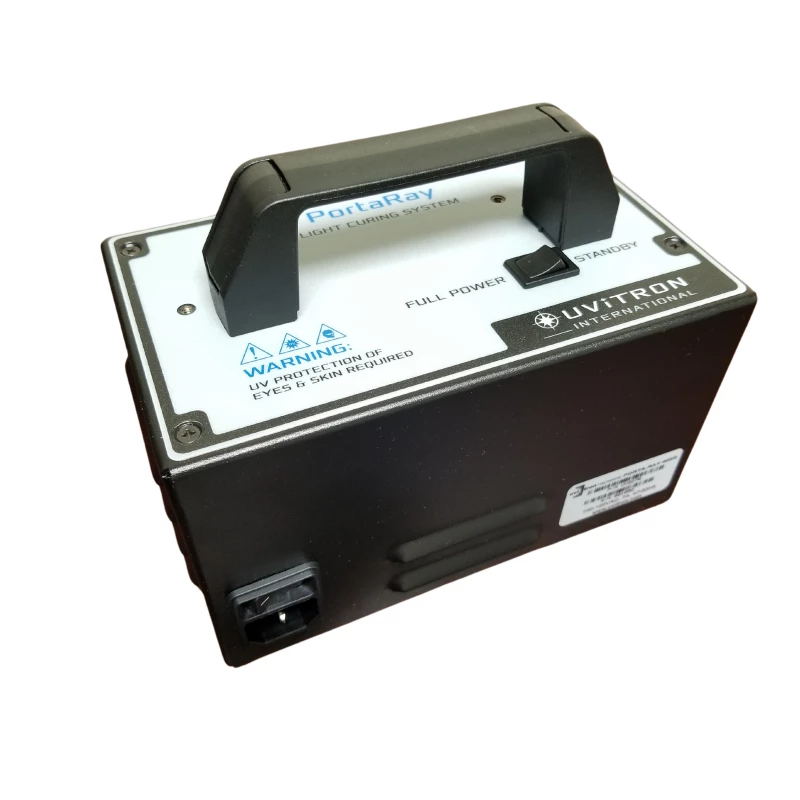

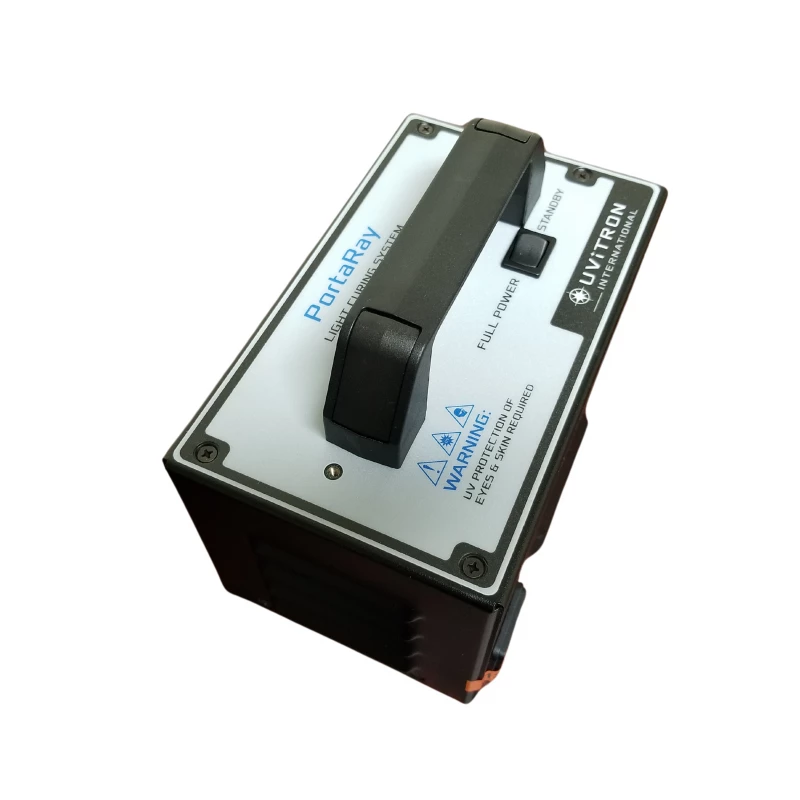

PortaRay: Portable, Lightweight UV Curing System
Description
A portable, lightweight, versatile UV curing system, the PortaRay can handle a variety of UV and visible light curing applications. With an effective curing area of up to 5 x 5″, it is ideal for curing small parts. Weighing in at a mere 3 lbs., the system is also perfect for applications where frequent transportation is involved.
Included with the system is an enclosed headrest for holding the lamp head and providing light-shielding during idle periods. An optional latched bottom accessories box is also available for storage and transportation of the headrest, UV glasses, power cord and adhesives. The lamp head can be used for handheld curing operations, or it can be mounted to a stand, conveyor, machine, fixture or robot. Due to its simple yet high-tech design, the PortaRay is extremely user-friendly and reliable, requiring virtually no learning curve or setup time.
PortaRay: Portable, Lightweight UV Curing System
Specifications |
|
|---|---|
| Wavelength: | 320 - 390 nm |
| Light Source Power: | 400 W |
| Curing Area: | 5 x 5" |
| Size: | 8 x 5 x 6 |
Features
Fully integrated lamp head: The hand-held lamp head is fully self-contained and includes an extra long-life 400W arc lamp, which emits evenly distributed UVA, UVB or visible light. The unit’s arc lamp is powered by the state-of-the-art UV Power-Plus Lamp Driver. The typical lamp life is 2,000 hours. The lamp reflector is available as a parabolic 5 x 5″ type for uniform, larger area curing, or optionally as a focused (circular) 5 x 3″ type for higher intensity curing of smaller areas.
Lamp power regulation: The system’s switch mode power supply maintains constant lamp power regardless of variations in AC line input or lamp voltages. This regulation provides for repeatable curing times and longer lamp life.
Standby mode: The unit features a standby mode rocker switch, which reduces lamp power by one-half. This mode can be used to reduce heat and stray UV light output while the system is not in use.
Two AC line input versions: The system is available in 90–132VAC and 180–265VAC input voltage ranges that make it compatible for use worldwide.
Forced air cooling: An integrated cooling fan in the lamp head ensures cool operation and high system reliability.
